WHEEL BEARING KIT REAR 77-86 SUZ GS 750-1150, ALLBALLS 25-1270 ROAD

WHEEL BEARING KIT ALLBALLS 25-1270

Make your wheels roll like new with All Balls wheel bearing and seal kits
Each kit includes premium EMQ quality, high-speed bearings with low-draw, double-lip seals that improve grease retention while keeping out moisture and dirt
Wheel seals are type TC nitrile elastomer designed to keep out water and dirt; rubber-coated outside diameter for optimum sealing while the steel garter spring guarantees constant pressure on the axle shaft

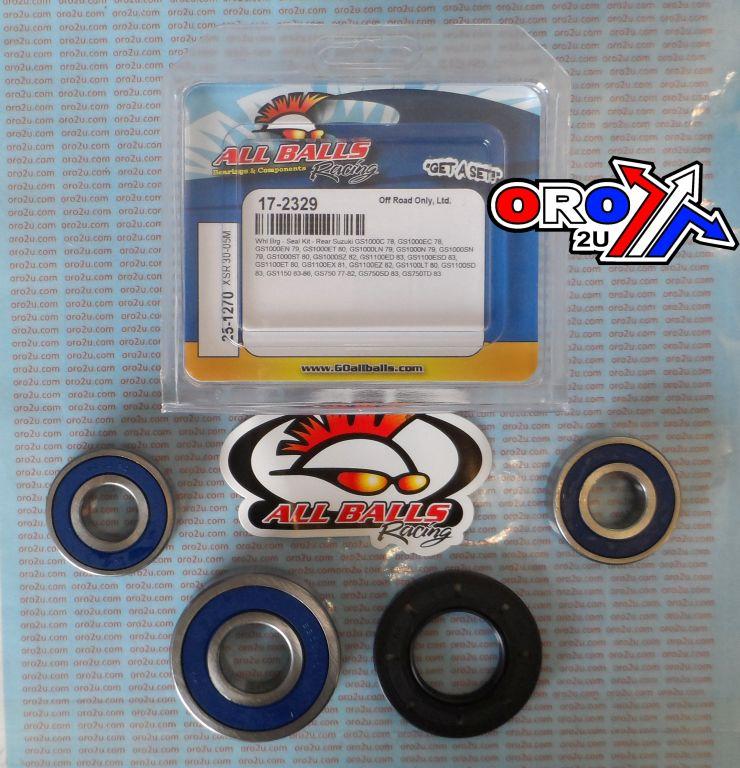

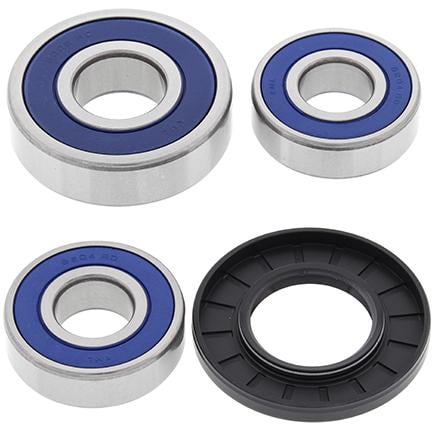

Kit Contents

• Description QTY per Kit
• Seal 1
• Ball Bearing 3

BEARING DIMENISIONS:

• Inside Bearing Diameter No. 1 and 2:     (2) 20mm .787 in. (6204)
• Outside Bearing Diameter No. 1 and 2:  (2) 47mm 1.850
• Inside Bearing Diameter No. 3:                       (1) 25mm .984 in. (6305)
• Outside Bearing Diameter No. 3:                   (1) 62mm 2.441

SEAL DIMENSIONS:

• Inside Seal Diameter No. 1:                                 (1) 33mm 1.292 in. (30-6201)
• Outside Seal Diameter No. 1:                             (1) 62mm 2.441 in.

MODEL FITMENT:

Wheel Bearing Kit Rear

Suzuki

• GS1000 78-79,
• GS1000E 78-80,
• GS1000L 79,
• GS1000S 79-82,
• GS1100E 80-83,
• GS1100ES 83,
• GS1100L 80,
• GS1100S 83,
• GS1150 83-86,
• GS750 77-82,
• GS750E 78,
• GS750L 79-81,
• GS750S 83,
• GS750T 83

Part No. 17-2329 (oro2u.com)
