VALVE STEM SEAL 5.0mm EACH, KIBBLEWHITE 71015-100, Kawasaki® ZX-10R(TM) 1988-1990 Kawasaki® ZX-11(TM)/ ZRX(TM) 1100/ 1200 1999-'05 Kawasaki® ZX-12R(TM)

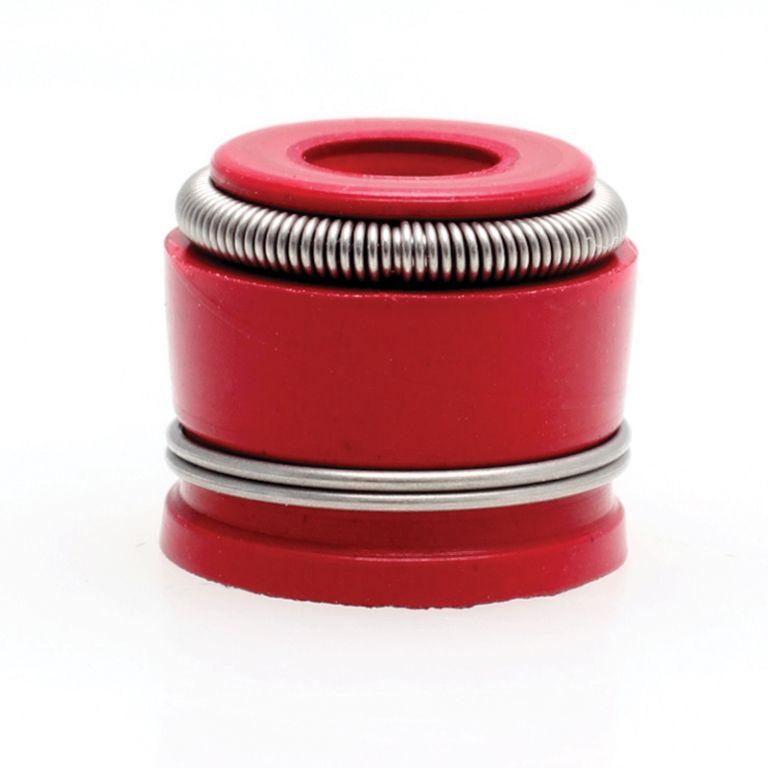

The KPMI® Red Viton® valve stem seal (Part No. 65-333.500.EACH) is a high-performance universal component designed for a variety of motorcycle and ATV applications. Manufactured from 100% Red Viton®, this seal is engineered to withstand extreme heat, corrosive combustion gases, and petroleum exposure while maintaining excellent sealing capabilities. It is the ideal choice for high-performance and racing environments where long-lasting durability and precise sealing are critical.

Features

• Made from premium 100% Red Viton® for high heat and chemical resistance

• Optimised for maximum valve lift and long service life

• Prevents oil intrusion into the combustion chamber

• Maintains elasticity and sealing under extreme conditions

• Designed for applications with a 5.0mm valve stem and 0.340" guide diameter

• Precision-engineered for reliable performance in racing and high-load applications

• Supersedes Part No. 65-3707

Specifications

• Material: Red Viton®

• Stem Diameter: 5.0 mm

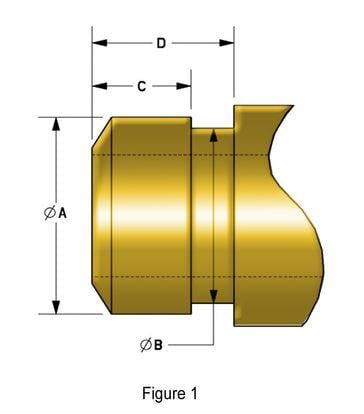

• Guide Diameter (A): 0.340" ± 0.005"

• Overall Length: 0.350"

• Seal Outer Diameter: 0.405"

• Measurement B: 0.303"

• Measurement C: 0.125"

• Measurement D: 0.230"

• Quantity: Sold individually (also available in packages of 100)

• OEM Reference Part Number: 09289-05011

Cross-Reference OEM Part Numbers

• 09289-05011

Vehicle Fitments

HONDA

• XR50 2000–2003

• CRF450R 2002–2008 (Exhaust Only)

• CRF450R 2009–2013

• CRF450X 2005–2013 (Exhaust Only)

KAWASAKI

• KLX400 2001–2006

• KFX400 2001–2006

• ZX-10R 1988–1990

• ZX-11 / ZRX 1100 / ZRX 1200 1999–2005

• ZX-12R 2000–2005

• ZX-14 2006–2011

• Kawasaki PWC 2006–2019

SUZUKI

• GS 750 E/ES/L/T 1980–1986 (5mm conversion)

• GSX-R 750 1980–1992

• GSX-R 1100 1986–1992

• GS 1150 1984–1986 (5mm conversion)

• GSX-1300R Hayabusa 1999–2019

Note
Use the provided diagram and specifications to confirm valve guide dimensions for a proper fit.
