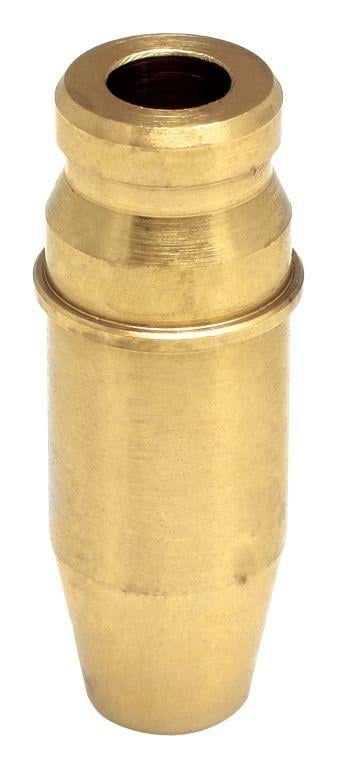

Guide, C630, EX STD, Various KTM® Applications

KTM 400 (Excl. LC) 2000-09
KTM 450 EXC 2002-07
KTM 520-560 2002-09

Kibblewhite # 96-96020 STD

Intake / Exhuast - G (Std. 0.4745?) C630 Bronze

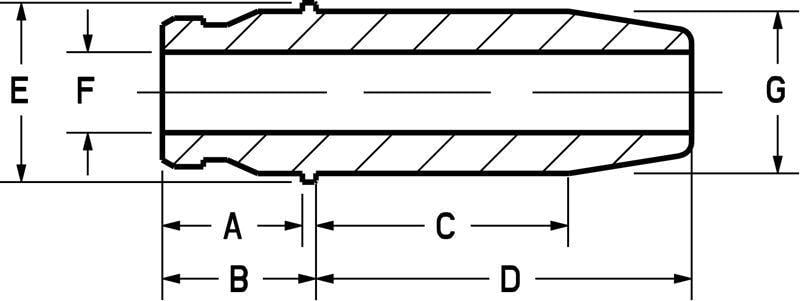

Dimensions:
A. 0.410 (10.42mm)
B. 0.450 (11.43mm)
C. 0.740 (18.81mm)
D. 1.100 (27.96mm)
E. 0.525 (13.34mm)
F. 0.2360 (5.99mm)

KTM® All RFS ATV Engines 450cc-525cc 2008-2009
KTM® All RFS Dirt Bike Engines 400cc-560cc 2000-2009

We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.

Part No. 65-904+000 (oro2u.com) EXHAUST Valve Guides STD.
