VALVE GUIDE INTAKE/EXHAUST, KIBBLEWHITE 60-60520, SUZUKI RMZ250 07-17
£16.85 GBP
Taxes included.

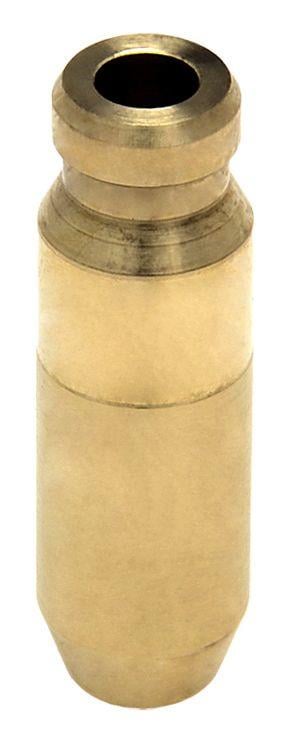

Guide, C630, IN/EX STD,
Suzuki RM-Z250 2007-2017
EXHAUST/INTAKE SUZUKI RM-Z250 2007-17,
Item # 60-60520, Valve Guides for Suzuki
Intake - G (Std. 0.3778) C630 Bronze

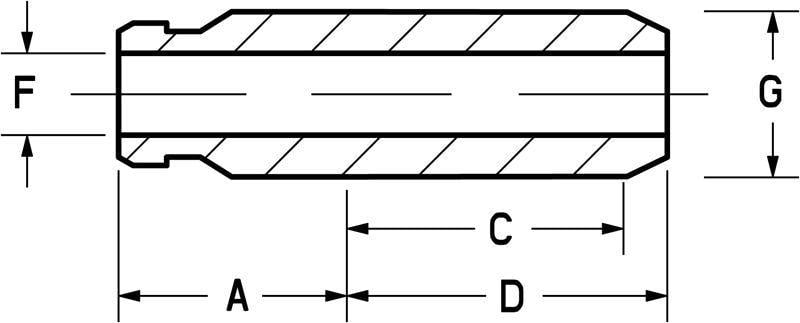

Dimensions:
A. 0.545 (13.85mm)
B. -------
C. 0.530 (13.47mm)
D. 0.700 (17.79mm)
E. 0.374 (9.50mm)
F. 0.1765 (4.48mm)
G. 0.3778 (9.60mm)
Please call for oversize Valve Guides
We choose to use the copper based C63000 nickel-aluminum
We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.
Part No. 65-932+000 (oro2u.com) Valve Guides STD.
| KPMI® Guide Sizing Tool Flyer Download | Click Here |
| KPMI® Seal Catalog Download | Click Here |
| Quantity | Pkg. of 1 |
| Material | C630 Bronze |
| Type | Intake / Exhaust |
| Outside Dia.: (G) | 0.3778 / Std. |
| A | 0.545 |
| B | 0.545 |
| C | 0.530 |
| D | 0.700 |
| E | 0.374 |
| F | 0.1765 |
