Guide, C630, IN/EX STD,
Kawasaki, KX 450F, 2009-2016

KAWASAKI
KX450F 2009 - 2014 EXHUAST/INTAKE,

Valve Guides STD.

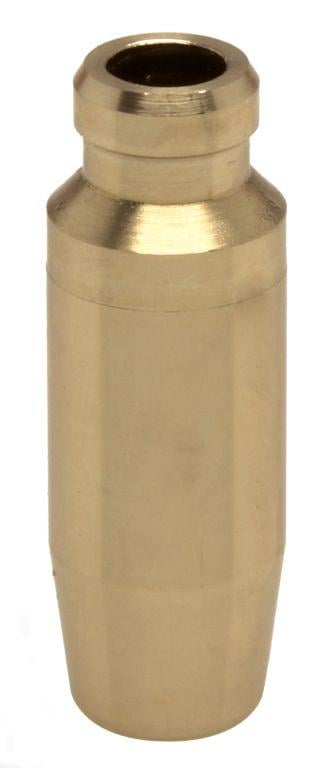

Item # 40-40670, Valve Guides for KAWASAKI
Intake - G (Std. 0.4365 Inc.) C630 Bronze

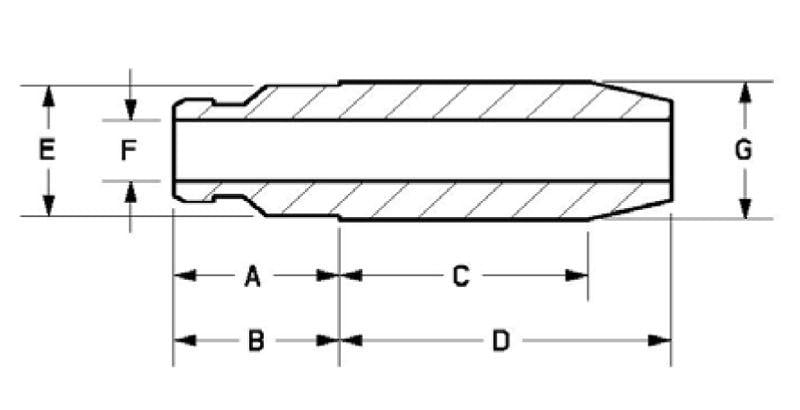

Dimensions:
A. 0.380 (9.65mm)
B. ------
C. 0.525 (13.34mm)
D. 0.760 (19.31mm)
E. 0.434 (11.03mm)
F. 0.2150 (5.46mm)
G. 0.4365 (11.09mm)

We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.

Part No. 65-955+000 (oro2u.com)
