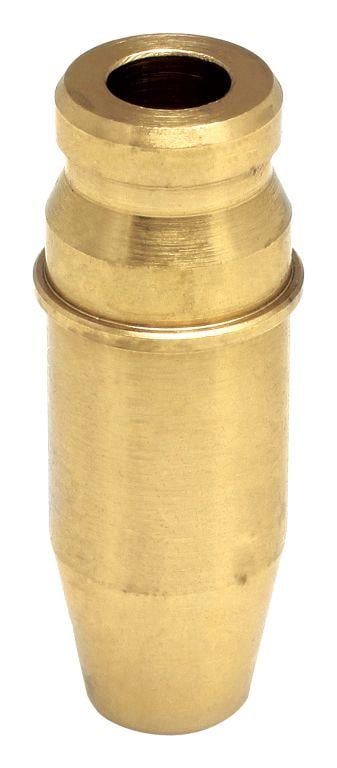

Guide, C630, IN STD, Various KTM® Applications

KTM 400 (Excl. LC) 2000-09
KTM 520-560 2002-09

Kibblewhite # 96-96010 STD
Intake - G (Std. 0.4745?) C630 Bronze

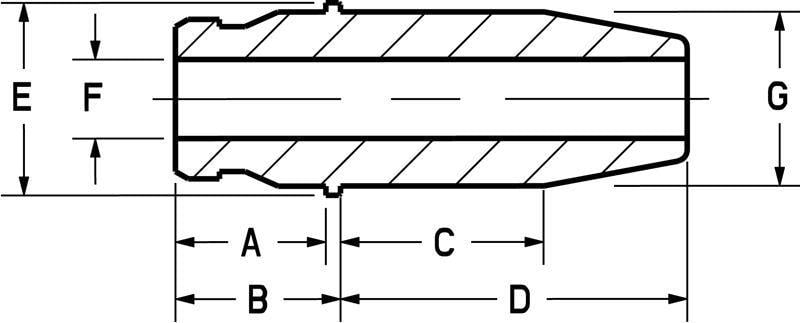

Dimensions:
A. 0.410 (10.42mm)
B. 0.450 (11.43mm)
C. 0.555 (14.10mm)
D. 0.945 (24.02mm)
E. 0.525 (13.34mm)
F. 0.2360 (5.99mm)
G. 0.4745 (12.06mm)

KTM® All RFS ATV Engines 450cc-525cc 2008-2009
KTM® All RFS Dirt Bike Engines 400cc-560cc 2000-2009

We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.

Part No. 65-903+000 (oro2u.com) Intake Valve Guides STD.
