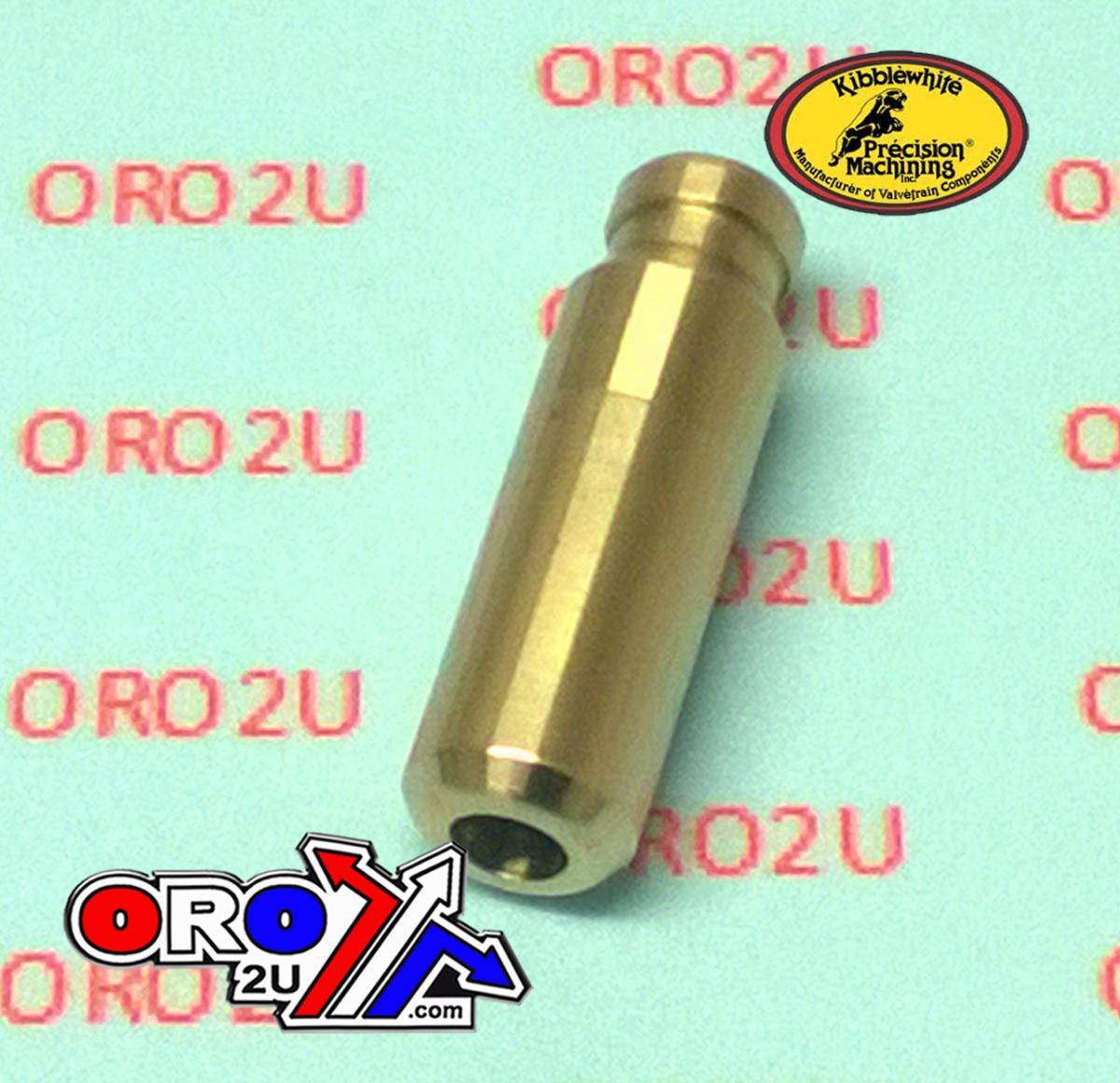

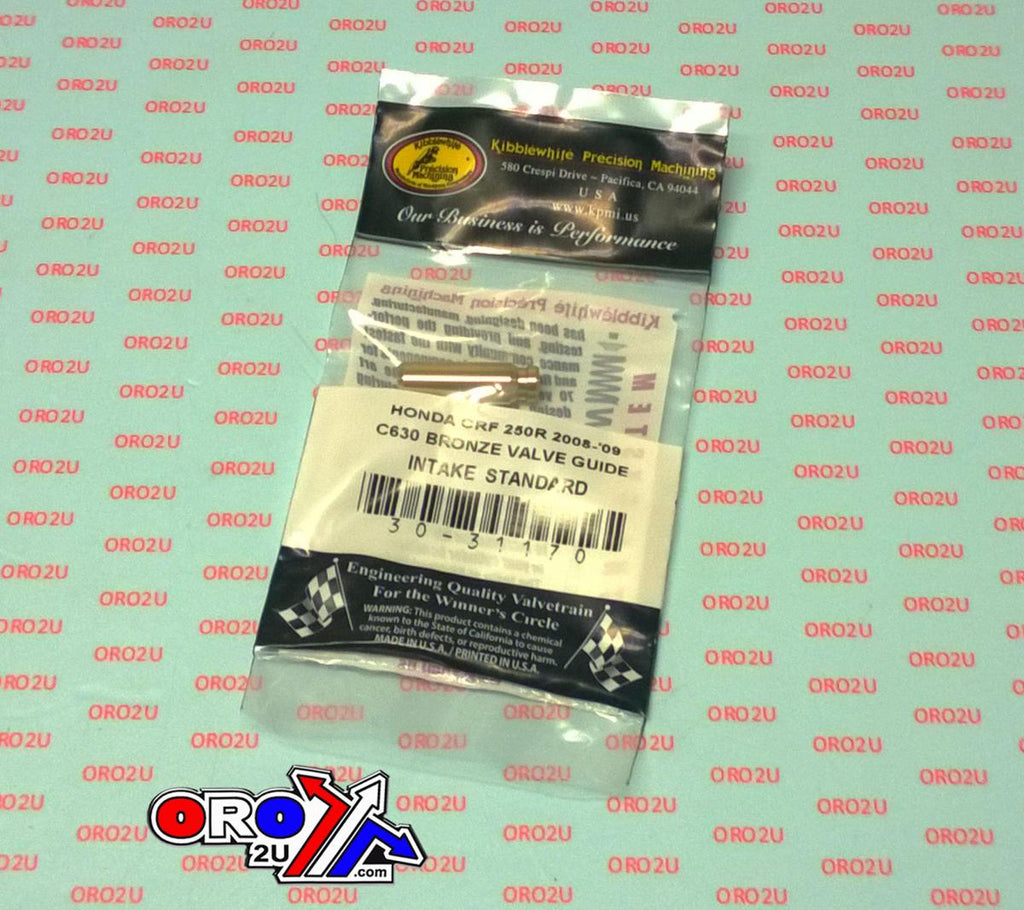

VALVE GUIDE INTAKE BRONZE STD, KIBBLEWHITE 30-31170, HONDA CRF250R 08-09
£16.85 GBP
Taxes included.
Guide, C630, IN STD,
Honda®, CRF™ 250R, 2008-2009
KIBBLEWHITE 30-31170
We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.
| KPMI® Guide Sizing Tool Flyer Download | Click Here |
| KPMI® Seal Catalog Download | Click Here |
| Quantity | Pkg. of 1 |
| Material | C630 Bronze |
| Type | Intake |
| Outside Dia.: (G) | 0.3965 / Std. |
| A | 0.540 |
| C | 0.710 |
| D | 0.770 |
| E | 0.394 |
| F | 0.1960 |
