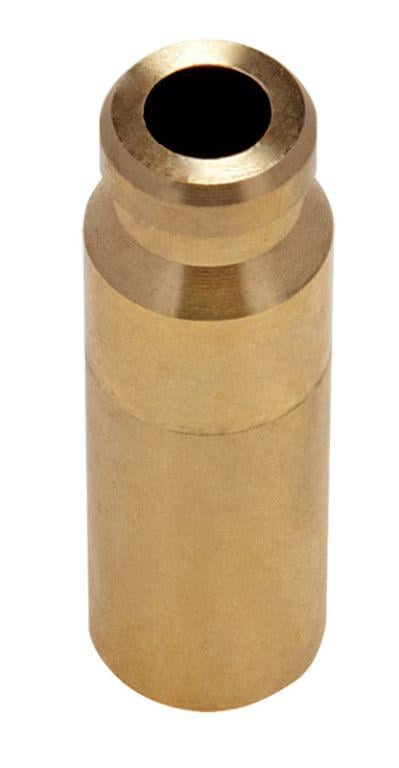

VALVE GUIDE INTAKE BRONZE STD, Honda CRF 250R 2004-2007 CRF 250X 2004-2017, KIBBLEWHITE 30-30610
£20.17 GBP
Taxes included.
Honda
CRF 250R 2004-2007
CRF 250X 2004-2017
Intake - G (Std. 0.3965 Inc.) C630 Bronze 30-30610

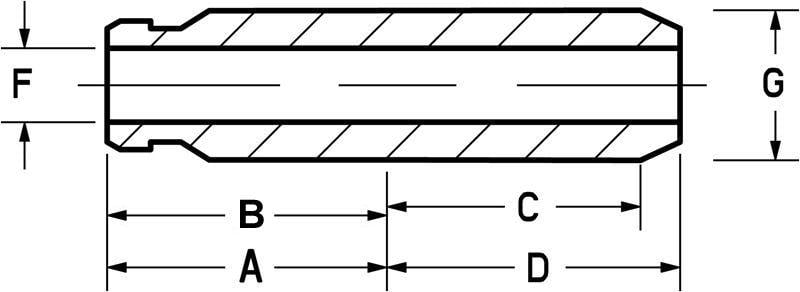

Dimensions:
A. 0.540 (13.72mm)
B. 0.540 (13.72mm)
C. 0.710 (18.04mm)
D. 0.770 (19.57mm)
E. 0.394 (10.01mm)
F. 0.1960 (4.98mm)
G. 0.3965 (10.07mm)
Please call for oversize Valve Guides
We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.
Part No. 65-918+000 (oro2u.com) Valve Guides STD.
