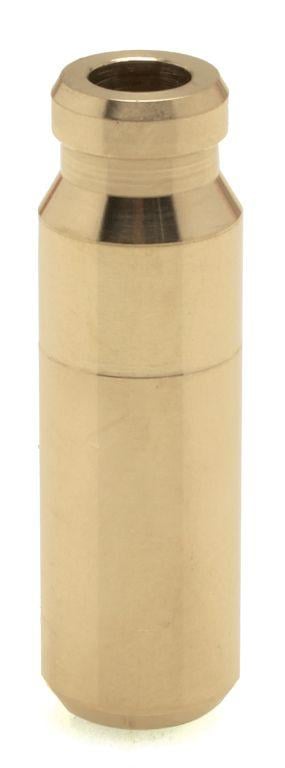

VALVE GUIDE EXHAUST BRONZE STD, KIBBLEWHITE 30-30180, HONDA XR650R 00-07

Part No. 65-926+000 (oro2u.com) Valve Guides STD.
Item # 30-30180, Valve Guides for Honda XR 650R 2000-2007
EXHAUST - G (Std. 0.4753) C630 Bronze

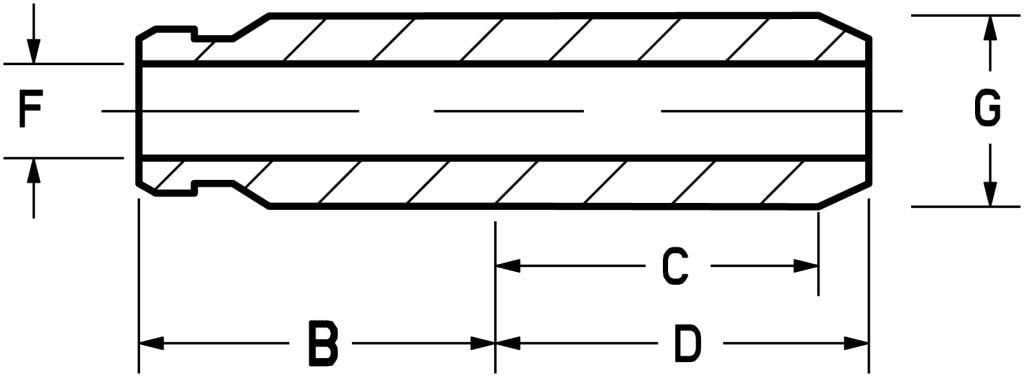

Dimensions:
A. 0.600 (15.25mm)

B. 0.600 (15.25mm)
C. 1.000 (25.40mm)
D. 1.230 (31.25mm)
E. 0.475 (12.07mm)

F. 0.2590 (6.58mm)
G. 0.4753 (12.08mm)
Please call for oversize Valve Guides
+ 0.001 Inc.
+ 0.002 Inc.
