UNIVERSAL JOINT CAN-AM/BOMB, ALLBALLS 19-1006, ATV800, 7020-290130 703000022 703000022 715500371 715900186 715900326

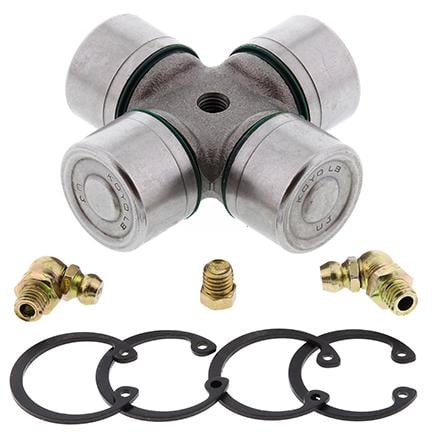

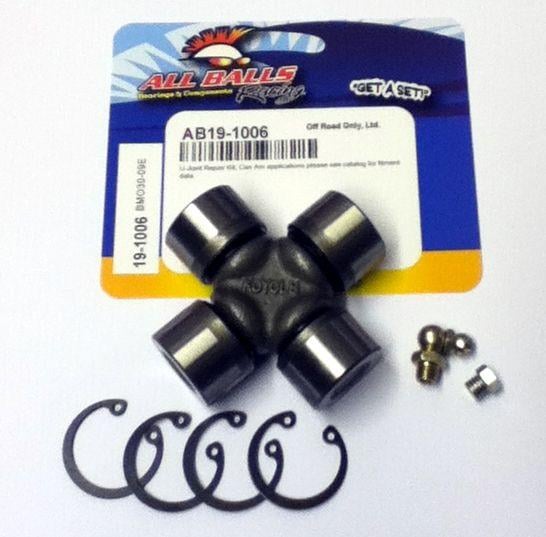

All Balls U-Joint Kit - 19-1006

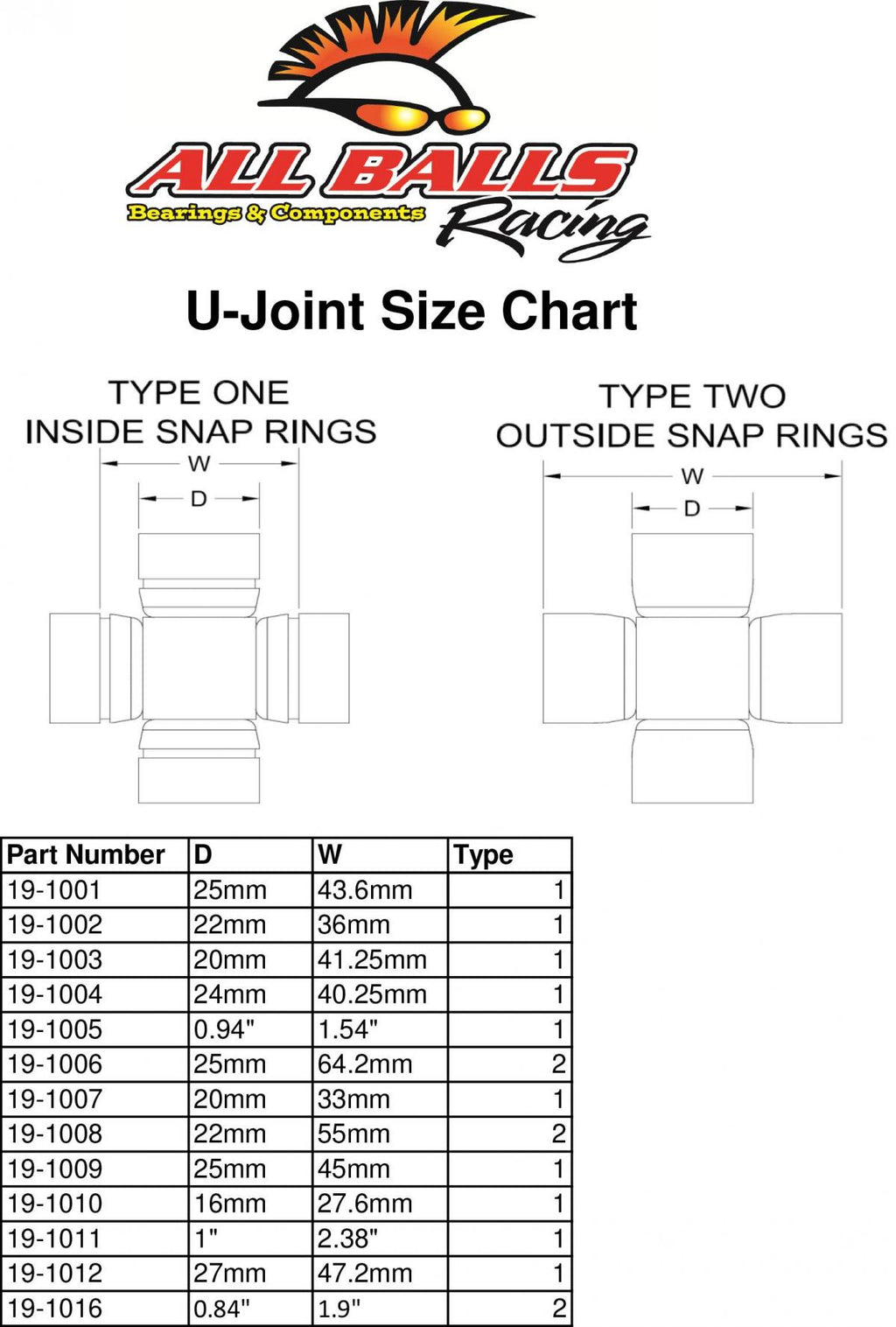

Specifications:

• Diameter: 25mm
• Width: 64.2mm
• Design: With outside snap rings
• Material: SCM-415 steel, cold forged
• Journals: Precision ground and case hardened to HRC58-61
• Lubrication: Pre-greased with hi-temp Lithium Complex 3 grease
• Grease Distribution: Zerk and grease channels in bearing cup
• Cap Plug: Included to eliminate grease zerk for low clearance applications

Additional Features:

• Honda yoke assemblies upgraded with cross diameters from 17mm to 19mm
• Stainless steel clamps and high-quality neoprene rubber boots for durability

Applications:

U-Joint, Front Drive Shaft-Diff Side (Ref 2):

• CF-Moto:
  • Tracker 800 CF800-3 UTV (2013-2014)

U-Joint, Front Drive Shaft-Engine Side (Ref 3):

• CF-Moto:
  • Tracker 800 CF800-3 UTV (2013-2014)

U-Joint, Rear Drive Shaft-Diff Side (Ref 5):

Can-Am:

• Commander 1000 STD (2011-2016)
• Commander 1000 XT (2016)
• Commander 1000 XT/LTD/DPS (2011-2014)
• Commander 1000 XTP (2014)
• Commander 800 DPS (2013-2016)
• Commander 800 LTD (2016)
• Commander 800 STD (2011-2016)
• Commander 800 XT (2011-2016)
• Commander 800 XTP (2016)
• Commander MAX 1000 STD (2016)
• Commander MAX 1000 XT/DPS/LTD (2014)
• Commander MAX 800 DPS (2016)
• Maverick 1000 STD (2013)
• Maverick 1000 XRS (2013)
• Outlander 1000 DPS (2012-2018)
• Outlander 1000 EFI 6x6 (2015)
• Outlander 1000 XMR (2013-2017)
• Outlander 1000 XT (2012-2017)
• Outlander 1000 XTP (2013-2017)
• Outlander 400 STD 4x4 (2013-2015)
• Outlander 400 XT 4x4 (2013-2014)
• Outlander 500 LTD 4x4 (2010)
• Outlander 500 STD 4x4 (2007-2015)
• Outlander 500 XT 4x4 (2007-2014)
• Outlander 650 6x6 (2015)
• Outlander 650 STD 4x4 (2006-2015)
• Outlander 650 XMR (2013-2015)
• Outlander 650 XT 4x4 (2006-2014)
• Outlander 800 STD 4x4 (2006-2008)
• Outlander 800 XMR (2011-2012)
• Outlander 800 XT 4x4 (2006-2008)
• Outlander 800 XXC (2011)
• Outlander 800R STD 4x4 (2009-2015)
• Outlander 800R XT 4x4 (2009-2014)
• Outlander 850 (2016)
• Outlander 850 DPS (2016-2018)
• Outlander 850 XMR (2016)
• Outlander 850 XT (2016)
• Outlander 850 XTP (2016)
• Outlander DPS 570 EFI (2018)
• Outlander DPS 650 EFI (2017)
• Outlander MAX 1000 (2013-2017)
• Outlander MAX 1000 LTD (2015-2016)
• Outlander MAX 1000 XT (2013-2017)
• Outlander MAX 1000 XTP (2013-2017)
• Outlander MAX 400 EFI/STD/XT (2015)
• Outlander MAX 400 STD 4x4 (2013-2014)
• Outlander MAX 400 XT 4x4 (2013-2014)
• Outlander MAX 500 EFI (2015)
• Outlander MAX 500 STD 4x4 (2007-2014)
• Outlander MAX 500 XT 4x4 (2007-2014)
• Outlander MAX 650 STD 4x4 (2006-2015)
• Outlander MAX 650 XT 4x4 (2006-2014)
• Outlander MAX 800 LTD 4x4 (2007-2008)
• Outlander MAX 800 STD 4x4 (2006-2008)
• Outlander MAX 800 XT 4x4 (2006-2008)
• Outlander MAX 800R EFI (2015)
• Outlander MAX 800R LTD 4x4 (2009-2012)
• Outlander MAX 800R STD 4x4 (2009-2014)
• Outlander MAX 800R XT 4x4 (2009-2014)
• Outlander MAX 850 DPS (2017-2018)
• Outlander MAX 850 XT (2016)
• Outlander MAX 850 XTP (2016)
• Outlander MAX DPS 570 EFI (2018)
• Outlander MAX STD 570 EFI (2018)
• Outlander STD 570 EFI (2017-2018)
• Outlander STD 650 EFI (2017)
• Quest 500 (2004)
• Quest 500 XT (2002-2004)
• Quest 650 STD/XT (2002-2004)
• Renegade 1000 (2012-2017)
• Renegade 1000 XMR (2016-2017)
• Renegade 1000 XXC (2012-2017)
• Renegade 500 (2008-2015)
• Renegade 500 XT (2012)
• Renegade 570 EFI (2018)
• Renegade 800 (2007-2015)
• Renegade 800 X (2008-2009)
• Renegade 800 XXC (2010-2014)
• Renegade 850 (2016-2017)
• Renegade 850 XXC (2016-2017)
• Renegade XMR 570 EFI (2017-2018)
• CF-Moto X6 TERRALANDER 625 EFI (2014)
• John Deere Trail Buck 650
• John Deere Trail Buck 650EX
• John Deere Trail Buck 650EXT

U-Joint, Rear Drive Shaft-Engine Side (Ref 4):

Can-Am:

• Commander 1000 STD (2011-2016)
• Commander 1000 XT (2016)
• Commander 1000 XT/LTD/DPS (2011-2014)
• Commander 1000 XTP (2014)
• Commander 800 DPS (2013-2016)
• Commander 800 LTD (2016)
• Commander 800 STD (2011-2016)
• Commander 800 XT (2011-2016)
• Commander 800 XTP (2016)
• Commander MAX 1000 STD (2016)
• Commander MAX 1000 XT/DPS/LTD (2014)
• Commander MAX 800 DPS (2016)
• Maverick 1000 STD (2013)
• Maverick 1000 XRS (2013)
• Outlander 1000 DPS (2012-2018)
• Outlander 1000 EFI 6x6 (2015)
• Outlander 1000 XMR (2013-2017)
• Outlander 1000 XT (2012-2017)
• Outlander 1000 XTP (2013-2017)
• Outlander 500 LTD 4x4 (2010)
• Outlander 500 STD 4x4 (2007-2015)
• Outlander 500 XT 4x4 (2007-2014)
• Outlander 650 6x6 (2015)
• Outlander 650 STD 4x4 (2006-2015)
• Outlander 650 XMR (2013-2015)
• Outlander 650 XT 4x4 (2006-2014)
• Outlander 800 STD 4x4 (2006-2008)
• Outlander 800 XMR (2011-2012)
• Outlander 800 XT 4x4 (2006-2008)
• Outlander 800 XXC (2011)
• Outlander 800R STD 4x4 (2009-2015)
• Outlander 800R XT 4x4 (2009-2014)
• Outlander 850 (2016)
• Outlander 850 DPS (2016-2018)
• Outlander 850 XMR (2016)
• Outlander 850 XT (2016)
• Outlander 850 XTP (2016)
• Outlander DPS 570 EFI (2017-2018)
• Outlander DPS 650 EFI (2017)
• Outlander MAX 1000 (2013-2017)
• Outlander MAX 1000 LTD (2015-2016)
• Outlander MAX 1000 XT (2013-2017)
• Outlander MAX 1000 XTP (2013-2017)
• Outlander MAX 500 EFI (2015)
• Outlander MAX 500 STD 4x4 (2007-2014)
• Outlander MAX 500 XT 4x4 (2007-2014)
• Outlander MAX 650 STD 4x4 (2006-2015)
• Outlander MAX 650 XT 4x4 (2006-2014)
• Outlander MAX 800 LTD 4x4 (2007-2008)
• Outlander MAX 800 STD 4x4 (2006-2008)
• Outlander MAX 800 XT 4x4 (2006-2008)
• Outlander MAX 800R EFI (2015)
• Outlander MAX 800R LTD 4x4 (2009-2012)
• Outlander MAX 800R STD 4x4 (2009-2014)
• Outlander MAX 800R XT 4x4 (2009-2014)
• Outlander MAX 850 DPS (2017-2018)
• Outlander MAX 850 XT (2016)
• Outlander MAX 850 XTP (2016)
• Outlander MAX DPS 570 EFI (2018)
• Outlander MAX STD 570 EFI (2018)
• Outlander STD 570 EFI (2017-2018)
• Outlander STD 650 EFI (2017)
• Quest 500 (2004)
• Quest 500 XT (2002-2004)
• Quest 650 STD/XT (2002-2004)
• Renegade 1000 (2012-2017)
• Renegade 1000 XMR (2016-2017)
• Renegade 1000 XXC (2012-2017)
• Renegade 500 (2008-2015)
• Renegade 500 XT (2012)
• Renegade 570 EFI (2018)
• Renegade 800 (2007-2015)
• Renegade 800 X (2008-2009)
• Renegade 800 XXC (2010-2014)
• Renegade 850 (2016-2017)
• Renegade 850 XXC (2016-2017)
• Renegade XMR 570 EFI (2017-2018)
• CF-Moto X6 TERRALANDER 625 EFI (2014)
• John Deere Trail Buck 650
• John Deere Trail Buck 650EX
• John Deere Trail Buck 650EXT

Rear Drive Shaft Engine Side Only:

Can-Am:

• Quest 650 (2002-2004)
• Traxter 650 (2005)

Part No. 17-3311_AB (oro2u.com)

ALLBALLS U-JOINT KITS

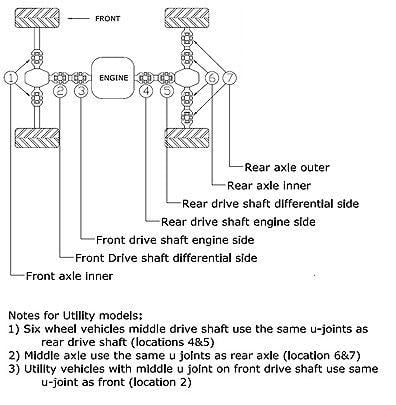

Location:

1. Front Axle Inner
2. Front Drive Shaft (Diff Side)
3. Front Drive Shaft (Engine Side)
4. Rear Drive Shaft (Engine Side)

Compatible Models:

Can-Am ATV:

• Outlander 500 (2007, 2008-2012, 2013)
• Renegade 500 (2008-2012)
