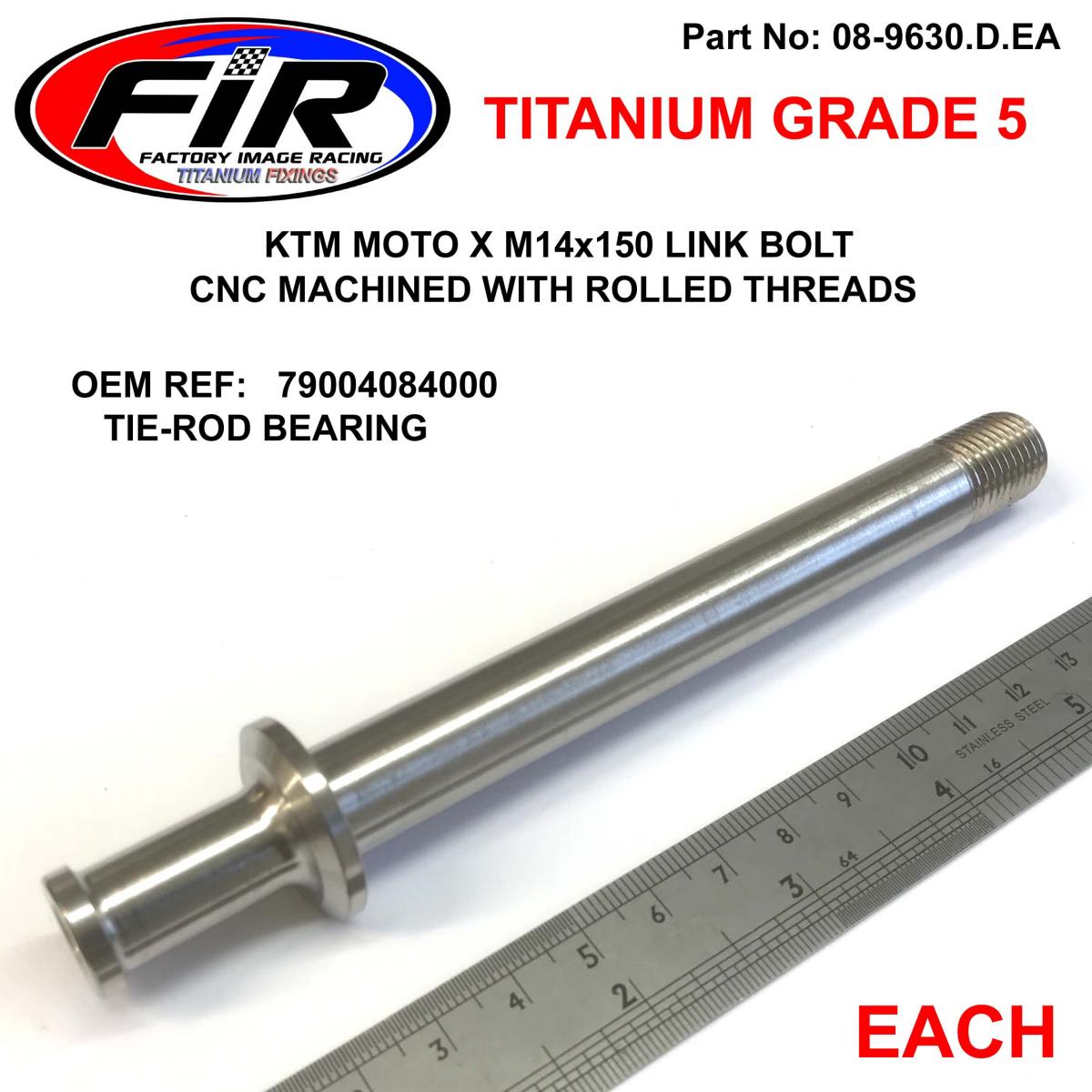

TITANIUM GRADE 5

SUIT: MOTOCROSS KTM XC SX SX-F PRO LINK

• Material: Grade 5 (6Al/4V)
• Thread D: M14 & M8

• Pitch P:   1.50mm & 1.25mm

• Overall length L: 150mm
• Thread length : 16mm & 30mm

• Flange OD: 24.85mm / half moon head

• QTY : 1

Please use nut 08-9629.B and don't forget to lock tight / Loctite or copper grease

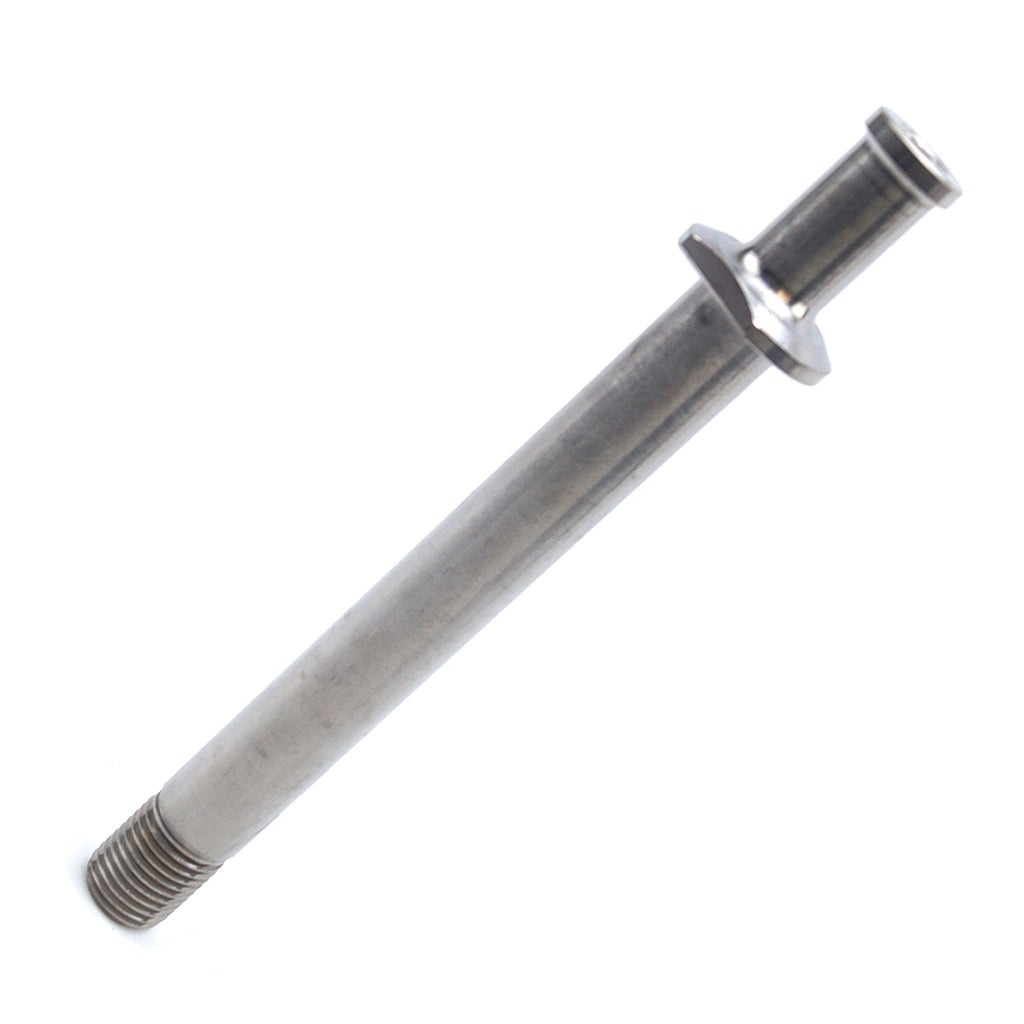

CNC machined with rolled threads from super strong grade 5 titanium alloy used for its high strength super-light properties, also fantastic anti- corrosion properties. Used in every application from Motorcycles ,cycles & much more.

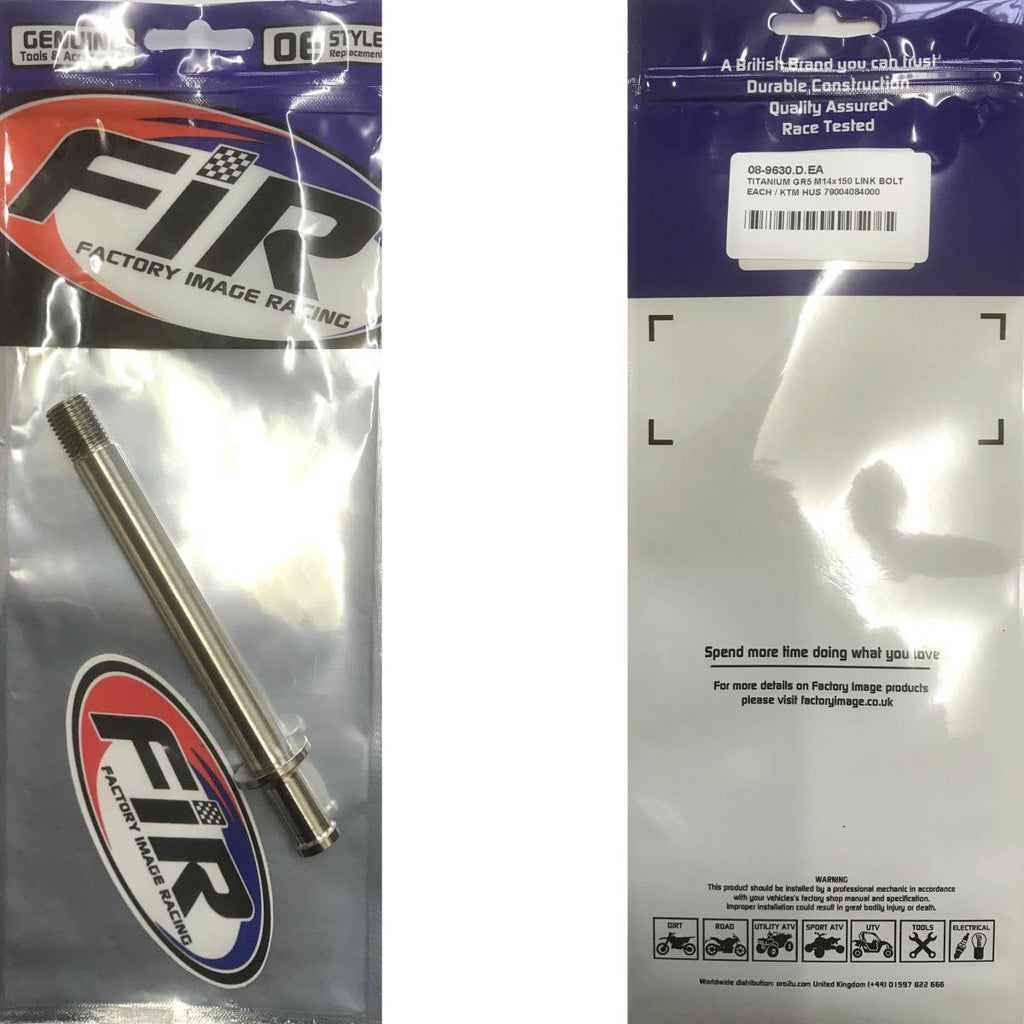

Part No. 08-9630.D.EA (oro2u.com)

Cross reference numbers > KTM OEM REF:   79004084000

2015 250 SX-F FACTORY EDITION USA
2015 450 SX-F FACTORY EDITION USA
2016 125 SX EUROPE
2016 125 SX USA
2016 150 SX EUROPE
2016 150 SX USA
2016 250 SX-F EUROPE
2016 250 SX-F FACTORY EDITION USA
2016 250 SX-F USA
2016 350 SX-F EUROPE
2016 350 SX-F USA
2016 450 SX-F EUROPE
2016 450 SX-F FACTORY EDITION USA
2016 450 SX-F USA
2017 125 SX EUROPE
2017 125 SX USA
2017 150 SX EUROPE
2017 150 SX USA
2017 250 SX EUROPE
2017 250 SX-F EUROPE
2017 250 SX-F FACTORY EDITION USA
2017 250 SX-F USA
2017 250 SX USA
2017 350 SX-F EUROPE
2017 350 SX-F USA
2017 450 SX-F EUROPE
2017 450 SX-F FACTORY EDITION USA
2017 450 SX-F USA

2014 FC 250 - Pro Lever Linking
2014 FC 350 - Pro Lever Linking
2014 FC 450 - Pro Lever Linking
2014 TC 125 - Pro Lever Linking
2014 TC 250 - Pro Lever Linking
2015 FC 250 - Pro Lever Linking
2015 FC 350 - Pro Lever Linking
2015 FC 450 - Pro Lever Linking
2015 TC 125 - Pro Lever Linking
2015 TC 250 - Pro Lever Linking
2016 TC 250 - Pro Lever Linking
2016 FC 250 - Pro Lever Linking
2016 FC 350 - Pro Lever Linking
2016 FC 450 - Pro Lever Linking
2016 TC 125 - Pro Lever Linking
2017 FC 250 - Pro Lever Linking
2017 FC 350 - Pro Lever Linking
2017 FS 450 - Pro Lever Linking
2017 TC 125 - Pro Lever Linking
2017 TC 250 - Pro Lever Linking
2018 FC 250 - Pro Lever Linking
2018 FC 350 - Pro Lever Linking
2018 FC 450 - Pro Lever Linking
2018 FC 450 ROCKSTAR EDITION - Pro Lever Linking
2018 FS 450 - Pro Lever Linking
2018 TC 125 - Pro Lever Linking
2018 TC 250 - Pro Lever Linking

2019

2020
