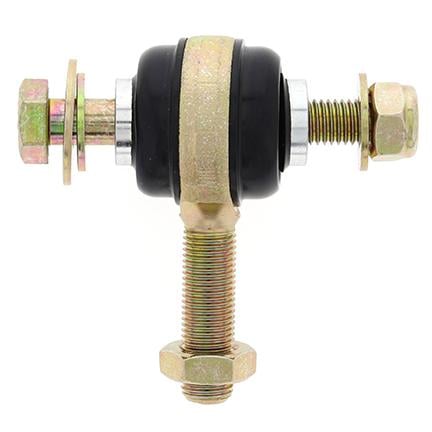

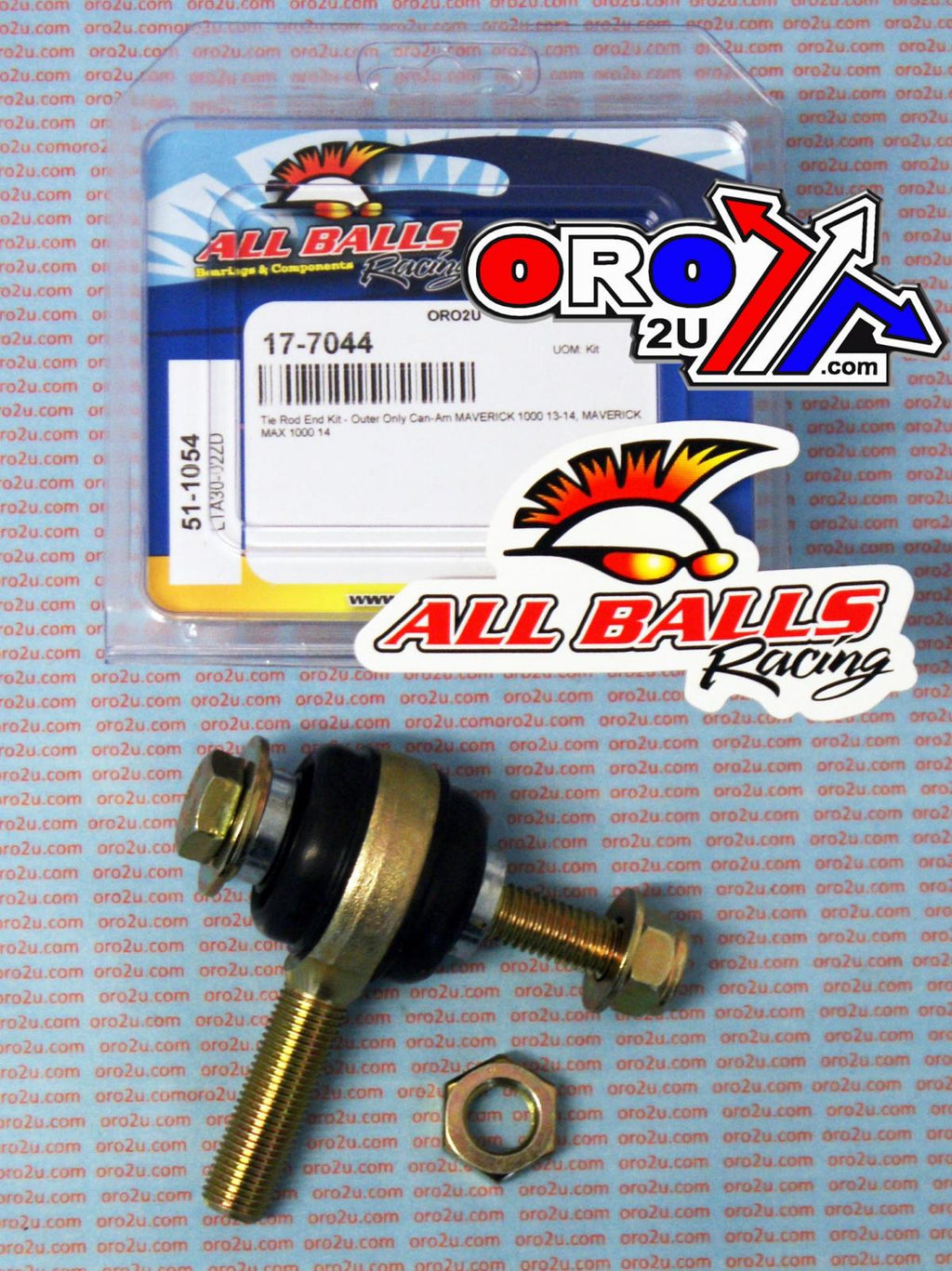

TIE ROD END KIT CAN-AM, ALLBALLS 51-1054, 709401125

Outer Tie Rod End - 0430-0746 ALLBALLS 51-1054

Tie rod end kit, outer only - contains one tie rod end.
This end attaches to the steering knuckle.
Note: 2 kits are required per vehicle.

Included Items:

• (1) 14mm-1.50 threaded tie rod end
• (1) 12mm-1.75 x 90mm hex head bolt
• (1) 12mm-1.75 nyloc nut
• (2) 12mm ID x 24mm OD flat washers
• (1) 12mm ID x 32mm OD flat washer
• (1) 14mm-1.50 hex nut

Outer Tie Rod End Kit Only
ALLBALLS #51-1054

Fitment List

Can-Am

• 2013-2018 Can-Am Maverick 1000 STD
• 2016-2017 Can-Am Maverick 1000 TURBO
• 2015-2016 Can-Am Maverick 1000 TURBO XDS
• 2016 Can-Am Maverick 1000 TURBO XRS
• 2016-2017 Can-Am Maverick 1000 XC
• 2015-2016 Can-Am Maverick 1000 XDS
• 2014-2018 Can-Am Maverick 1000 XMR
• 2013-2015 Can-Am Maverick 1000 XRS
• 2014-2017 Can-Am Maverick 1000 XXC
• 2014-2018 Can-Am Maverick MAX 1000 STD
• 2016-2017 Can-Am Maverick MAX 1000 TURBO
• 2015-2017 Can-Am Maverick MAX 1000 TURBO XDS
• 2016-2017 Can-Am Maverick MAX 1000 TURBO XRS
• 2016 Can-Am Maverick MAX 1000 XC/XXC
• 2014-2016 Can-Am Maverick MAX 1000 XDS
• 2017-2018 Can-Am Maverick MAX 1000 XMR
• 2014-2015 Can-Am Maverick MAX 1000 XRS
• 2017 Can-Am Maverick X3
• 2018 Can-Am Maverick X3 900 HO
• 2018 Can-Am Maverick X3 MAX TURBO
• 2018 Can-Am Maverick X3 MAX TURBO R
• 2018 Can-Am Maverick X3 MAX TURBO R XDS
• 2018 Can-Am Maverick X3 MAX TURBO R XRS
• 2018 Can-Am Maverick X3 TURBO
• 2018 Can-Am Maverick X3 TURBO R
• 2018 Can-Am Maverick X3 TURBO R XDS
• 2018 Can-Am Maverick X3 TURBO R XMR
• 2018 Can-Am Maverick X3 TURBO R XRC
• 2018 Can-Am Maverick X3 TURBO R XRS
• 2018 Can-Am Maverick X3 TURBO XMR
• 2018 Can-Am Maverick X3 TURBO XRC
• 2017 Can-Am Maverick X3 XDS
• 2017 Can-Am Maverick X3 XRS

Cross Reference Numbers:

• 709401125
• AT-08776

Specifications:

• Right Thread
• O.D: 44.2mm
• I.D: 12.2mm
• W: 48.3mm
• Thread: O.D 13.7mm x 44.4mm long
• Total Height: 94.2mm

Includes 1 bolt, 3 washers, 1 nylon nut, and 1 hex nut.
