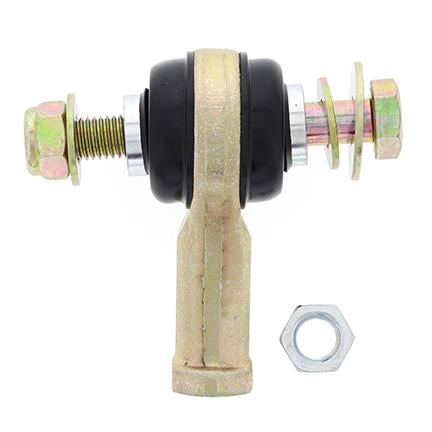

TIE ROD END KIT CAN-AM, ALLBALLS 51-1049, 709401134

Outer Tie Rod End - 0430-0745 ALLBALLS 51-1049

Tie rod end kit, outer only - contains one tie rod end.
This end attaches to the steering knuckle.
Note: 2 kits are required per vehicle.

Included Items:

• (1) 12mm-1.25 right-hand thread tie rod end
• (1) 12mm-1.75 x 90mm hex head bolt
• (1) 12mm-1.75 nyloc nut
• (2) 12mm ID x 25mm OD flat washers
• (1) 12mm ID x 32mm OD flat washer

Outer Tie Rod End Kit Only
ALLBALLS #51-1049

Cross Reference Numbers:

• 709401134
• AT-08775

Specifications:

• Right Thread
• O.D: 44.2mm
• I.D: 12.2mm
• W.: 48.1mm
• Hole: 10.8mm
• Total Height: 92.6mm
• Includes 1 bolt, 3 washers, 1 nylon nut, and 1 hex nut.

Fitment List

Can-Am

• 2016-2018 Can-Am Commander 1000 DPS
• 2013 Can-Am Commander 1000 (Early Build 14mm)
• 2013 Can-Am Commander 1000 (Late Build 16mm)
• 2016-2018 Can-Am Commander 1000 LTD
• 2013-2018 Can-Am Commander 1000 STD
• 2016-2018 Can-Am Commander 1000 XT
• 2013-2015 Can-Am Commander 1000 XT/LTD/DPS
• 2014-2017 Can-Am Commander 1000 XTP
• 2014-2018 Can-Am Commander 800 DPS
• 2013 Can-Am Commander 800 (Early Build 14mm)
• 2013 Can-Am Commander 800 (Late Build 16mm)
• 2016 Can-Am Commander 800 LTD
• 2013-2018 Can-Am Commander 800 STD
• 2013-2018 Can-Am Commander 800 XT
• 2016 Can-Am Commander 800 XTP
• 2013-2015 Can-Am Commander Electric 9KW
• 2018 Can-Am Commander MAX 1000 DPS
• 2018 Can-Am Commander MAX 1000 LTD
• 2015-2018 Can-Am Commander MAX 1000 STD
• 2018 Can-Am Commander MAX 1000 XT
• 2014-2017 Can-Am Commander MAX 1000 XT/DPS/LTD
• 2015 Can-Am Commander MAX 1000 XTP
• 2016-2018 Can-Am Commander MAX 800 DPS
