Cross Reference Numbers Only:
TI GR5 BOLTS DISC KAW/SUZ KIT/4, TITANIUM REAR KIT RM KX KXF, / FIR BRAND
£11.84 GBP
Taxes included.
Factory Image Racing> Giving your machine the Factory look!
TITANIUM GRADE 5
CLICK HERE to view the Factory Image Racing (FIR) Titanium Catalogue

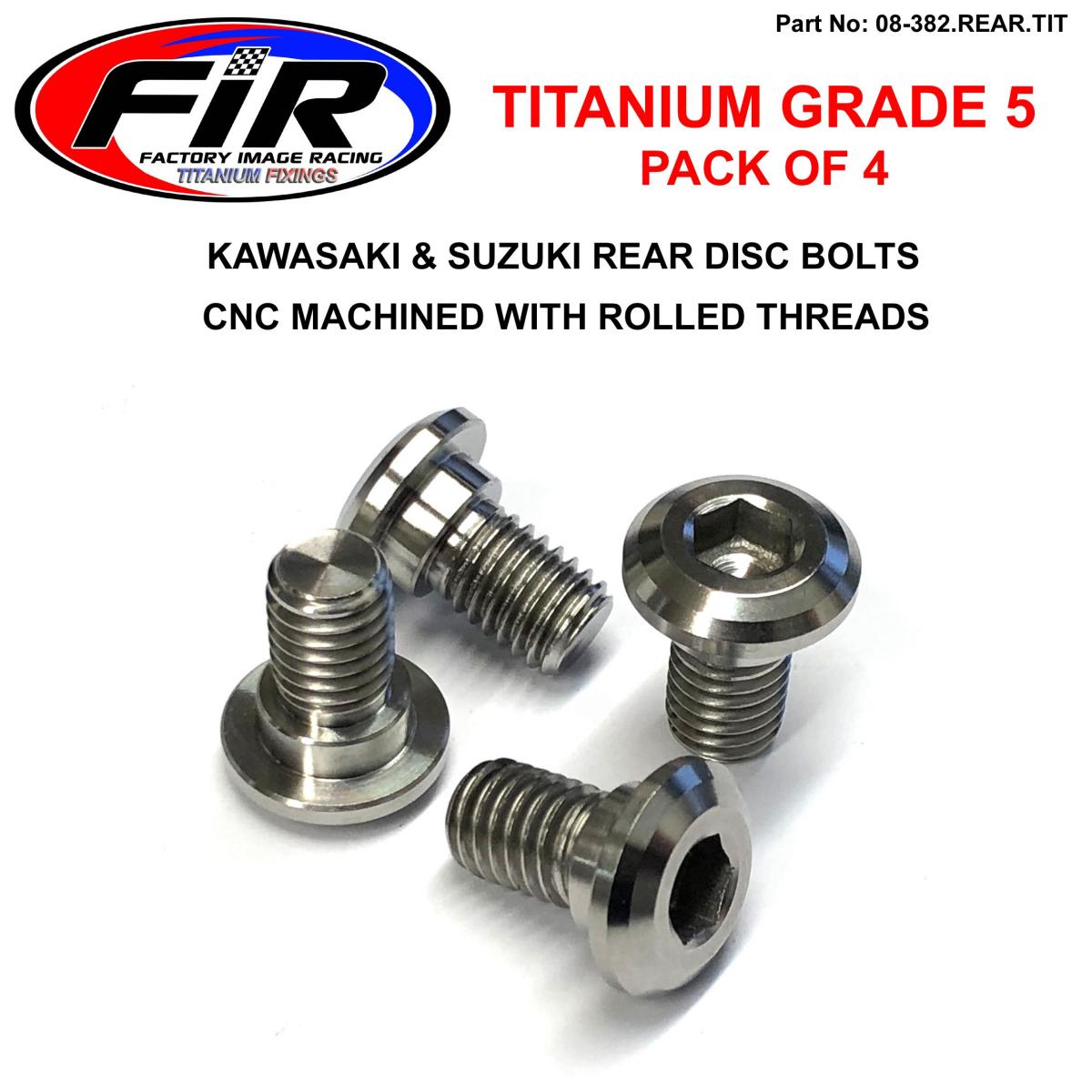

BOLT DISC SET OF 4. REAR Kawasaki & Suzuki
Kawasaki
KX/KXF 125-450 03-21
Suzuki
RMZ250 / RMZ450 / RMZ450 05-21

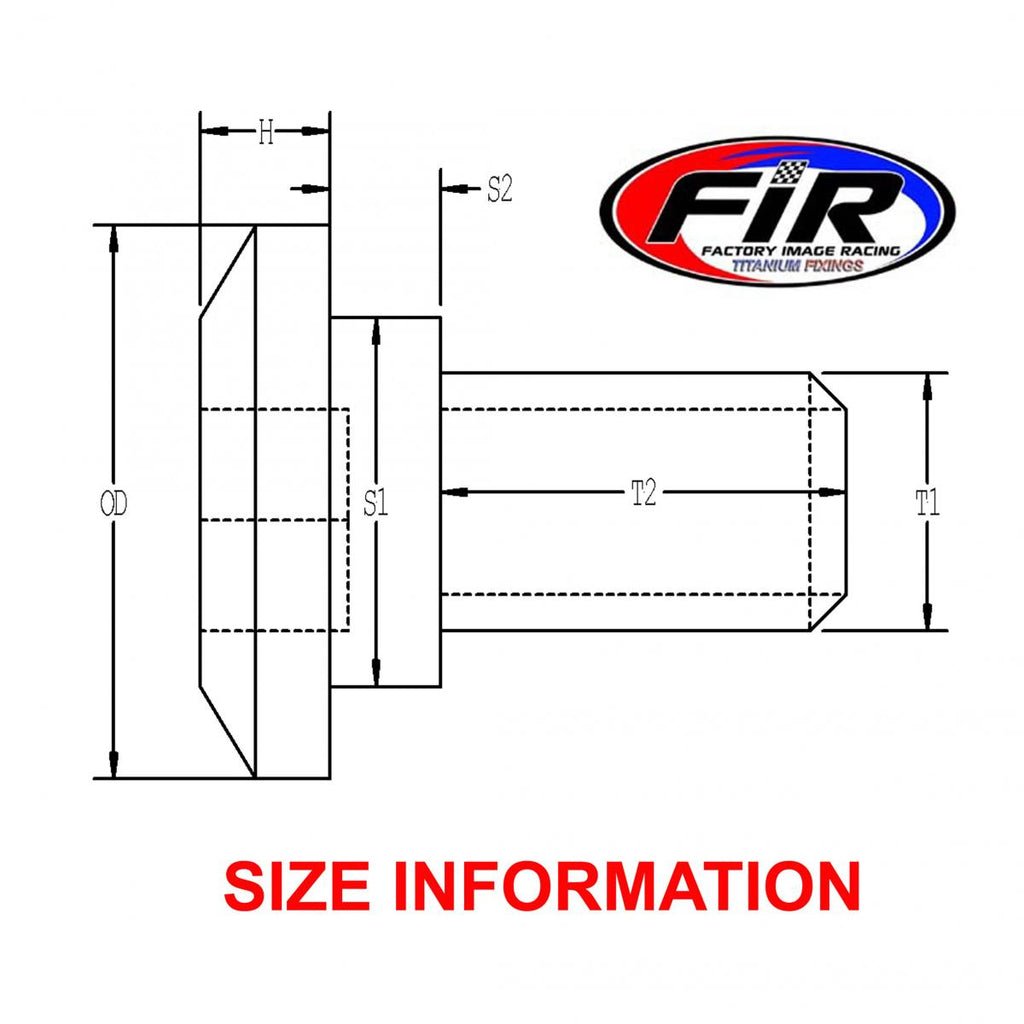

STEP BOLT INFO
- Material: Grade 5 (6Al/4V)
- Pitch T1 : M8x1.25mm
- Length T2: 10.80mm
- OD step S1: 9.90mm
- H step S2: 3.30mm
- L Head H: 3.30mm
- Head OD:14.80mm
- Head Allen: #6
- Pack QTY :4
- OEM Ref: SUZ 09139-08022
Part No. 08-382.REAR.TIT
THE TITANIUM BOLTS ARE GRADE 5 WHICH IS THE BEST GRADE TO USE, ITS THE ALPHA GRADE OF TITANIUM AND MORE EXPENSIVE THAN THE OTHER GRADES BEING USED IN THE MOTORCYCLE MARKET, AND JUST A HEADS UP ALL FIR FIXINGS ARE MADE FROM GRADE 5!
