TI GR5 BOLTS DISC HONDA KIT/4, TITANIUM REAR KIT 95>2021, / FIR BRAND
£19.56 GBP
Taxes included.

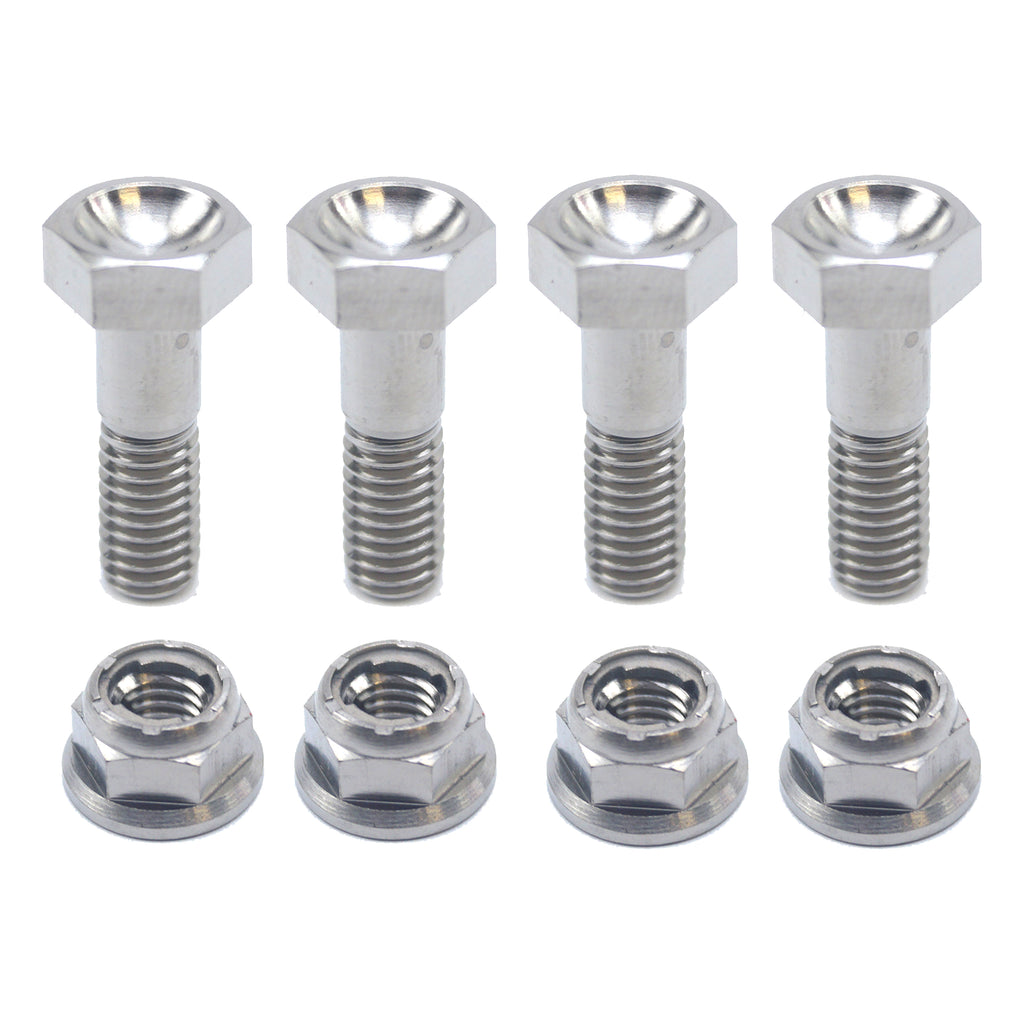

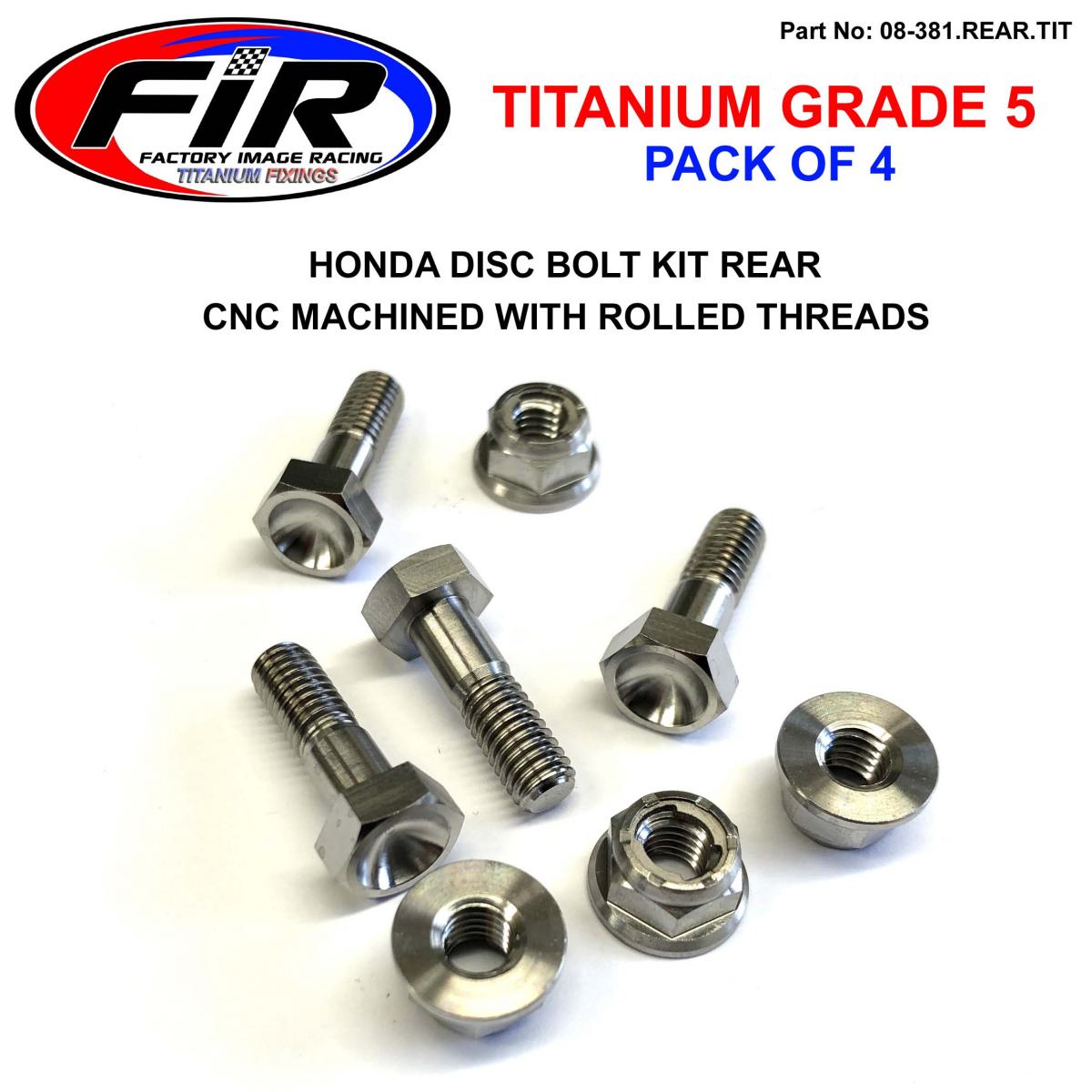

Factory Image Racing - Titanium Grade 5 Bolt Disc Set of 4 (Nuts & Bolts) for Honda Rear
Compatibility:
- Honda CRF150/250/450: 2002-2019
- Honda CR125/250/500: 1995-2007
BOLT INFO:
- Material: Grade 5 (6Al/4V) Titanium
- Pitch (P): M6x1.00mm
- Overall Length (L): 19.60mm
- Thread Length: 11.00mm
- Head HEX: 10mm spanner
- Pack Quantity: 4
- OEM Reference: 90105-MAC-680
NUT INFO:
- Material: Grade 5 (6Al/4V) Titanium
- Pitch: M6x1.00mm
- OD Size: 12.70mm
- Overall Height: 7.25mm
- Head Hex Size: 10mm spanner
- Flange Surface Area: Smooth/Flush
- Locking Type: Metal Insert Lock
- Pack Quantity: 4
- OEM Reference: 90301-473-003
These titanium bolts are Grade 5, the highest grade available and the alpha grade of titanium. All FIR fixings are made from Grade 5 titanium.
Cross Reference Numbers:
- 90105-MAC-680
- 90301-473-003
- 90301-473-013
- 90301-MC7-003
