SWITCH LH HANDLEBAR HONDA

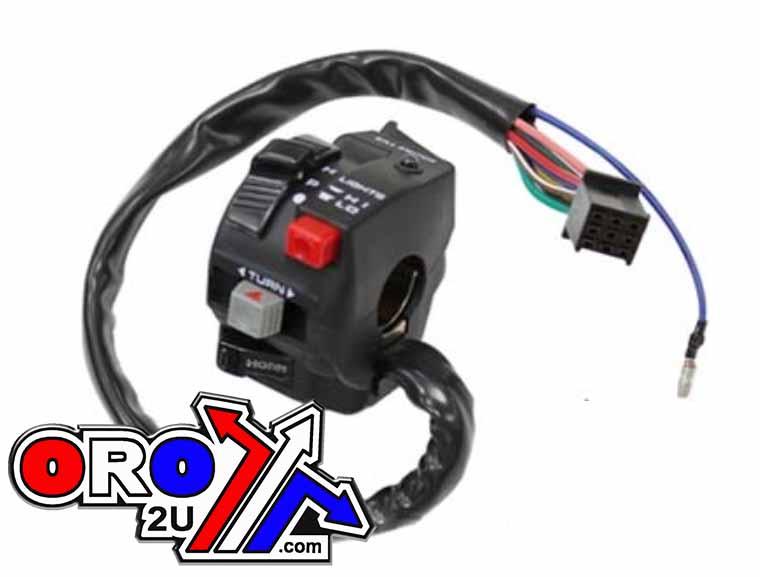

SWITCH MULTI FUNCTION L/H HANDLE BAR..   BRONCO AT-01512

WIRE LENGTH 475mm with 1 OE 9 Pin BLOCK   + 1 wire with Bulet connector.

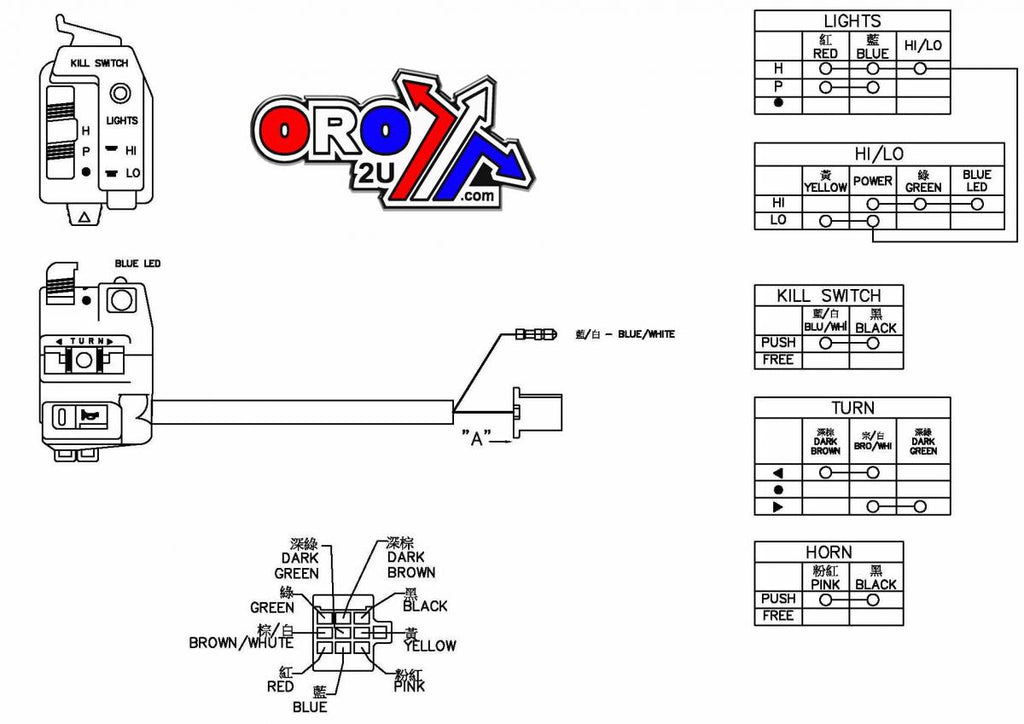

10 wire Switch. See wiring diagram attached.
Switch Width 45mm.
Switch Dia 70mm Aprox.
FITS 22.2mm - 7/8 HANDLEBARS.
USE ON HONDA ATV's

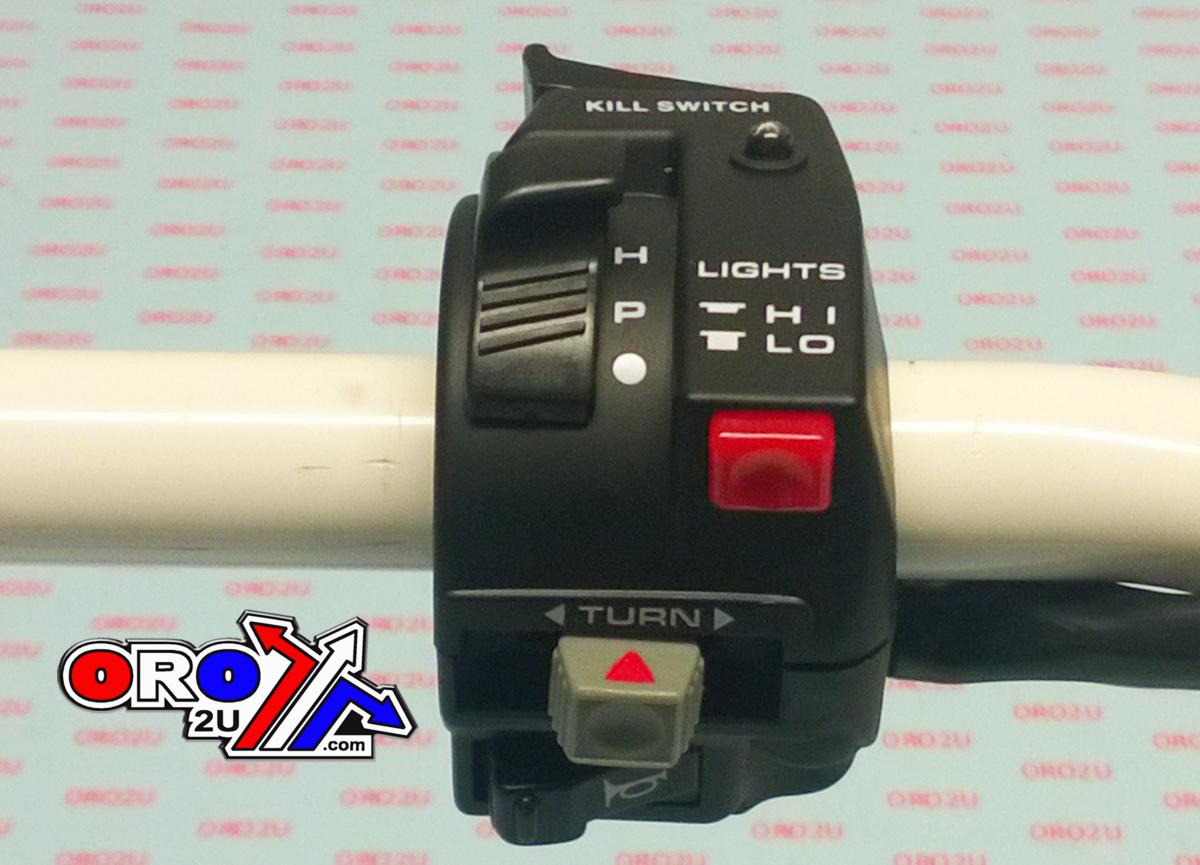

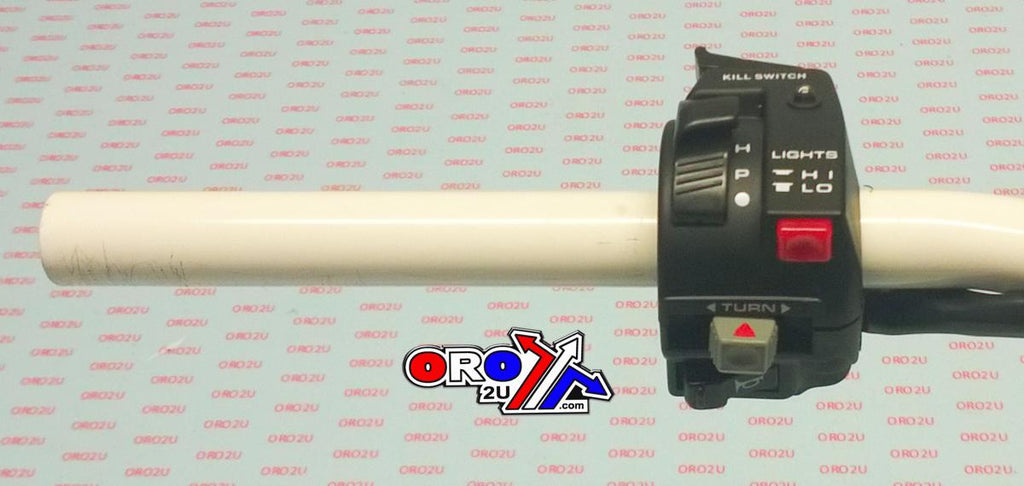

MULTI FUNCTION 5 BUTTON.
Lights [Head / Parking / Off]
DIP Headlight RED button. [High and low beam].
Engine Kill switch.
HORN.
Indicators turn signals Grey Button [left / Right with Center push canceling]

- Meets or exceeds OEM quality.
- Direct oem replacement.
- Best value for money
- BRONCO products are a high quality replacement part and carries our guarantee of your satisfaction.
- Please check the image before ordering to avoid mistakes.

Cross Reference Numbers Only:
AT-01512
