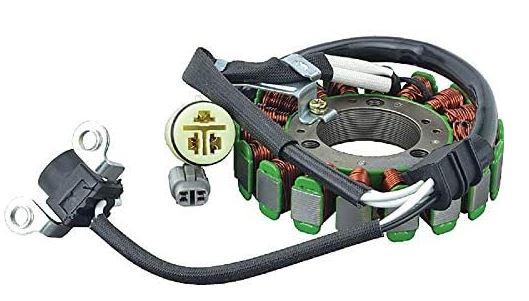

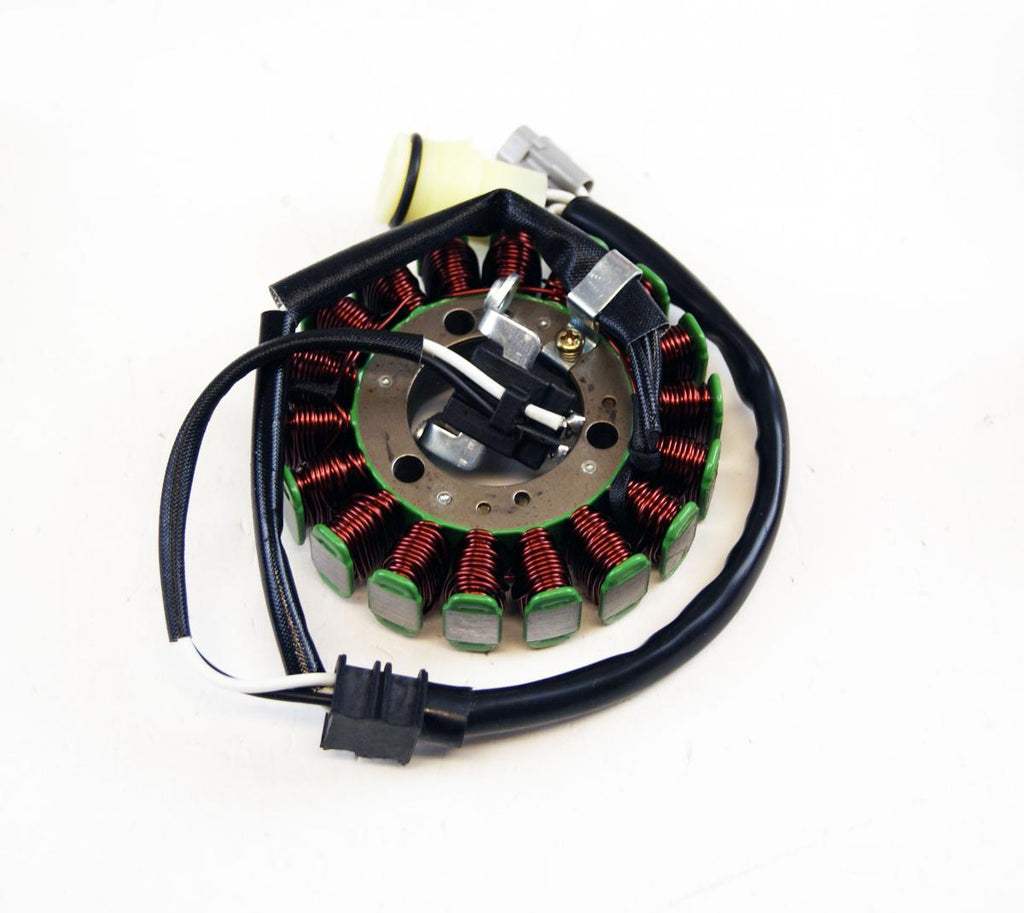

STATOR YAMAHA YFZ450 09-19, ARROWHEAD 340-58162, 18P-81410-00-00

YAMAHA ATV - YFZ450R/X 2009-2019

STATOR Generator

• Direct replacement to your original unit.
• Meets or exceeds OEM quality.
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials.
• Highest grade copper windings, resistant to 200 degrees Celsius.

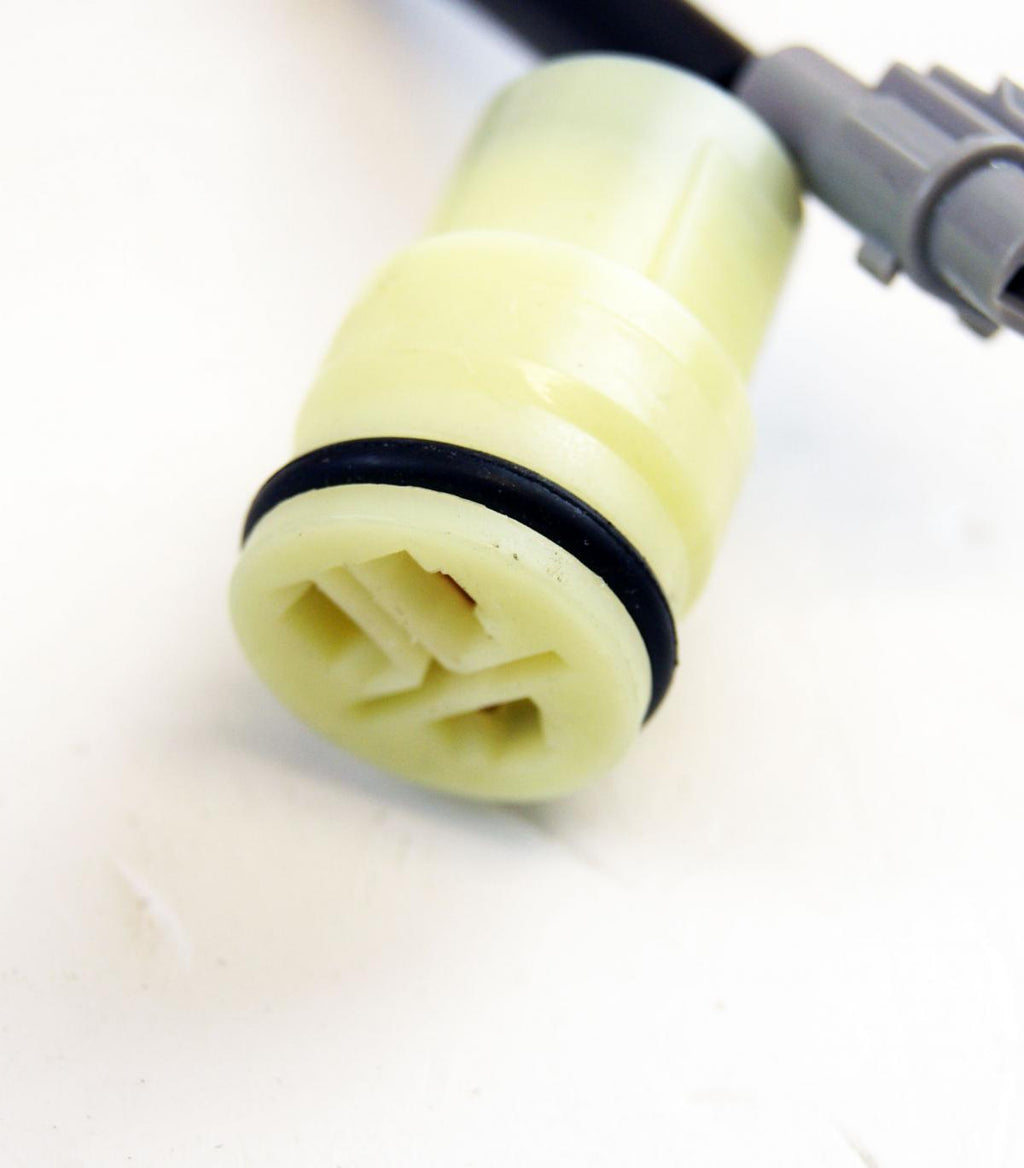

• Connector included.
• Rubber grommet included. Refer to the chart to find your model.
• Factory tested before shipping.
• Designed to handle increased power loads.
• ARROWHEAD Racing products are high-quality replacement parts and carry our guarantee of your satisfaction.
• Please check the image before ordering to avoid mistakes.
• Note: No Returns on Electrical Parts.

Specifications:

• Includes Magnetic Pick Up Sensor
• Condition: New
• LAM STACK ID: 1.457" / 37mm
• LAM STACK OD: 3.803" / 96.600mm
• LAM STACK THICKNESS: 0.862" / 21.900mm
• Volt: 12

Part No.: 44-5872.AH (oro2u.com)

Cross Reference Numbers Only: 340-58162, BRONCO AT-01469 ATV, 18P-81410-00-00

Cross Reference Numbers:

• 340-58162
• BRONCO AT-01469 ATV
• 18P-81410-00-00

Compatible Models:

Yamaha

• YFZ 450 R SE: 2009-2019
• YFZ 450 R: 2009-2015, 2018-2019
• YFZ 450 X Bill Balance Edition: 2010
•  YFZ 450 X SE: 2011
• YFZ 450 X: 2010, 2011
• YFZ 450: 2017

Generator Information:

Yamaha ATV

• 2009 YFZ450R (DEEP PURPLISH BLUE SOLID E) - YFZ450RYL
• 2009 YFZ450R (BLUISH WHITE SOLID 1) - YFZ450RYW
• 2009 YFZ450RSEY (BLACK) - Generator
• 2010 YFZ450R - YFZ450RZL
• 2010 YFZ450X BILL BALLANCE EDITION - YFZ450XBBZ
• 2010 YFZ450R SPECIAL EDITION - YFZ450RSEZ
• 2011 YFZ450R - YFZ450RAL
• 2011 YFZ450X SPECIAL EDITION - YFZ450XSEA
• 2011 YFZ450R SPECIAL EDITION - YFZ450RSEA
• 2011 YFZ450X - YFZ450XAL
• 2012 YFZ450R - YFZ45RBW
• 2012 YFZ450R SPECIAL EDITION - YFZ45RSEB
• 2012 YFZ450R - YFZ45RBL
• 2013 YFZ450R - YFZ45RDL
• 2013 YFZ450R SPECIAL EDITION - YFZ45RSED
• 2013 YFZ450R - YFZ45RDW
• 2014 YFZ450R SPECIAL EDITION - YFZ450RSER
• 2014 YFZ450R SPECIAL EDITION - YFZ450RSSE
• 2014 YFZ450R - YFZ450REO
• 2014 YFZ450R - YFZ450REL
• 2015 YFZ450R SE - YFZ450RSFB
• 2015 YFZ450R - YFZ450RFL
• 2016 YFZ450R - YFZ45YSXGL
• 2016 YFZ450R SPECIAL EDITION - YFZ45YSSGY
• 2017 YFZ450R SPECIAL EDITION - YFZ45YSSHB
• 2017 YFZ450 - YFZ45YSXHL
