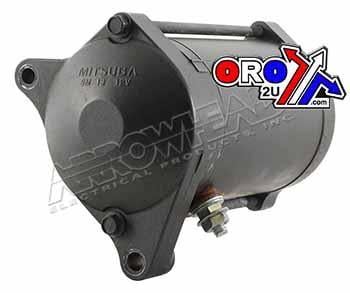

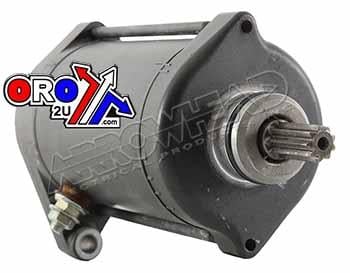

Starter Motor Yam XVS13, Arrowhead SMU0447, 410-58112, Yamaha XVS13A 1300cc V-Star m/C 2007-2009, XVS13CT 1300cc V-Star m/C 2007-2009

Starter motor designed for Yamaha XVS13A and XVS13CT 1300cc V-Star motorcycles, model years 2007-2009. Engineered for performance, it features a Permanent Magnet Direct Drive (PMDD) system with precision specifications for reliable operation and durability.

Features:

• Permanent Magnet Direct Drive (PMDD) system.
• 12-volt operation.
• Clockwise rotation.
• 9-spline gear design.
• Unthreaded mounting holes for easy installation.
• Sturdy 6mm x 1.0 B+ stud connection.

Specifications:

• Gear Outer Diameter: 11.4mm (0.449").
• Registration Outer Diameter: 28.7mm (1.130").
• Overall Length: 178.8mm (7.039").
• Mount Hole 1 Diameter: 6.6mm.
• Mount Hole 2 Diameter: 7.3mm.
• Mounting Ear Distance: 184.1mm (13.311").
• Center-to-Center Distance: 84.1mm.

Cross-Reference OEM Part Numbers:

• 3D8-81890-00-00
• 410-58112

Compatibility:

• Yamaha Motorcycle 2007-2009 XVS 1300 V-Star.
• Yamaha Motorcycle 2007-2009 XVS 1300 A V-Star Tourer.
• Yamaha Motorcycle 2007-2009 XVS 1300 CT V-Star Tourer.

Part Number: SMU0447
