STARTER MOTOR SEA-DOO SEA-DOO 9-TOOTH DRIVE, ARROWHEAD SND0026, 410-52041, Rotax Marine - BRP 787 Rotax Engine, 2 Stroke 782cc, 782cc 1995, 1996, 1997, 1998, 1999

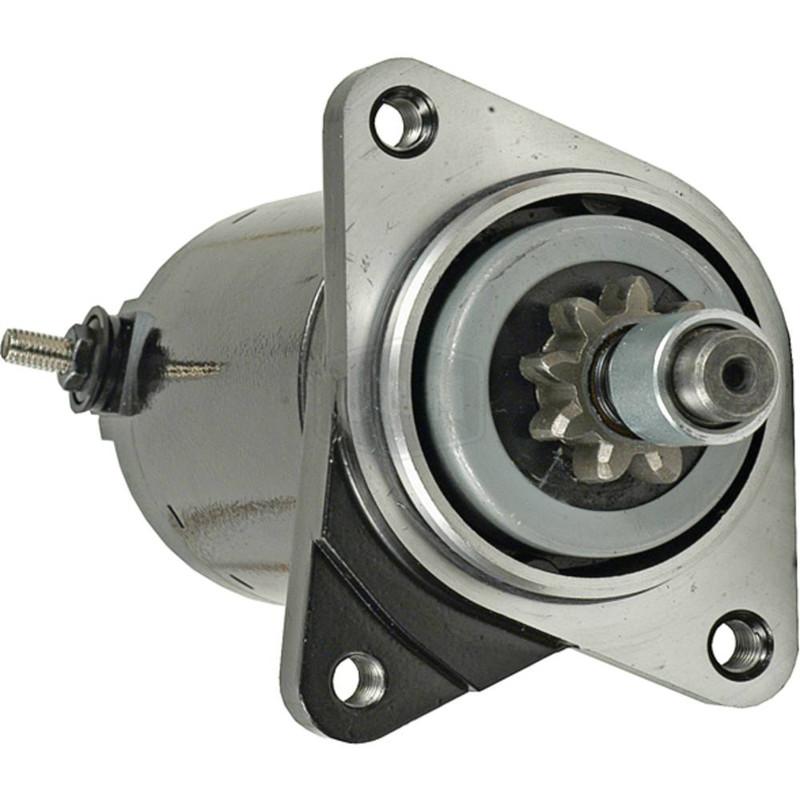

Starter motor designed for Sea-Doo PWC and sportboat models equipped with Rotax 787 engines and other compatible configurations. This unit is a direct OEM replacement, featuring a Permanent Magnet Direct Drive (PMDD) system and a robust design for reliable performance.

Features:

• Voltage: 12V
• Power: 0.600 kW (0.805 HP)
• Rotation Direction: Counterclockwise (CCW)
• Starter Type: Permanent Magnet Direct Drive (PMDD)
• Gear Teeth: 9
• Gear Outer Diameter: 29.100mm (1.146")
• Threaded Mounting Holes: M8x1.25

Specifications:

• Mount Hole 1: M8x1.25 (Threaded)
• Mount Hole 2: M8x1.25 (Threaded)
• Mount Hole 3: M8x1.25 (Threaded)
• Condition: New

Cross-Reference OEM Part Numbers:

• Arrowhead: SND0026, 410-52041
• J&N: 410-52041
• Lester: 18416
• Sea-Doo: 278-000-576, 278-000-577, 278-001-038, 278-001-301
• Denso: 228000-4560
• Other: 8M6007384 (Quicksilver), MS-803 (Dixie), RN18416 (NAPA Small Motor), 91-29-5393 (Wilson)

Vehicle Fitment:

Compatible with the following models:

Rotax Marine BRP 787 RFI Engine (782cc, 2-Stroke):

• 1998–2005

Rotax Marine BRP 787 Engine (782cc, 2-Stroke):

• 1995–1999

Sea-Doo Models:

• 3D DI (800cc): 2004, 2005
• Challenger 1800 Jet Boat (Twin Engine): 1996–1999
• GSX RFI (800cc): 1999–2001
• GSX (800cc): 1996–2001
• GTI RFI (800cc): 2003–2005
• GTX RFI (800cc): 1998–2002
• GTX (800cc): 1996–2002
• SPX (800cc): 1998, 1999
• XP (800cc): 1995–1997
• Speedster: 1998, 1999

Additional Information:

• Engineered to meet or exceed OEM quality standards.
• Fully factory tested for performance and reliability.
• Verify dimensions and compatibility with your vehicle's specifications before ordering.

Part Number: SND0026
