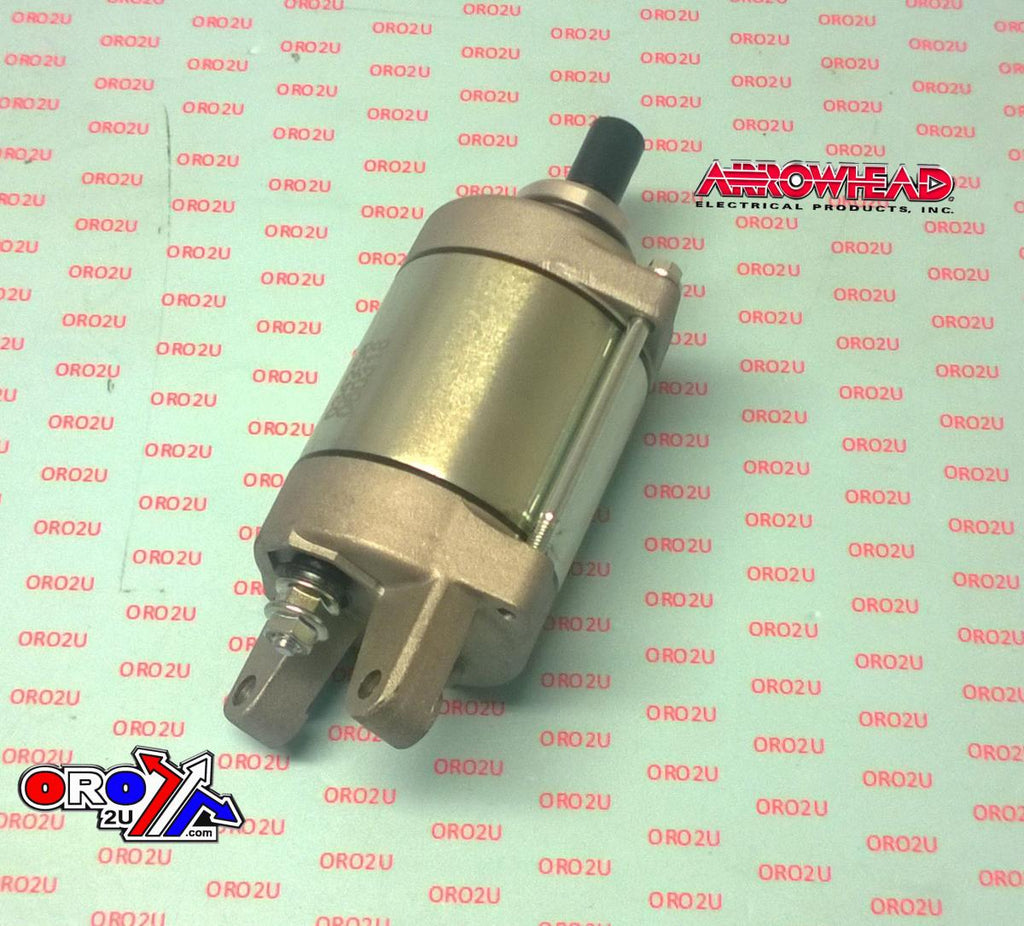

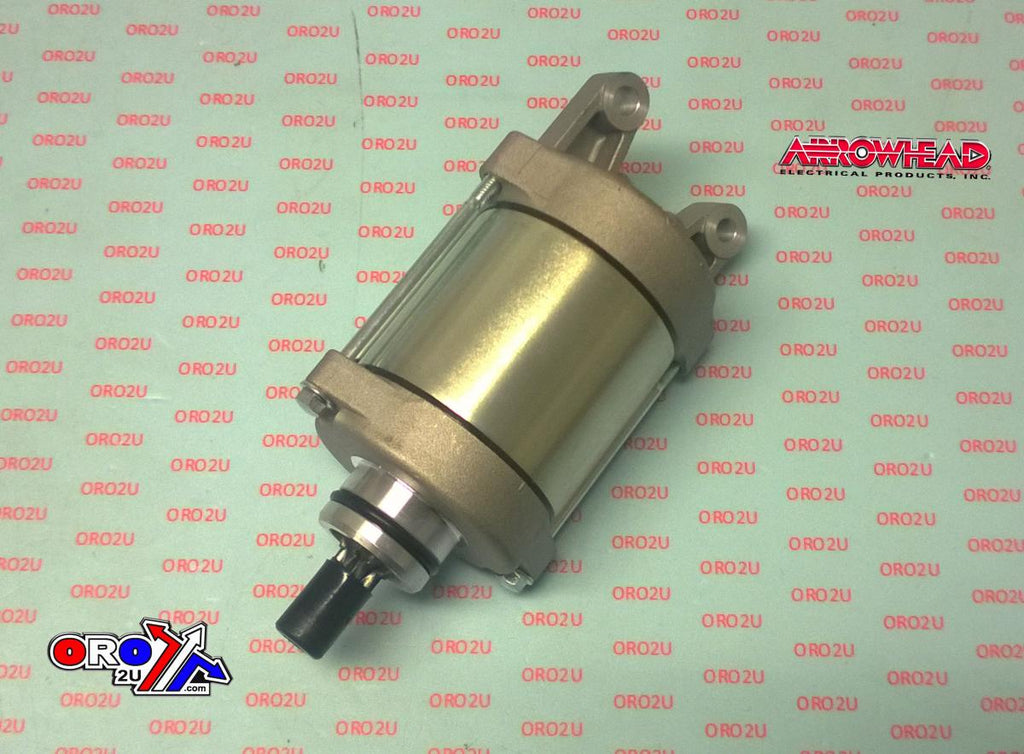

STARTER MOTOR EX 300 NINJA, ARROWHEAD 410-54265. 21163-0717, 2013-14 Kawasaki EX300 Ninja 300

Starter Motor - Arrowhead 410-54265

Compatibility:
Kawasaki Models:

• Kawasaki EX300 Ninja 300 (2013-2017, 296cc)
• Kawasaki EX300 Ninja 300 ABS (2013-2017)
• Kawasaki EX300 Ninja SE (2013-2016)
• Kawasaki EX300 Ninja SE ABS (2014-2016)
• Kawasaki EX300 Ninja Winter Test Edition (2017)
• Kawasaki KLE300 Versys-X ABS (2017-2018)
• Kawasaki KLE300 Versys-X (2017-2018)

Specifications:

• Type: Permanent Magnet Direct Drive (PMDD)
• B+ Stud: 6 mm x 1.0
• Gear OD: 11.7 mm
• Gear/Shaft OAL (From Bearing): 24.8 mm
• Registration Protrusion w/O-Ring: 16.4 mm
• Field Case OAL: 50.1 mm
• Field Case OD: 60.0 mm
• Overall Length (OAL): 157 mm
• Mounting Hole (Left Hand): 6.2 mm OD
• Mounting Hole (Right Hand): 6.8 mm OD
• Center-to-Center Distance: 46.2 mm

Features:

• Meets or exceeds OEM quality.
• Direct OEM replacement with stock mounting locations.
• Designed to handle increased power loads.
• Best value for money.
• Made to OEM specifications, matching original equipment appearance.
• All electrical parts are 100% factory tested before shipping.
• Easy installation; consult a professional if unsure.
• Note: No Returns on Electrical Parts.

Cross Reference Numbers:

• 410-54265
• 21163-0717
