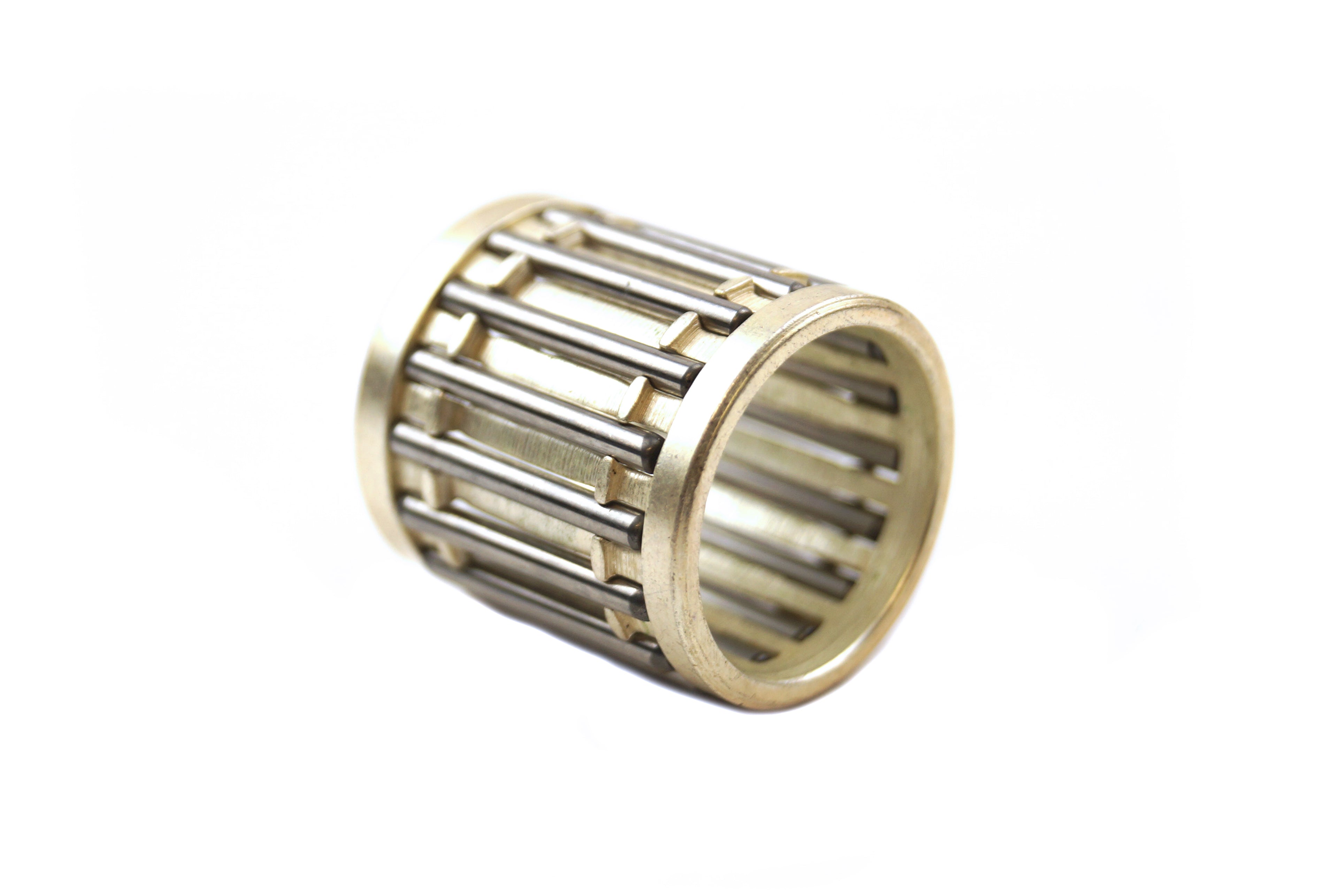

SMALL END 18x22x23.5 SILVER, NAMURA 09-B022-1 BEARING

Small End bearing 18 x 22 x 23.5mm NAMURA 09-B022-1

• Top-quality needle-cage bearing for the piston end of the rod.
• Replace the bearing(s) any time a piston is replaced.

Top-End needle bearings are the key components in transmitting the engine’s explosive force from the crown of the piston to the rotating assembly below. Namura’s bearings are manufactured from SCM415 Chromoly Steel and treated using a process called carbonnitriding; this enhances the fatigue strength and heat dissipating capacity of the cage. The overall bearing structure and high rigidity allows them to withstand the significant stress levels created by varying/high RPM’s and the impact of an engine’s stroke.

Another key feature that our bearing assemblies have is a silver coated cage. Yes, the cage that holds our needle bearings is electroplated first with copper and then a second coating of silver to better resist the erosive materials it is exposed to. This coating also decreases the friction between the cage and the bearings allowing for longer assembly life and increased reliability.

KAWASAKI
KXT250 A1 Tecate Thru to 1987 models,
KXT250 Tecate-4 87-88,
KDX250 1980-1994,
KX250 1978-2008,

Part no 56-881.SI (oro2u.com)

Cross Reference Numbers Only:
13033-1010, PROX 21.4305, NAMURA 09-B022-1, WISECO B1022 , N1049
SIZE 18x22x23.5 / 23.6 / 23.8mm
