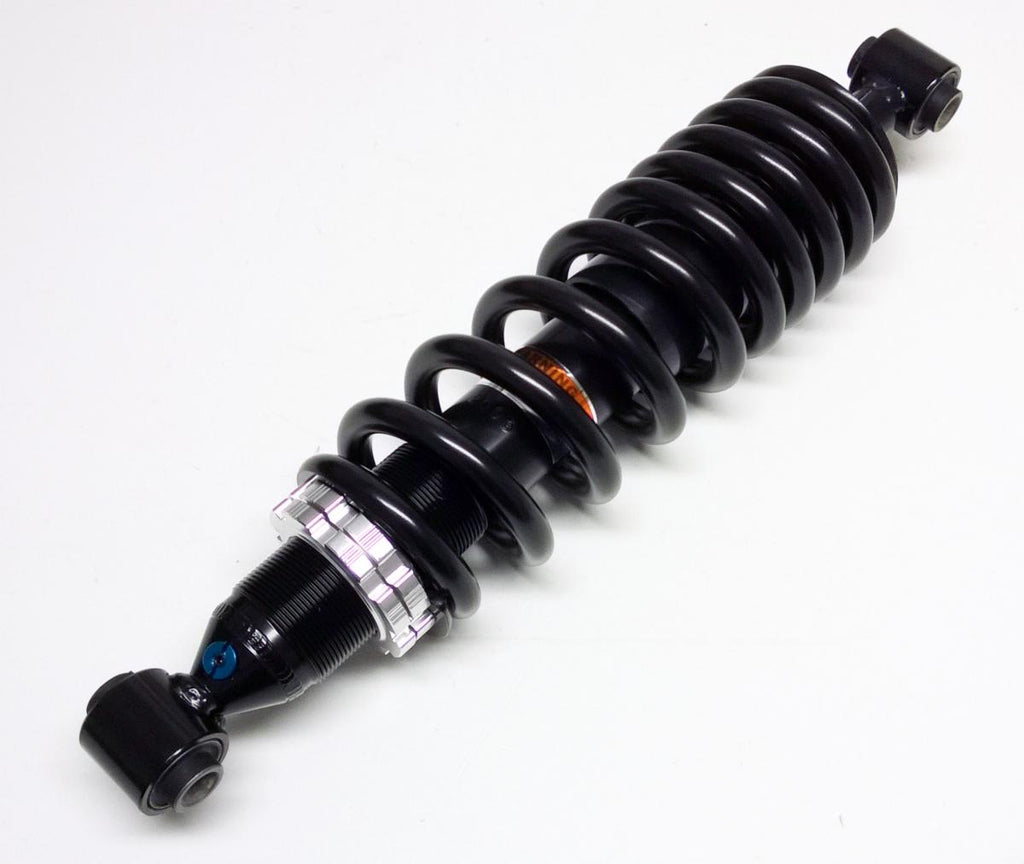

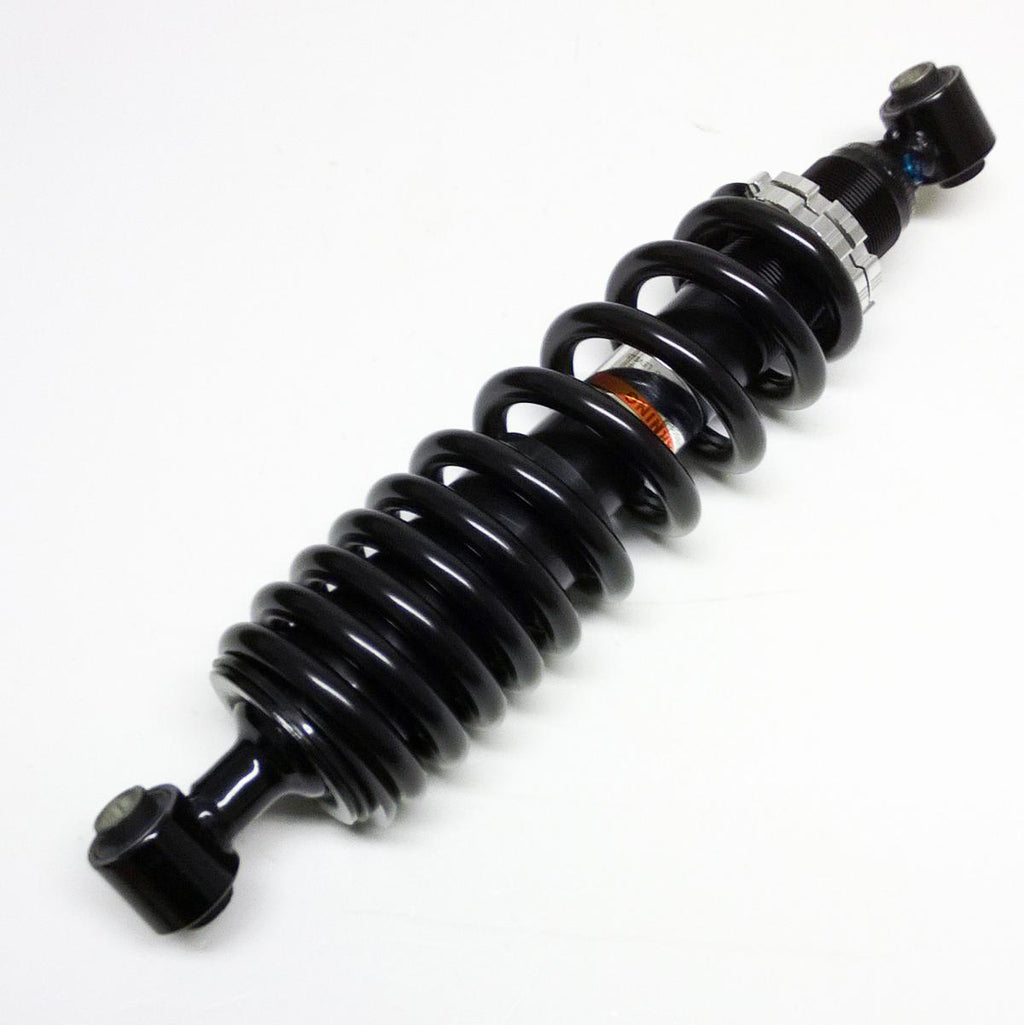

SHOCK REAR HONDA SXS 500 PIONEER, BRONCO AU-04459, 52400-HL5-C21

BRONCO HEAVY DUTY GAS SHOCKS

Bronco gas shocks offer long-term consistent performance over stock oil-only damped shocks.
10% stiffer springs provide a better ride and higher load capacity.
Works great on the front when installing a snow plow.
Smooth black color blends perfectly with any OEM ATV.
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box.
Sold individually – Includes one shock, with spring, and spring retainers.

FITMENT

• HONDA SXS500 PIONEER (2015-2022)

SPECIFICATIONS

• Position Top Hole I.D (mm): 12
• Top Eyelet Width (mm): 340
• Bottom Hole I.D (mm): 12
• Bottom Eyelet Width (mm): 40
• Tube O.D (mm): 39
• Stroke (mm): 62
• Spring O.D (mm): 76
• Spring Wire Diameter (mm): 11
• Spring Rate (lbs/inch): 325/610
• Spring Rate (kg/mm): 5.8/10.9
• Center to Center (mm): 345
• Center to Center (inches): 13 4/7
