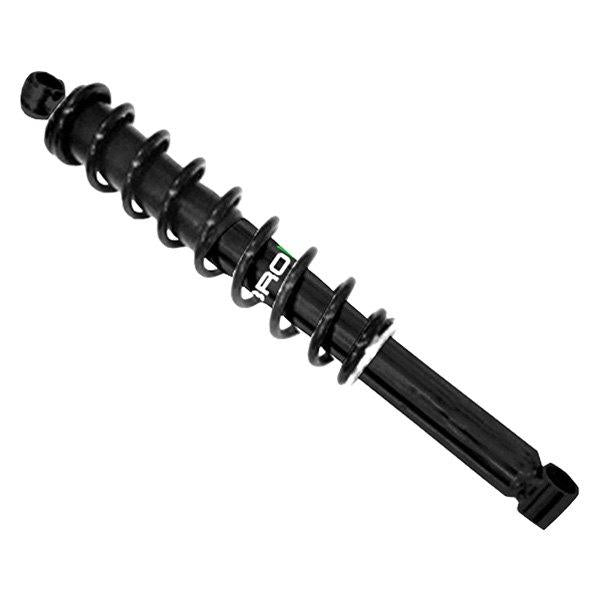

SHOCK REAR BRONCO TRX680, AU-04258, 52400-HN8-A61

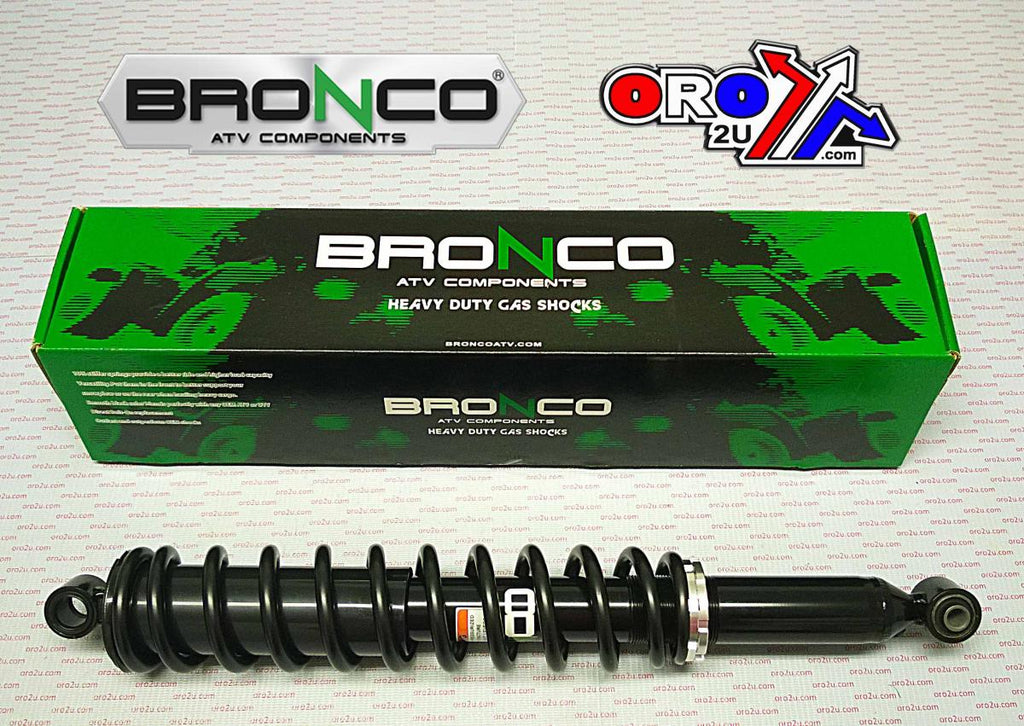

BRONCO HEAVY DUTY GAS SHOCKS AU-04258

Fits ATV Models:

• TRX650 RINCON 2003-2005
• TRX680 RINCON 2006-2014


Bronco gas shocks offer long term consistent performance over stock oil only damped shocks
10% stiffer springs provide a better ride and higher load capacity
Works great on the front when installing a snow plow
Smooth black color blends perfectly with any OEM ATV
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box
Sold individually - Includes one shock, with spring, and spring retainers

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 18
• TOP EYELET WIDTH MM: 23
• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 32

• TUBE O.D MM: 36
• STROKE MM: 118

• SPRING OD MM: 67

• SPRING WIRE DIAMETER MM: 8
• SPRING RATE LBS/INCH: 154

• SPRING RATE KG/MM: 2.75

• CENTER TO CENTER MM: 463

• CENTER TO CENTER IN: 18 2/9
