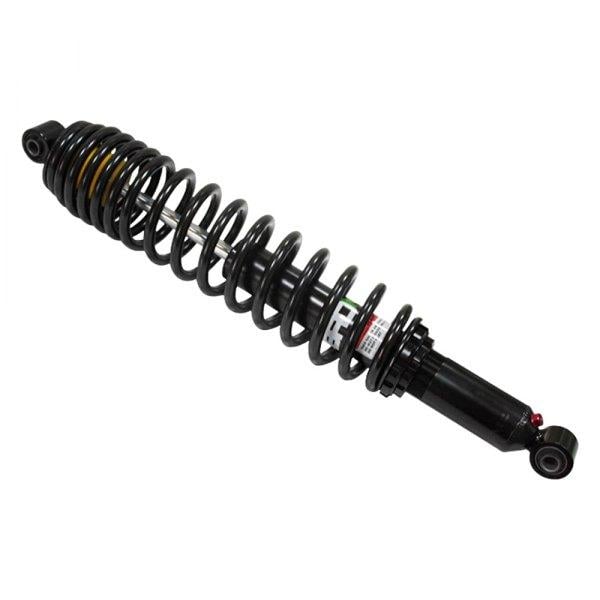

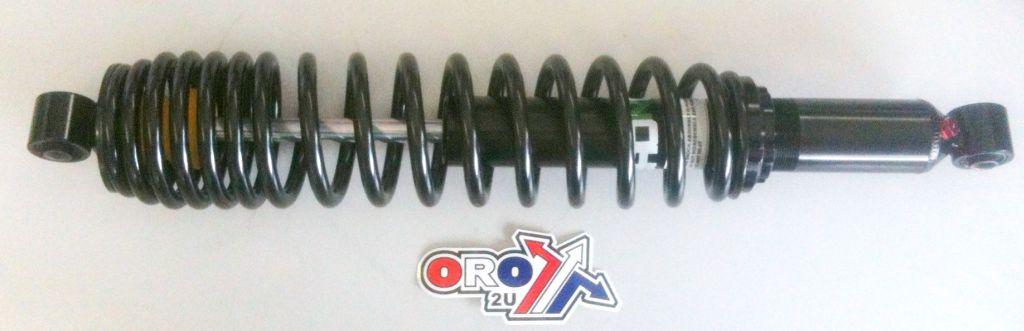

SHOCK ATV REAR 410mm BRONCO CAN-AM, OUTLANDER 330 03-05400 04-15, AU-04414, 706000391

BRONCO HEAVY DUTY GAS SHOCKS AU-04414

Fits ATV Models:Bronco gas shocks offer long term consistent performance over stock oil only damped shocks
10% stiffer springs provide a better ride and higher load capacity
Works great on the front when installing a snow plow
Smooth black color blends perfectly with any OEM ATV
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box
Sold individually - Includes one shock, with spring, and spring retainers

 CAN-AM FITMENT:

• OUTLANDER 330 STD 2003-05
• OUTLANDER 400 STD/XT 2004-15

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 32
• BOTTOM HOLE I.D MM: 12
• BOTTOM EYELET WIDTH MM: 32
• TUBE O.D MM: 38
• STROKE MM: 155
• SPRING OD MM: 79
• SPRING WIRE DIAMETER MM: 9
• SPRING RATE LBS/INCH: -
• SPRING RATE KG/MM: -
• CENTER TO CENTER MM: 464
• CENTER TO CENTER IN: 18 1/4

OEM Cross-reference Numbers Only: 706000248, 706000391
