SECONDARY DRIVE CLUTCH 2019-2020 POLARIS TURBO S XP 4 5142384 7045185 1323394

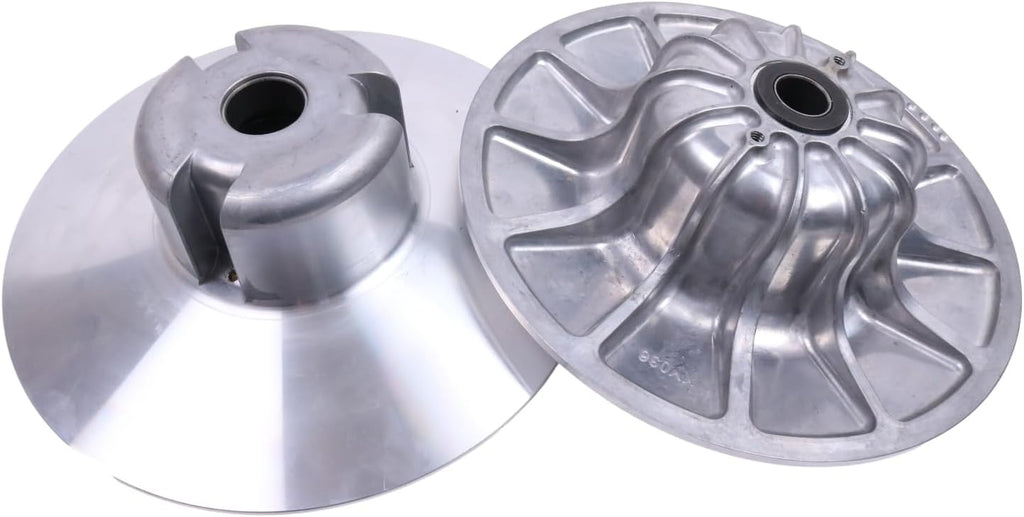

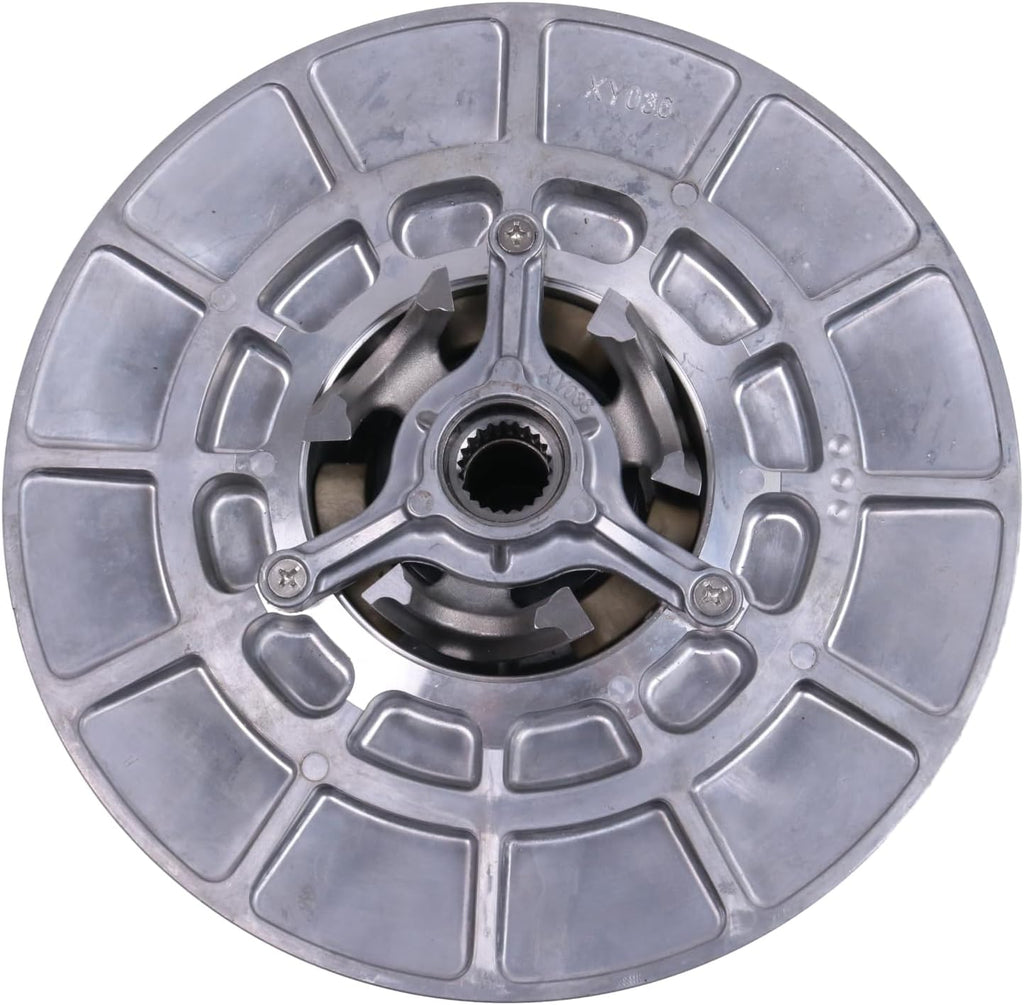

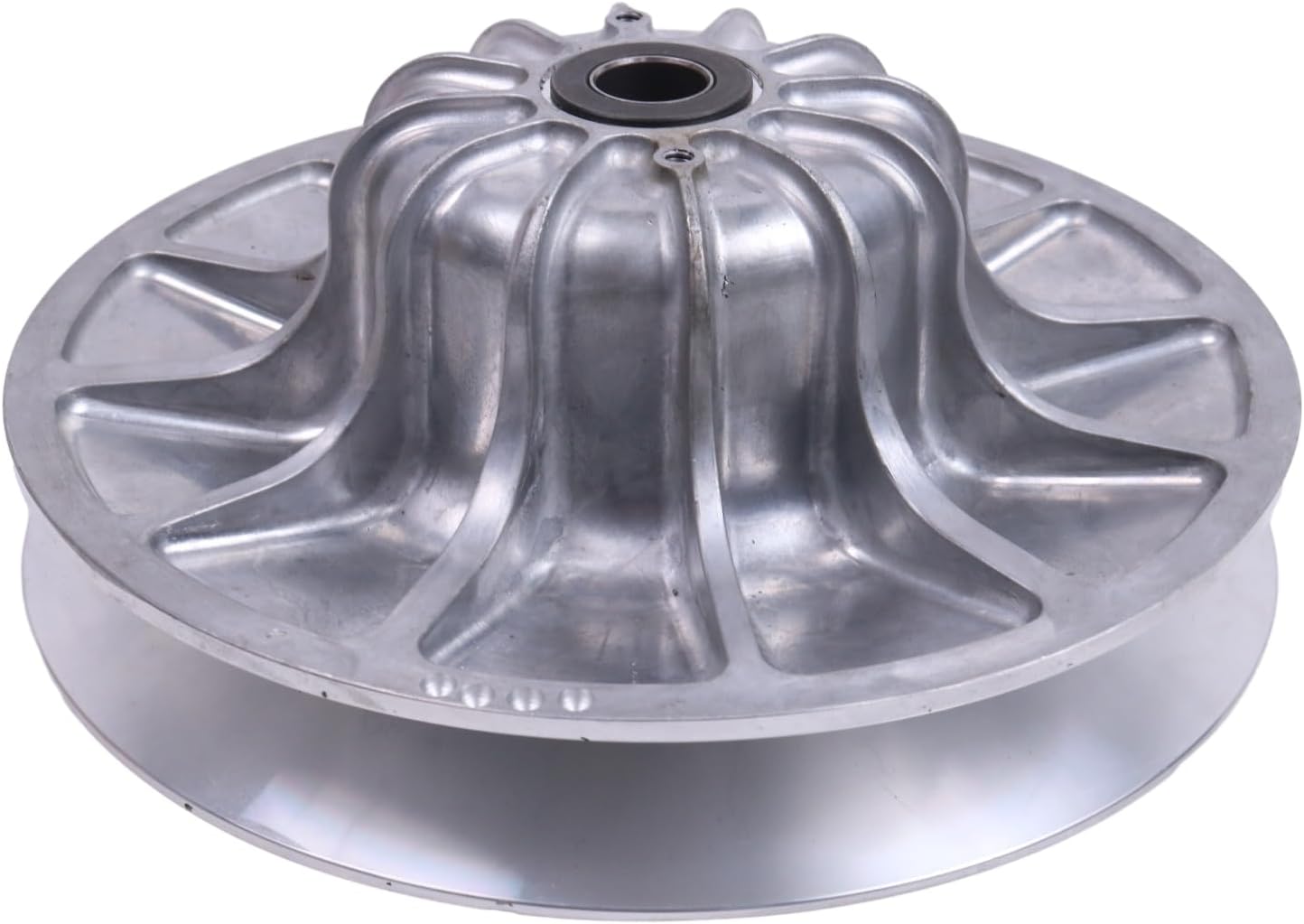

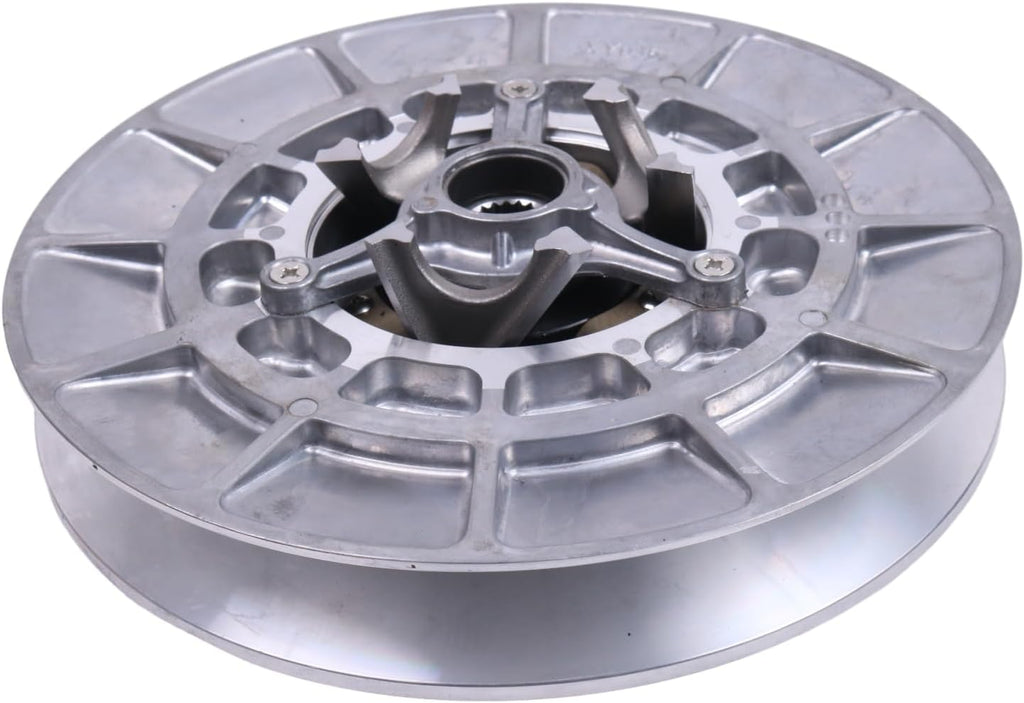

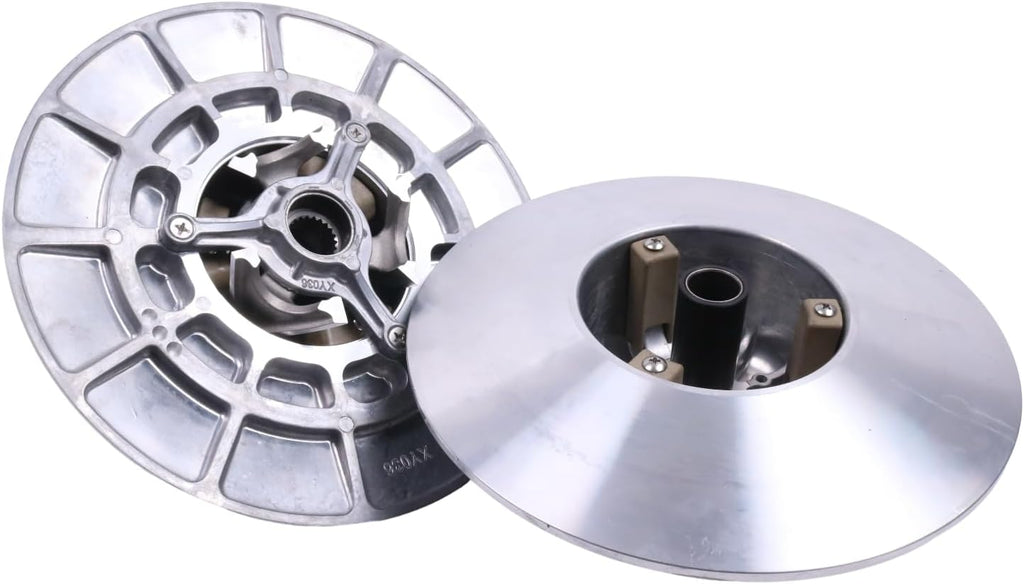

This is a aftermarket Polaris secondary (driven) clutch basic assembly used on specific RZR Turbo S calibrations. Assembly part number 1323394 is paired on the listed models with driven helix 5142384 (58/49–8.0) and clutch spring 7045185 (150–215).

Features

• OEM Polaris secondary (driven) clutch basic assembly for specified Turbo S applications
• Correct calibration on listed models uses helix 5142384 (58/49–8.0) and spring 7045185 (150–215)
• Supplied as the basic driven clutch assembly; helix and spring are service parts referenced for calibration

Specifications

• Assembly part number: 1323394 (Basic Driven Clutch Assembly)
• Driven helix part number: 5142384; ramp angles 58/49–8.0
• Clutch spring part number: 7045185; rate 150–215
• Type: Secondary (driven) clutch basic assembly

Cross-Reference OEM Part Numbers

• 1323394 replaces: 1323390, 1323368, 1323328

Vehicle Fitments

• RZR XP 4 Turbo S (2019)
• RZR XP 4 Turbo S (2020)
• RZR Turbo S 4 Velocity (2019)
• RZR Turbo S 4 Velocity (2020)
