SECONDARY DRIVE CLUTCH 04-14 POLARIS 500 570 700 SPORTSMAN 1322706

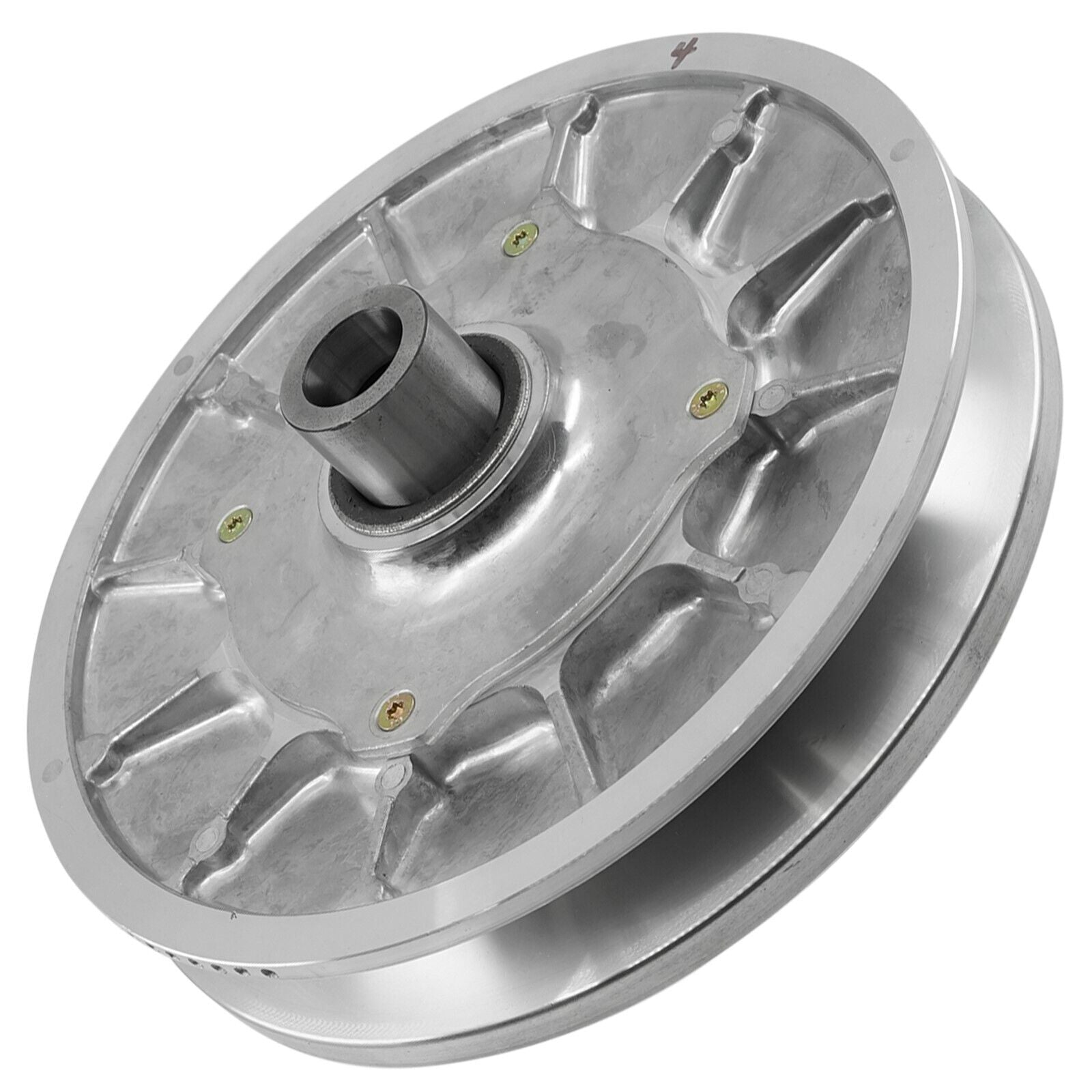

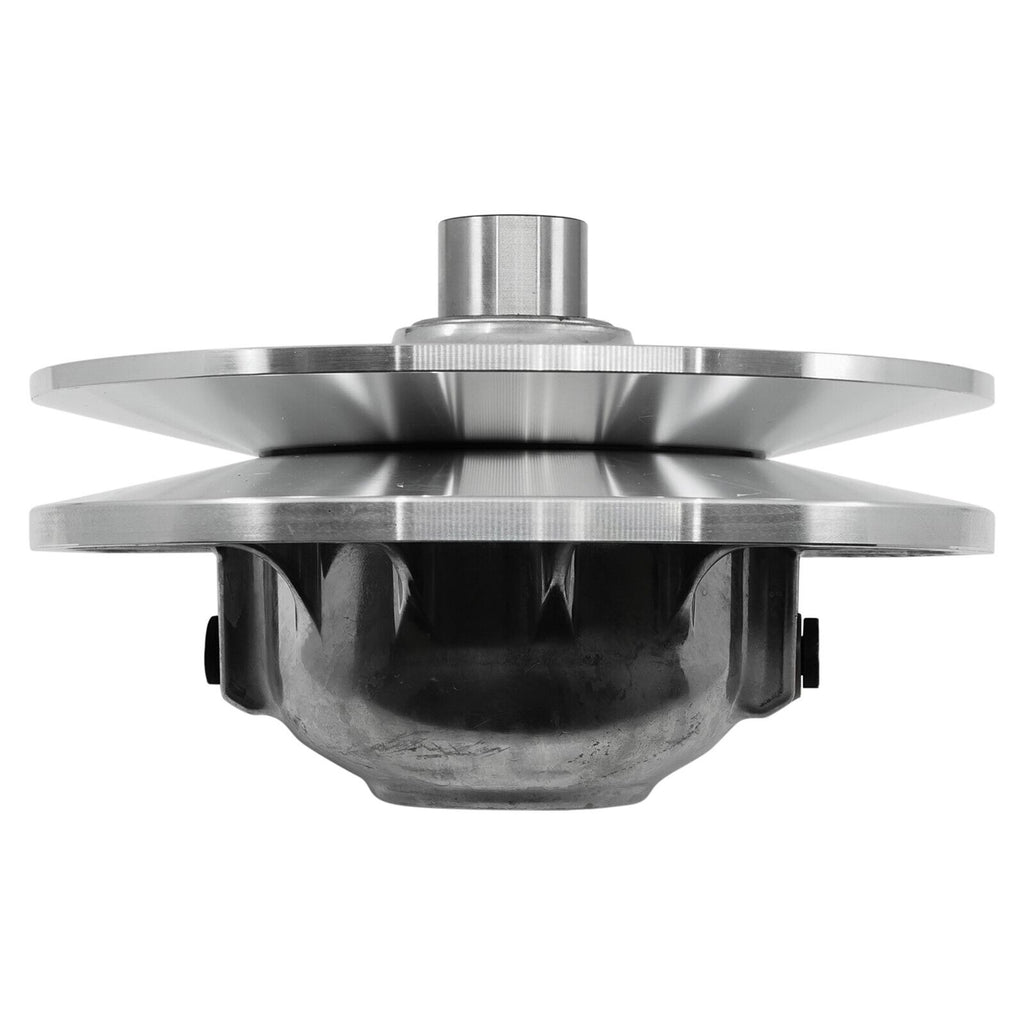

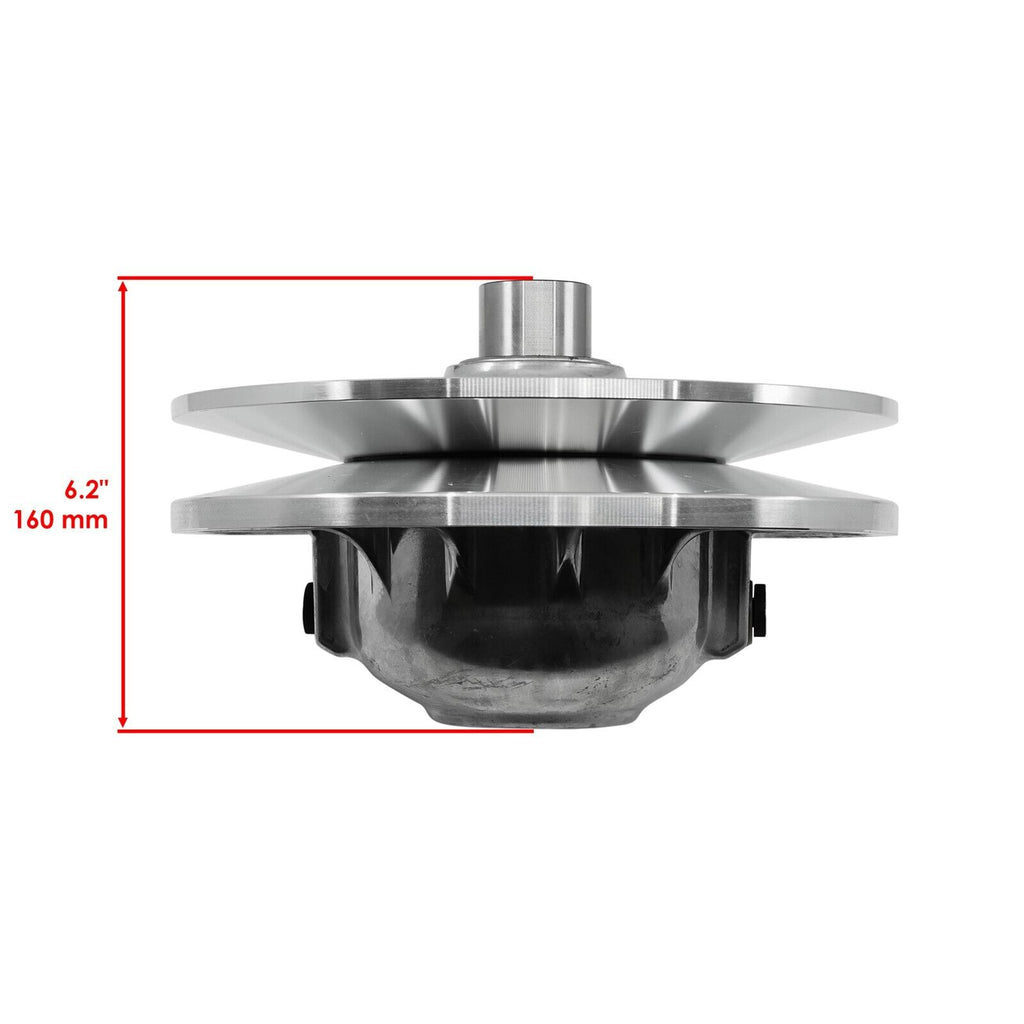

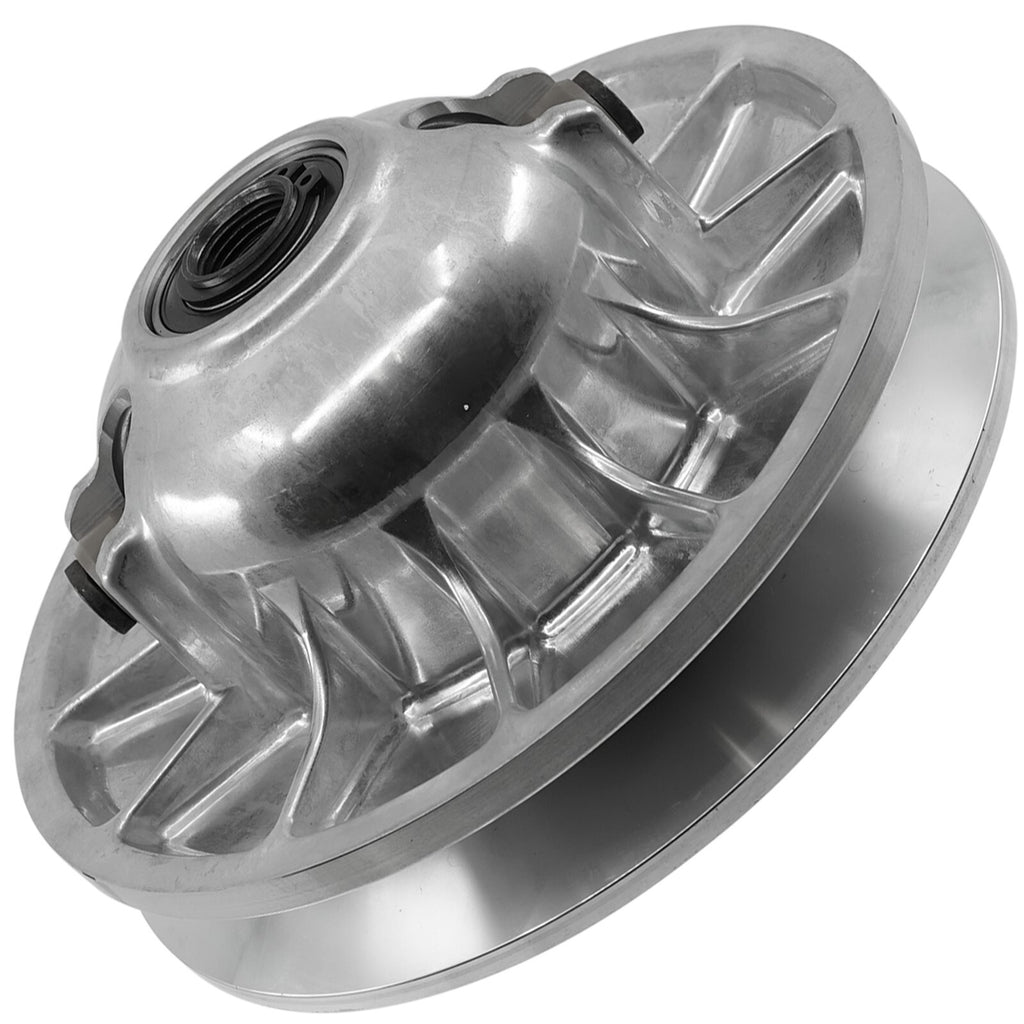

This is a genuine secondary (driven) CVT clutch assembly with Engine Braking System (EBS) and damping for select Polaris Sportsman 500, 570 and 700 models. OEM part number 1322706.

Features

• EBS-driven clutch with damped design
• Supplied as a complete pre-assembled unit (cam/helix, rollers, pins, spring, retainers and bearing installed)
• Designed for EBS-equipped Polaris PVT systems
• Uses drive belt 3211113

Specifications

• OEM part number: 1322706
• Component type: Secondary (driven) clutch, EBS, damped
• Assembly contents: Cam/helix assembly, rollers, pins, compression spring, retainers, bearing (pre-installed)
• Belt compatibility: 3211113

Cross-Reference OEM Part Numbers

• 1322419
• 1322548
• 1322551

Vehicle Fitments

• Sportsman 500 HO: 2007 (built after 08/07/2006)–2013
• Sportsman 500 HO Limited: 2007–2012
• Sportsman 500 HO Military: 2009
• Sportsman Touring 500 HO: 2008–2013
• Sportsman X2 500 (incl. EFI Quad): 2007–2009
• Sportsman 500 Forest: 2013
• Sportsman 570 / 570 EPS: 2014
• Sportsman Touring 570 / Touring 570 EPS: 2014
• Sportsman 700 EFI / Twin: 2004–2006 (via superseded assembly)
• Sportsman 700 EFI: 2007 (when fitted with Polaris Engine Braking Clutch Kit PN 2876212, which includes driven clutch 1322706)
