REV 3 THROTTLE KIT CRF, MOTION PRO 01-2910 HONDA

MOTION PRO 01-2910 Rev3 Throttle Kit

Overview

The 3rd generation Motion Pro Revolver variable rate throttle system, known as the Rev3, offers an innovative reel changing system, allowing you to customize throttle response to match your preferences and riding conditions.

Key Features

• Variable Rate Control: Includes 5 different reels for customizable throttle response. Smaller reels provide a slower throttle rate, while larger reels provide a faster throttle rate. A cam reel with a progressive response is also included.
• Slim REV3™ Throttle Housing: Designed for more room, allowing for lever clearance and easy adjustment of the throttle housing position.
• Enhanced Durability: The improved throttle stop provides greater strength and durability.
• Easy Installation: Snap-together elbows facilitate easy reel changes, and the cable boot keeps dirt and dust out, ensuring smooth operation.
• Compatibility with Grips: Compatible with Motion Pro DirtControl™ V2 Lock-On grips (01-2818 and 01-2819) and ODI Lock-On grips.
• High-Quality Cables: The kit includes black vinyl cables designed specifically for your bike. The lower section of the cables uses a 5 mm housing with a PTFE liner for reduced friction and increased flexibility. The upper section uses a 6 mm housing for solid support of adjusters.
• Billet Aluminum Inline Cable Adjusters: Eases installation and adjustment.

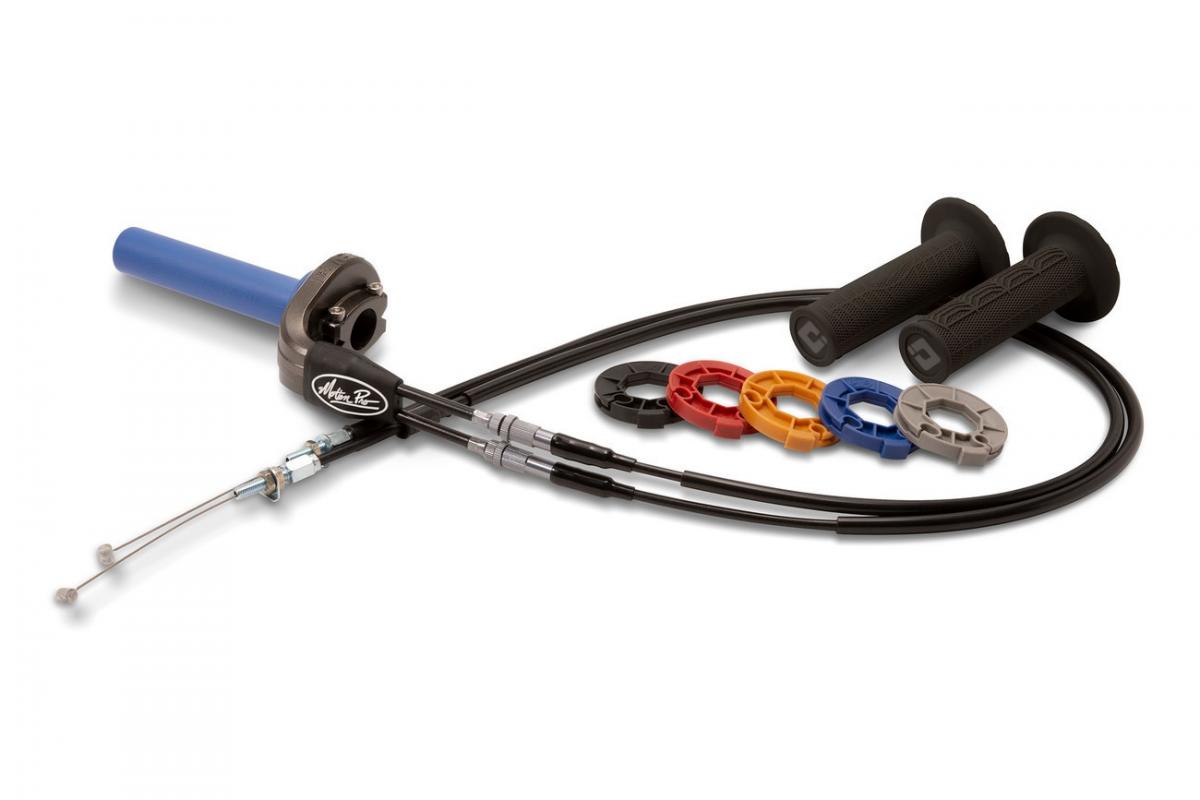

Kit Contents

• REV3™ throttle assembly with throttle tube (off-road kits include the unbreakable Titan Throttle Tube™)
• Motion Pro REV3™ black vinyl cables
• Motion Pro RoadControl™ grips (01-1131) for sportbike kits and DirtControl™ II grips (01-2818) for off-road kits
• Four interchangeable round reels (35 mm, 40 mm, 45 mm, 50 mm)
• Progressive cam reel: orange for road race profile (sportbike kits), gray for off-road profile (off-road kits)

Compatibility

• Honda CRF250R (2004-2009)
• Honda CRF450X (2005-2016)
• Honda CRF250X (2004-2013)
• Honda CRF450R (2002-2008)
