REV 2 THROTTLE KIT KTM, MOTION PRO 01-2723, 14-K307

Motion Pro's Rev2 throttle kit will change how much twist is necessary for the throttle to completely open the gas on your motorcycle. The larger the reel is, the shorter the twist. Each of the included reels will shorten the twist by about 10 degrees. If your stock throttle has a 40mm reel and stock twist is 90 degrees (1/4 turn), the 45mm reel will reduce the twist to 80 degrees and the 50mm reel will reduce it to 70 degrees. The 35mm reel will increase the throttle twist to approximately 100 degrees.

Another unique part of the kit is a cam reel with a progressive profile that allows the throttle to act like a sensitive, long twist throttle during the initial small throttle openings for precise control and then acts like a more aggressive short twist throttle at large throttle openings, progressively shortening the amount of twist needed to reach full throttle.

• Second-generation throttle system from Motion Pro
• Patent-pending design is easy to install and maintain
• Innovative reel changing system lets you tailor the throttle rate to riding conditions and rider preference
• Ultra compact reel housing with snap-together elbows make it easy to install and change reels
• Requires less handlebar space than Revolver throttle kit for additional lever and control clearance
• Use smaller reels for slower throttle rate and larger reels for faster throttle rate
• Included cam reel provides progressive throttle response preferred by some riders
• Unique reel design allows fast reel changes
• Cable boot keeps dirt and dust out for reliable and smooth operation
• Billet aluminum in-line cable adjusters for easy installation and adjustment
• Lower section of cables use 5mm housing with PTFE liner for reduced friction, increased routing flexibility and lighter weight

• Upper section of cables use 6mm housing to provide solid support of adjusters

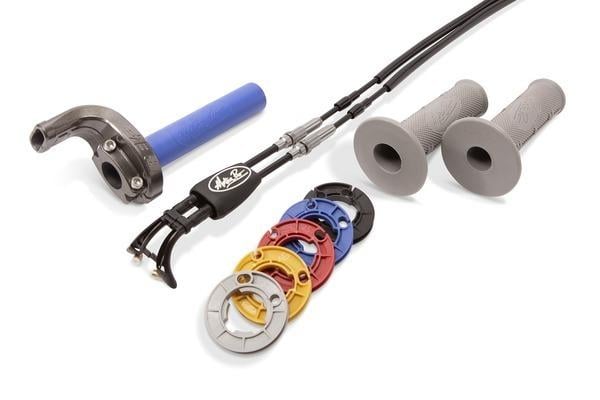

• Rev2 Throttle Assembly with Motion Pro Titan throttle tube

• Motion Pro black vinyl cables specifically designed for your bike

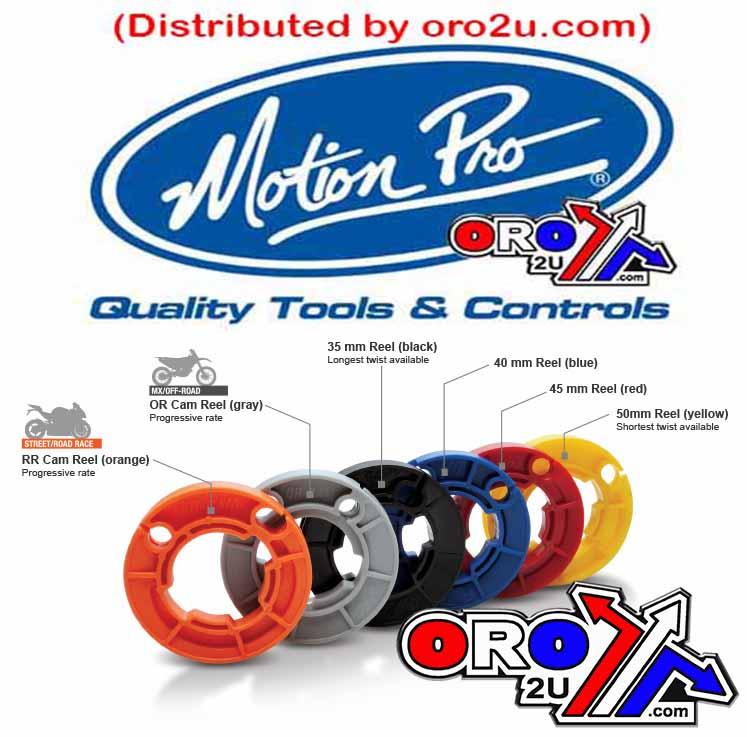

• 5 interchangeable reels: 35, 40, 45, 50mm and gray cam reel
• Motion Pro Dirt Control grips
• Rev2 throttle equipped decal set
• Printed color instructions
