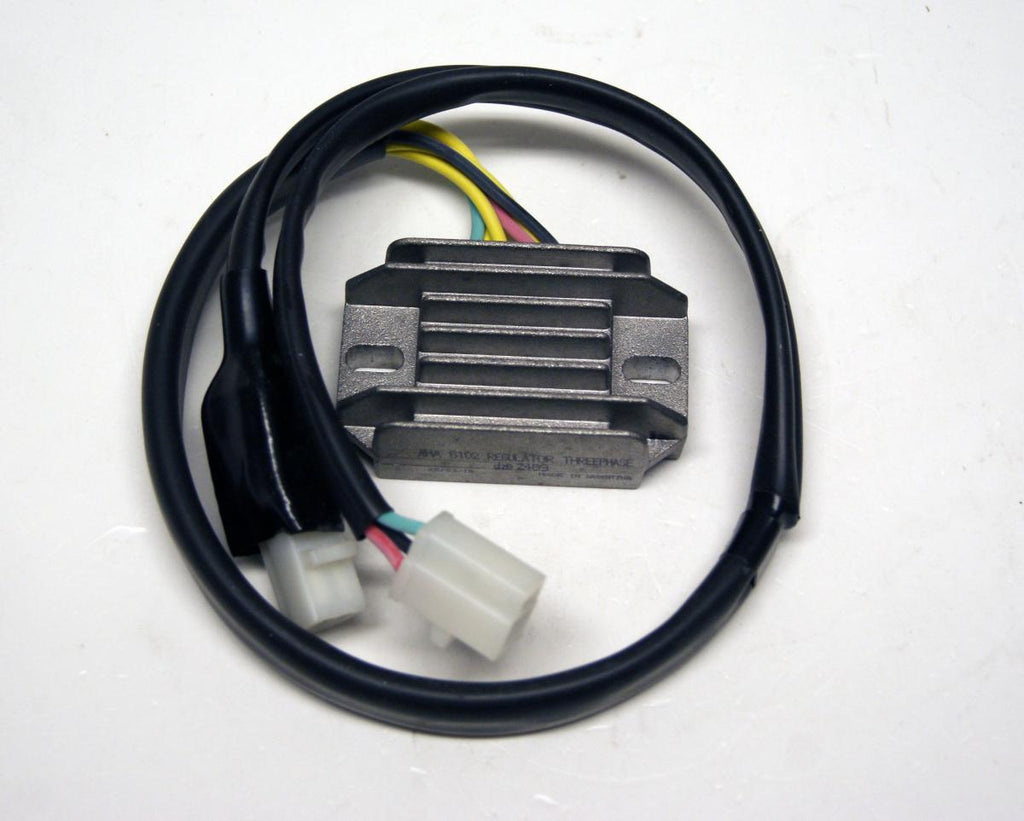

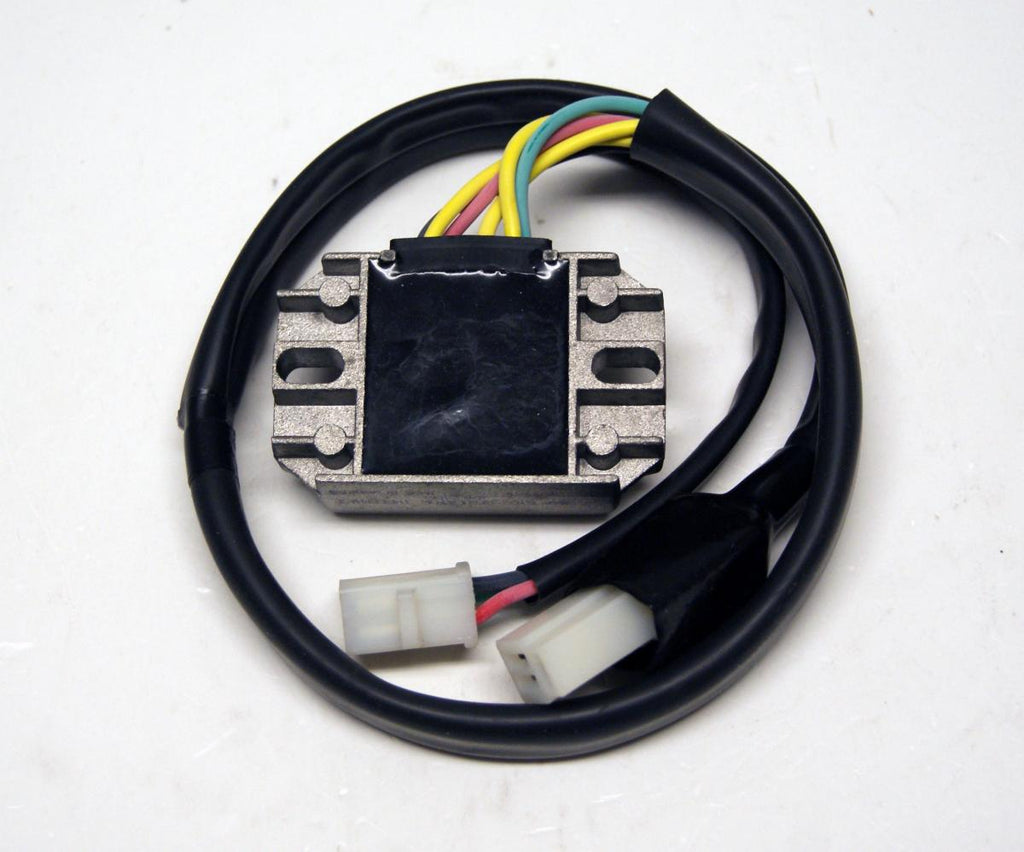

REGULATOR 12v NX250 88-93, AHA6102 31600-KW3-000, -010

REGULATOR 12v NX250 88-93, AHA6102 31600-KW3-000, -010

£156.73 GBP
Taxes included. Shipping calculated at checkout.

Honda
NX250 1988-1993,

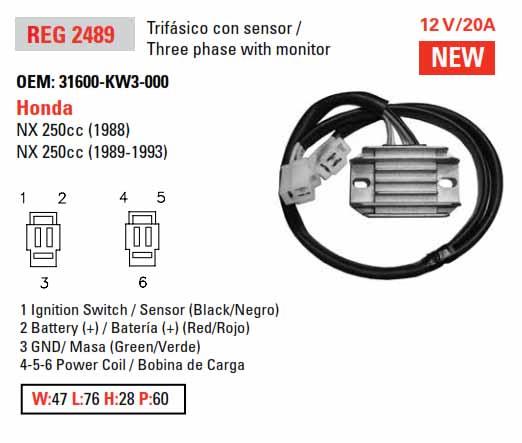

Technical specifications
Tension (voltage) 12 [V]
Corriente (current) 20 [A]
Tipo de entrada (input type) TRIFASICO
Tecnologia (technology) SCR
Tipo de salida (output type) CC
Alto (height) 28 [mm]
Ancho (width) 47 [mm]
Largo (length) 76 [mm]
Entre centro (pitch) 60 [mm]
Con sensor (with sensor) SI


dze products that apply to
Brand Model Version Displacement Year OEM
Honda NX
250 1988 31600-KW3-000
Honda NX
250 from 1989 to 1993 31600-KW3-010


- Meets or exceeds OEM quality.
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale
- DZE Racing products are a high quality replacement part and carries our guarantee of your satisfaction.
- Note. No Returns on Electrical Parts.

Part No. 44-6100.AH (oro2u.com)

Voltage Regulator / Rectifier 12v AHA6102
Cross reference numbers ONLY.
31600-KW3-000 HONDA, 31600-KW3-010 HONDA, ESP2489 2489
