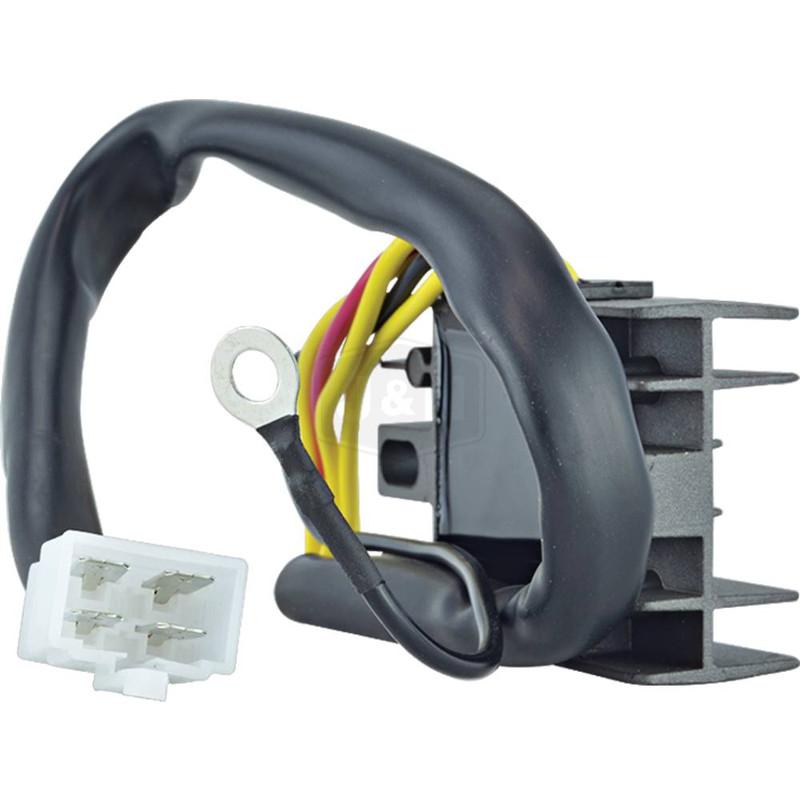

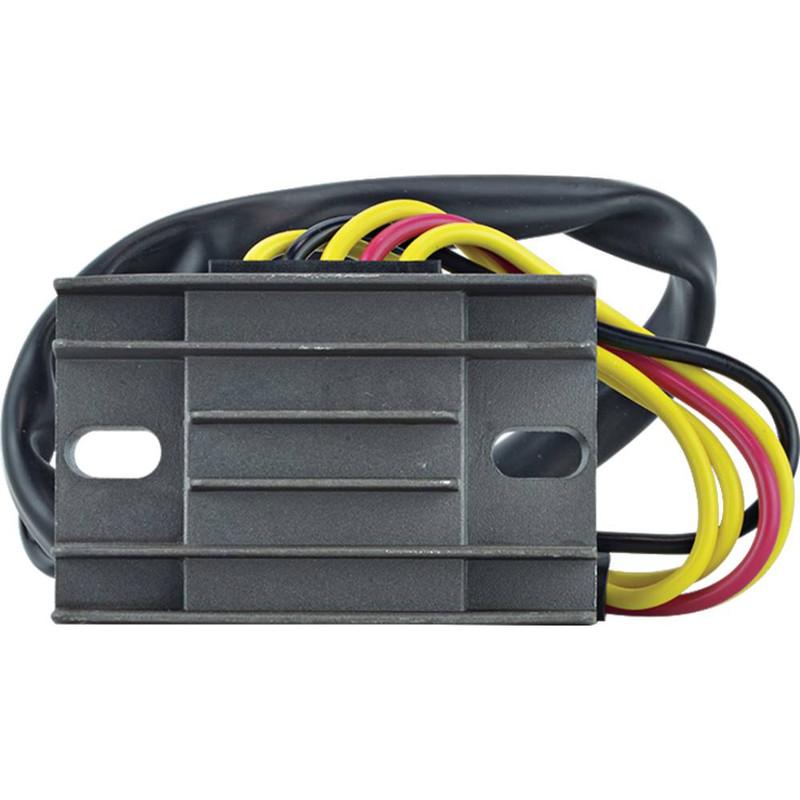

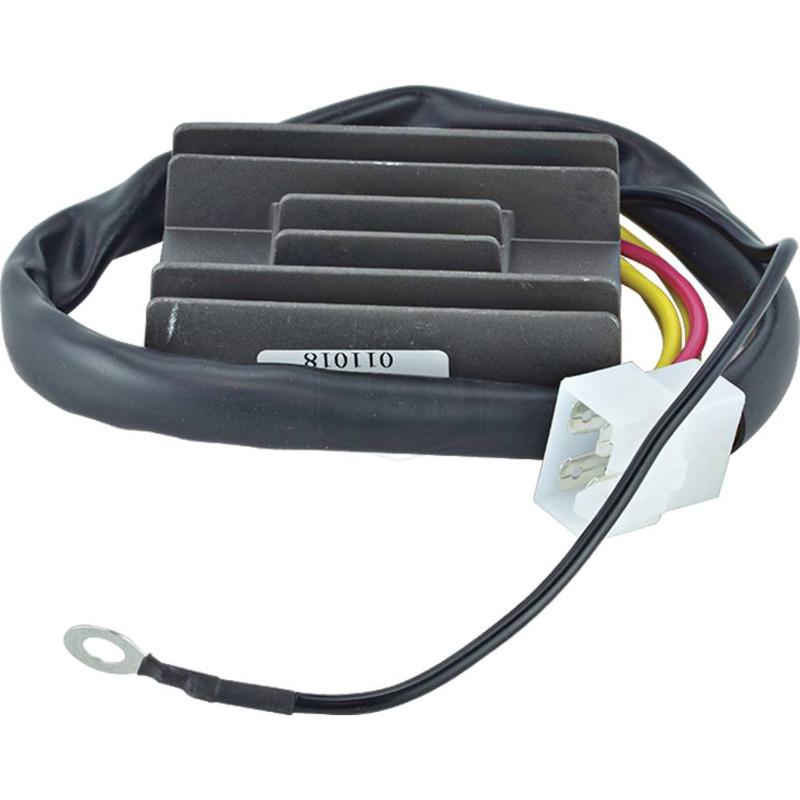

REGULATOR 12V, ARROWHEAD 230-58241, 32800-05300, 32800-05310, 32800-05320, SUZUKI GN125 1982-1983, GN250 1982-1988

12V Regulator suitable for Suzuki GN125 and GN250 models. This high-quality replacement part ensures reliable voltage regulation and seamless compatibility with OEM components. Designed for durability and optimal performance, it is factory-tested for consistent operation.

Features:

• Meets or exceeds OEM quality standards.
• Direct OEM replacement for easy installation.
• Engineered to handle increased power loads.
• Includes brush holder for added convenience.
• Fully factory-tested to ensure reliability.

Specifications:

• Voltage: 12V
• Polarity: Negative
• Adjustable: No
• Dimensions: 76.3mm (L) x 47.6mm (W) x 25.6mm (T)
• Plug Connections: (3) Yellow (Charging Coil), (1) Red (B+), 17-3/8 inches overall length
• Single Wire: Black (Ground) with 6.4mm eyelet, 9.5 inches overall length
• Mounting Holes: (2) Oval, 73.0mm (Outer), 48.4mm (Inner)

Cross-Reference OEM Part Numbers:

• ARROWHEAD: 230-58241
• Suzuki: 32800-05300, 32800-05310, 32800-05320

Vehicle Compatibility:

• Suzuki GN125: 1982, 1983, 1991-1993
• Suzuki GN250: 1982-1988
