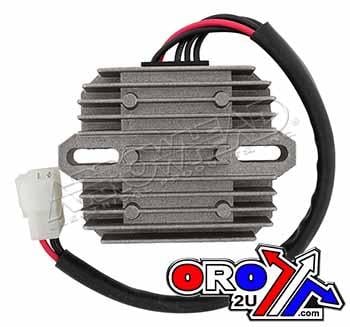

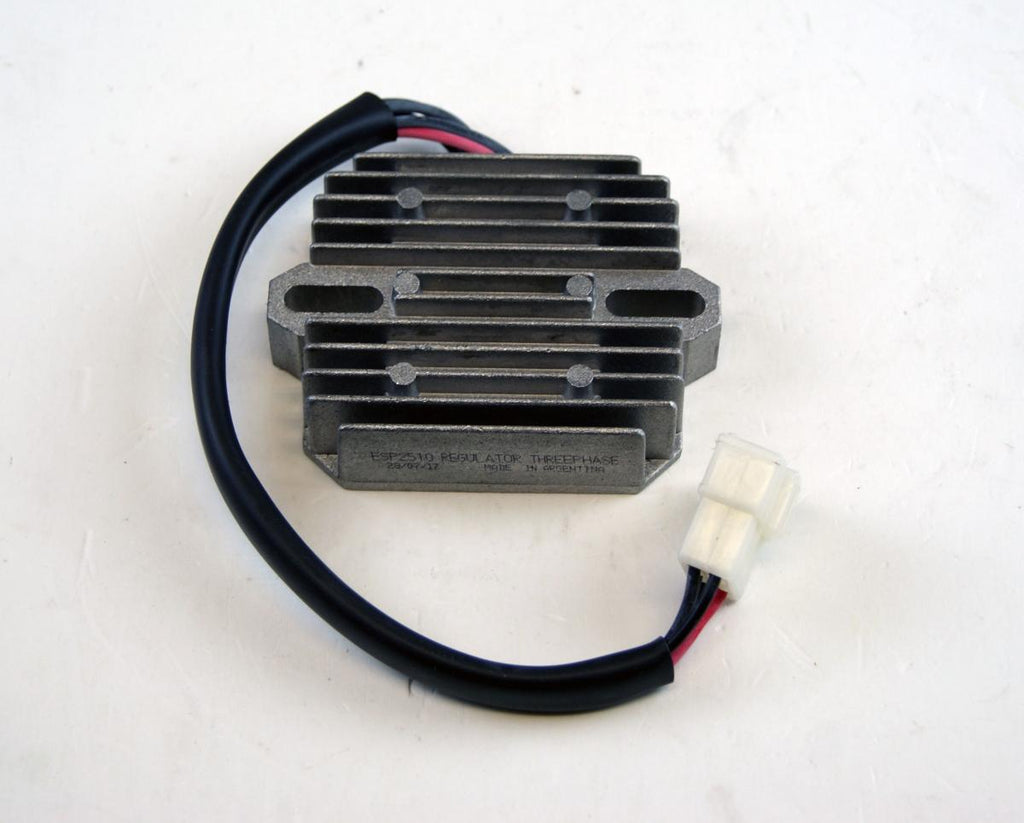

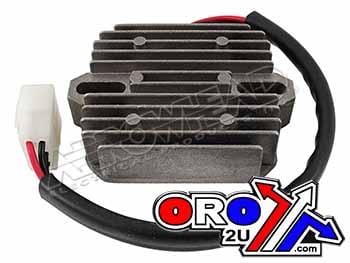

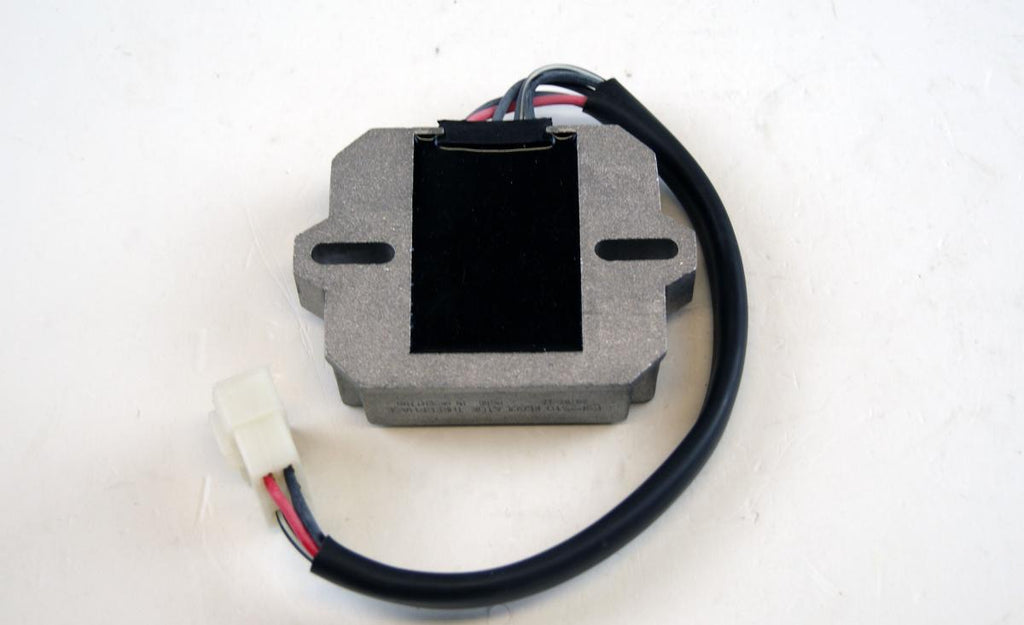

Regulator 12V / 35A Triumph, Arrowhead ESP2510 230-42027, T1300888 / T1300889 / T1300819

This voltage regulator/rectifier is a high-quality replacement part designed for a wide range of Triumph models. Built to meet or exceed OEM specifications, it ensures reliable performance and durability. With precision manufacturing and testing, this unit is a direct OEM replacement that fits stock mounting locations and supports increased power loads.

Features:

• Voltage: 12V
• Current: 35A
• Input Type: Three-phase (TRIFÁSICO)
• Output Type: Direct Current (CC)
• Technology: SCR
• Dimensions: 107mm (Length) x 80mm (Width) x 28mm (Height)
• Mounting Pitch: 80mm
• Integrated Sensor: No

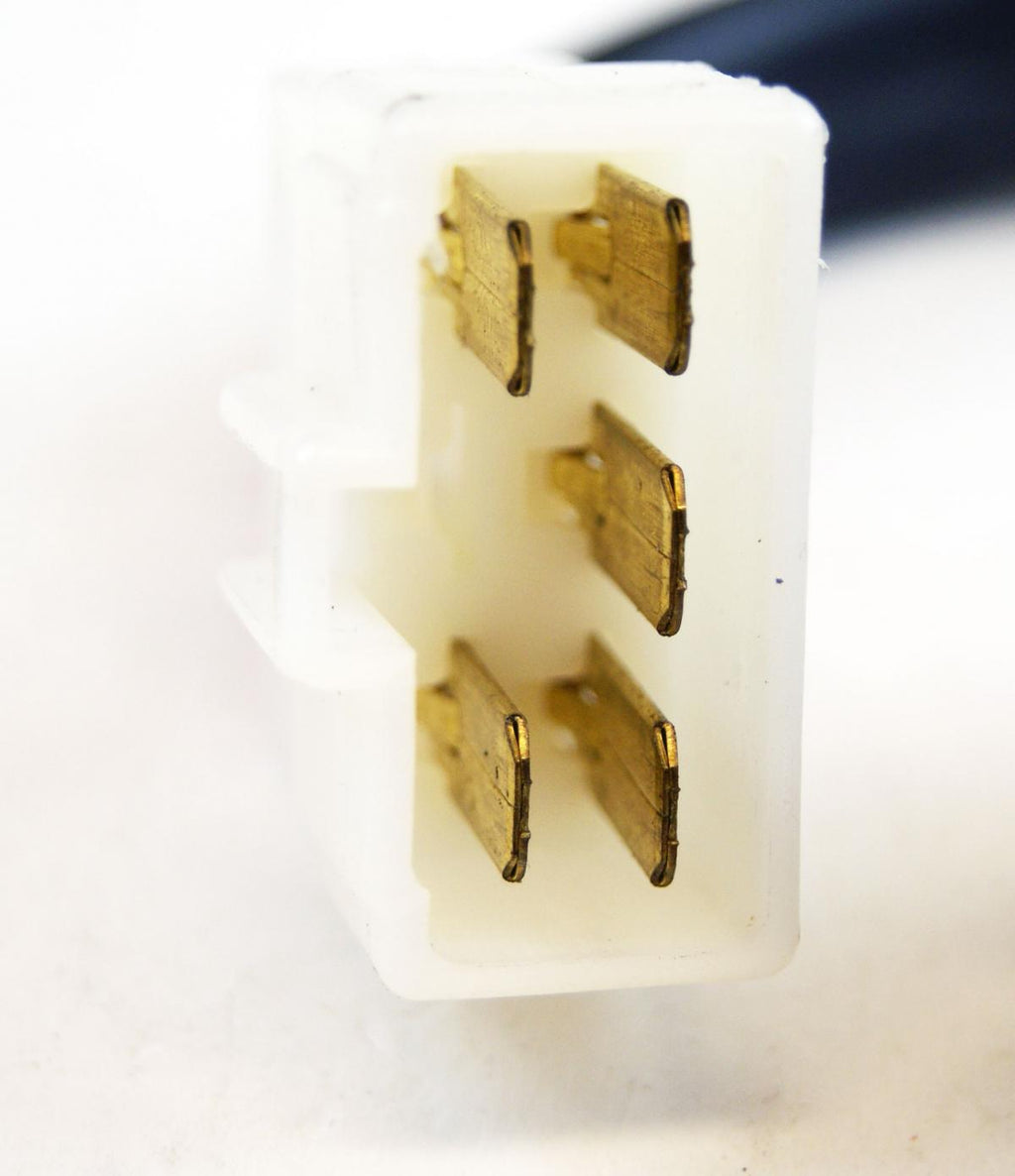

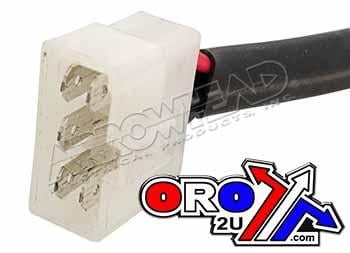

• 5-Pin Plug Configuration: Top (B+, Open, Ground), Bottom (3) Charging Coil
• (2) Oval Mounting Holes: 97.8mm (Outer), 5.35mm (Inner)

Cross-Reference OEM Part Numbers:

• ESP2510 ARROWHEAD (OEM)
• 230-42027 J & N
• T1300888 TRIUMPH
• T1300889 TRIUMPH
• T1300819 TRIUMPH

Vehicle Compatibility:

Triumph Models:

• 2002–2007 America Carb (790cc)
• 2008–2017 America EFI (865cc)
• 2002–2005 Bonneville T100 Carbs (865cc)
• 2008–2017 Bonneville T100 EFI (865cc)
• 2008–2017 Bonneville EFI (865cc)
• 2006–2008 Scrambler Carb (865cc)
• 2006–2017 Scrambler EFI (865cc)
• 2002–2007 Speedmaster Carbs (865cc)
• 2007–2017 Speedmaster EFI (865cc)
• 2008–2017 Thruxton 900 EFI
• 2000–2003 TT600 (600cc)

Additional Fitments:

• 2011–2016 America 865cc
• 2014–2016 America LT 865cc
• 2011–2015 Bonneville (865cc)
• 2011–2015 Bonneville T100 (865cc)
• 2015 Bonneville Newchurch (865cc)
• 2011–2015 Bonneville SE (865cc)
• 2011–2016 Scrambler (865cc)
• 2011–2016 Speedmaster (865cc)
• 2011–2015 Thruxton 900

Part Number: ESP2510
