REAR SHOCK SEAL BLOCK 16.0x46, ALLBALLS 37-1004 HONDA KAW SUZ

Shock Seal Head Kit - ALLBALLS 37-1004 (1314-0043)

Product Features:

• Complete assemblies, ready to install into the shock body.
• Made from 6061-T6 aluminum and the same custom elastomer as Moose Racing fork seals.
• All have air bleed holes to help remove air from the oil reservoir during installation.
• Double-lip oil seal design keeps out dirt and reduces friction.
• Some models have updated designs for easier installation.

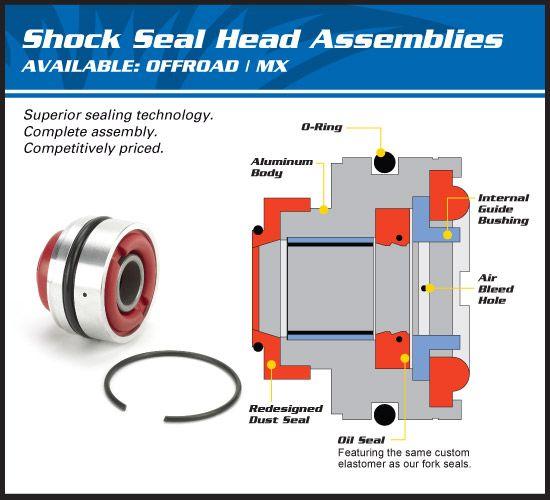

• Kits include: aluminum body, dust seal, bushing, oil seal, O-ring, internal guide bushing/washer, snap ring, and top-out bumper.
• Made in the U.S.A.

Fitment:
Honda:

• CR125R 1993-2007
• CR250R 1995-1996
• CR500R 1995-2001

Kawasaki:

• KLX450R 2008-2009
• KX125 2000-2005
• KX250 2000-2007
• KX250F 2004-2005
• KX450F 2006-2008

Suzuki:

• RMZ250 2004-2006

Yamaha:

• YZ250F 2012-2013

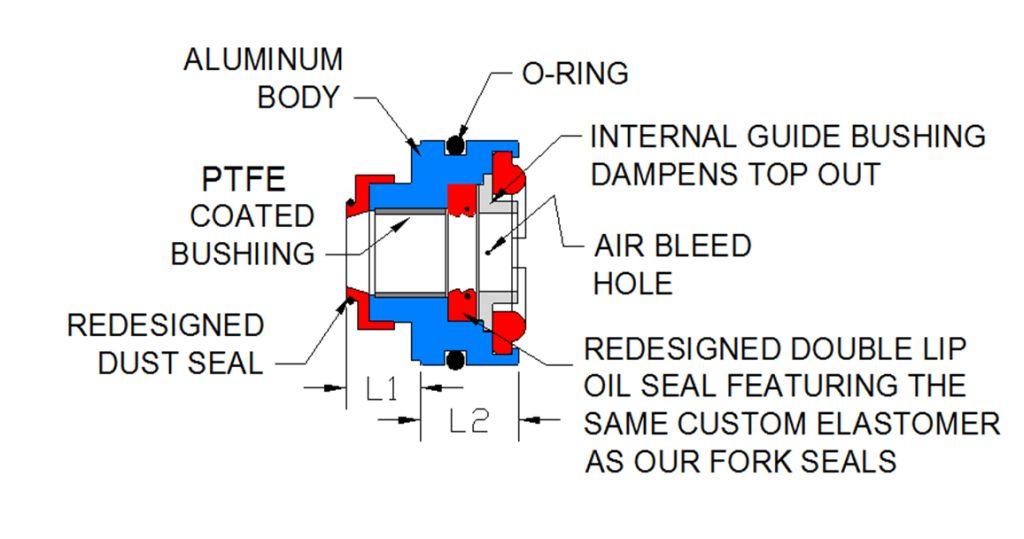

Dimensions:

• Rod Diameter: 16.00mm
• Outside Diameter: 46mm
• Length: 38.50mm
• L1 (Length 1): 17mm
• L2 (Length 2): 21.5mm
• Snap Ring: 46mm x 2mm (round)

Part No.: ALLBALLS 37-1004
ORO Part No.: 29-653.A (Available at oro2u.com)
