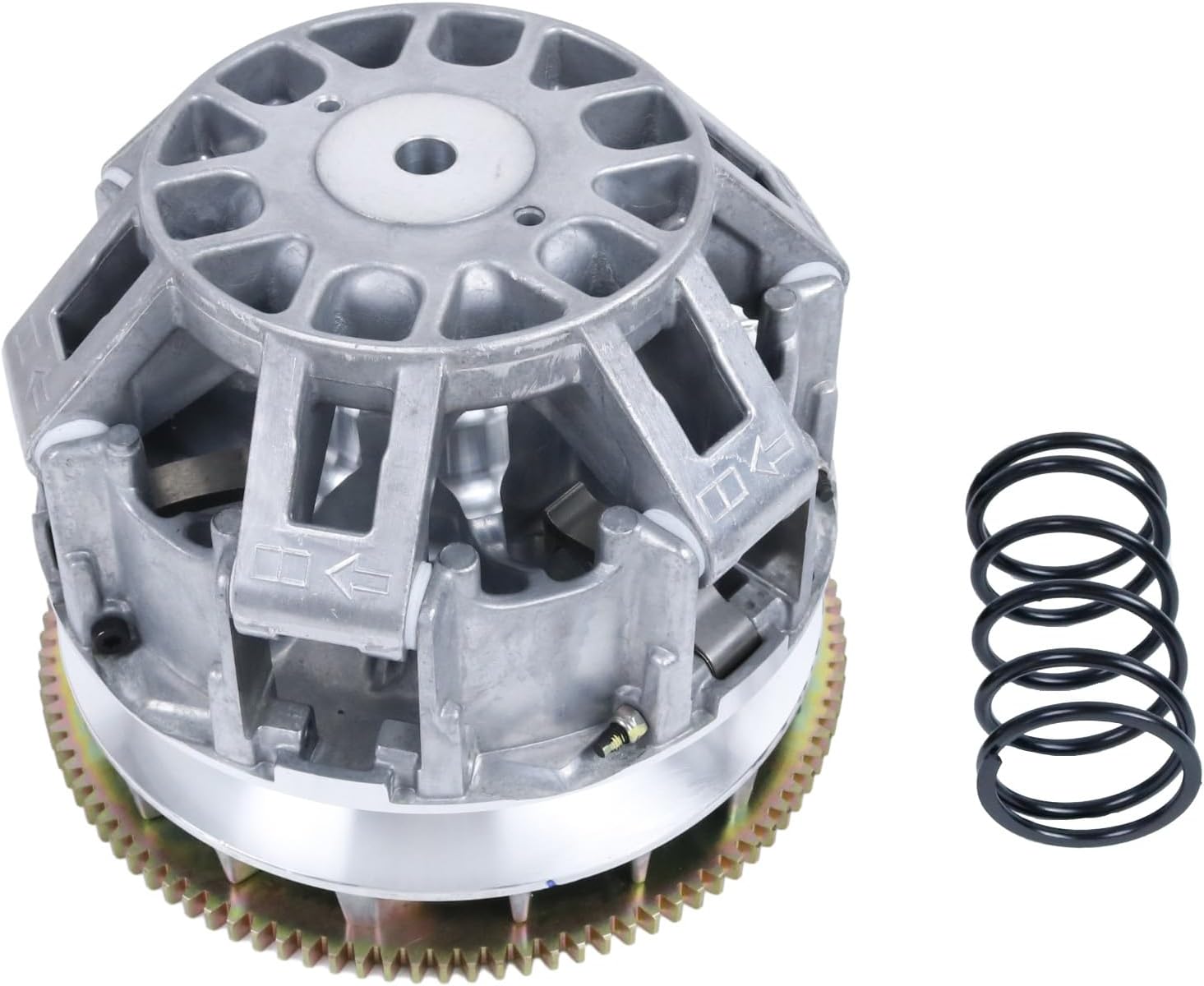

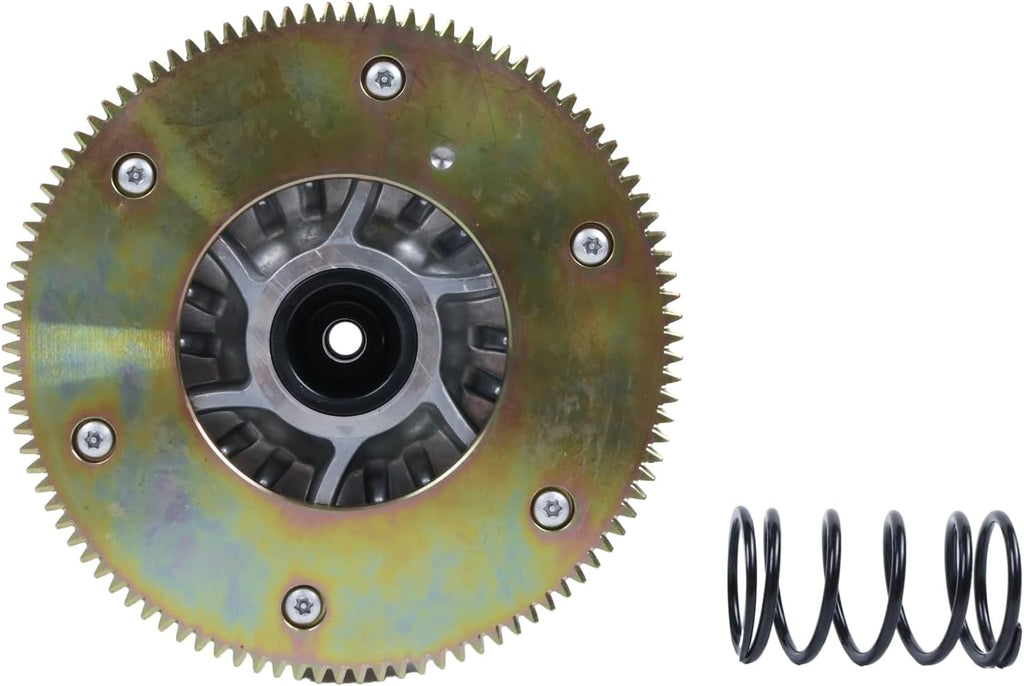

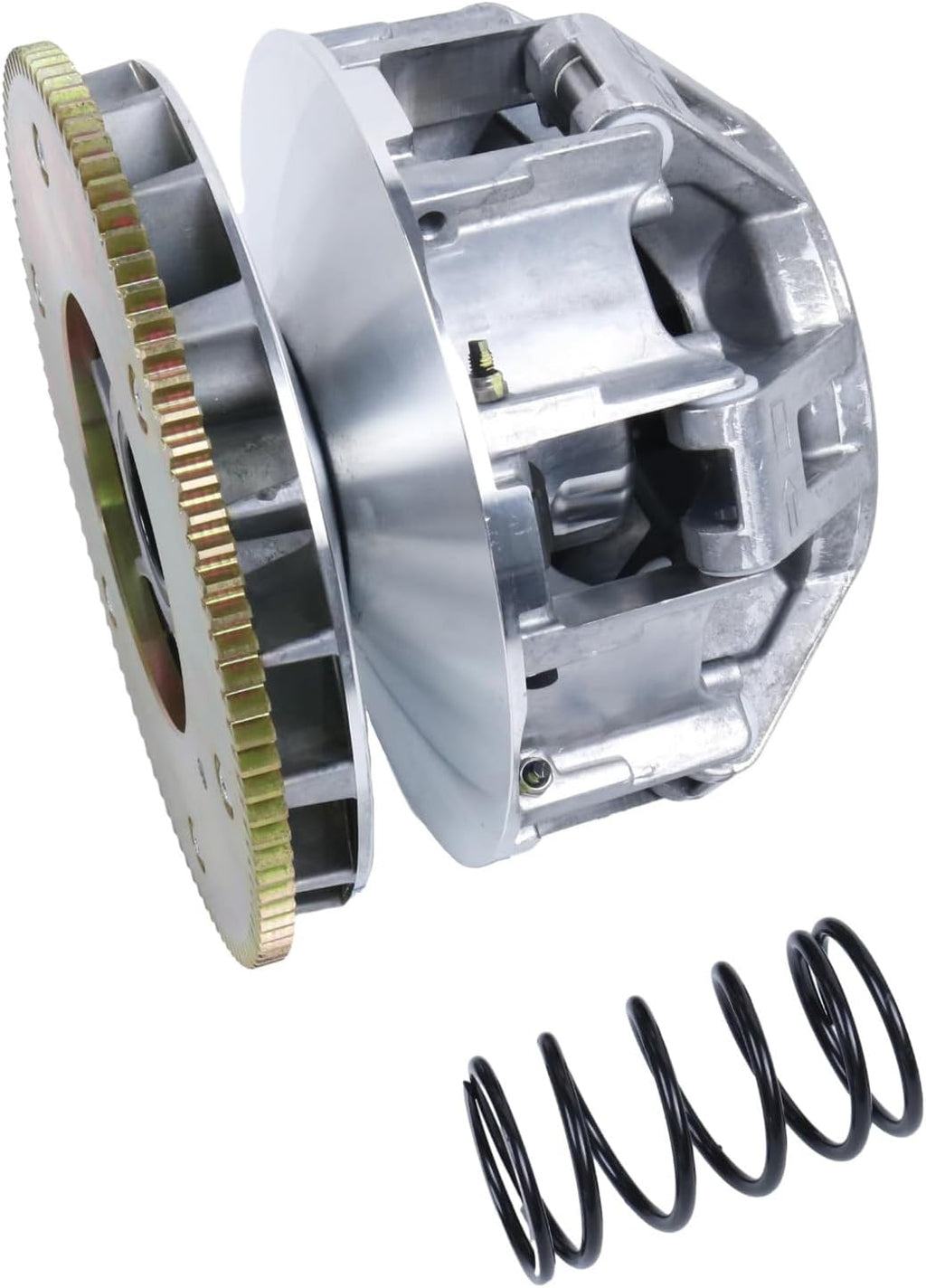

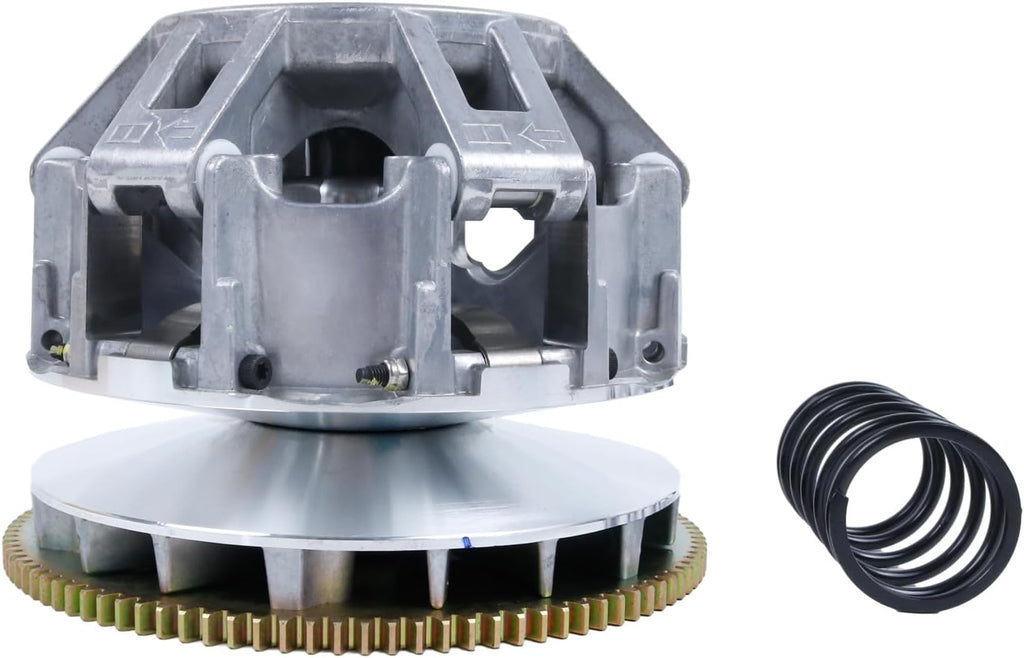

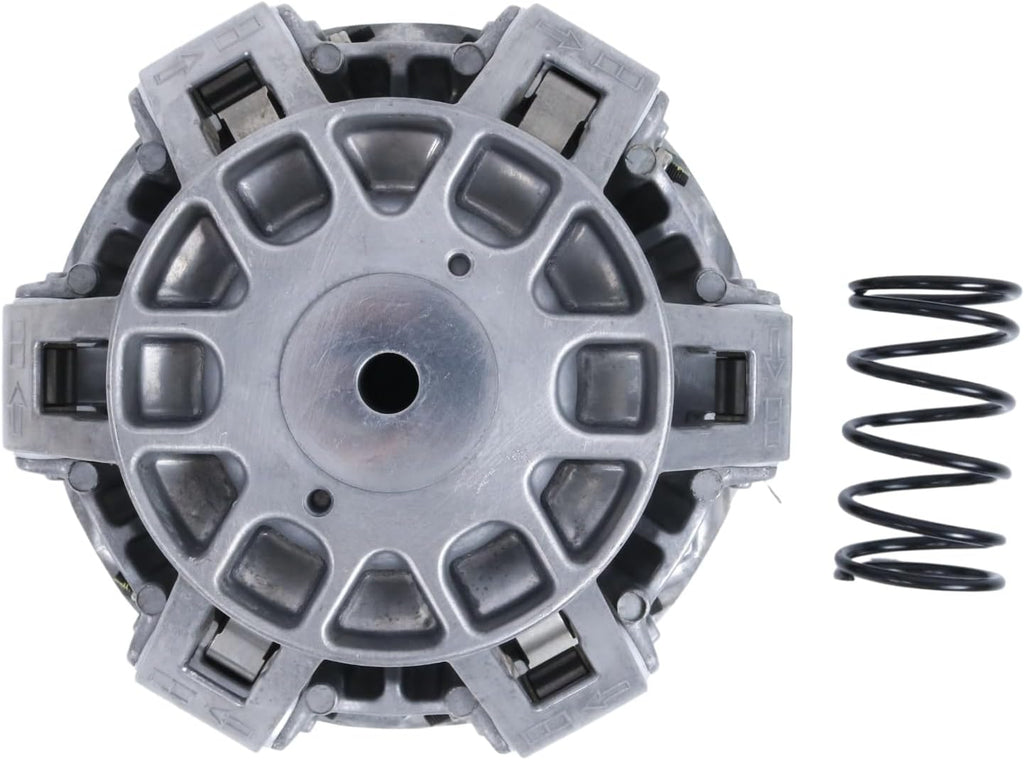

Primary Drive Clutch with Gear 03-22 Can-Am 400 450 500 650 Bombardier Outlander 420280247

Primary drive clutch assembly with gear referencing OEM 420280247 for Can-Am/Bombardier applications, including Outlander MAX 400; also commonly sold for Outlander 400/450/650 families where listed. Verified against OEM and aftermarket catalogues for fitment and cross-reference equivalence

Features

• Primary (drive) CVT clutch assembly with integrated gear.
• Direct-fit replacement referencing the OEM numbers listed below.
• Suitable for CVT-equipped models where specified.

Specifications

• Part type: Primary drive clutch (CVT)
• Main OEM reference: 420280247 (inner half assembly per BRP catalogue)
• Assembly is commonly listed with related outer/inner component references: 20280313, 420280467, 711280148, 420280310 (outer-related); 420280245, 420281390, 420248424, 420280522 (inner-related).

Cross-Reference OEM Part Numbers

• Inner half equivalents/supersessions: 420281390, 420280245, 420248424, 420280247, 420280522
• Outer half/related references commonly listed with this assembly: 20280313, 420280467, 711280148, 420280310, 20280245

Vehicle Fitments

• Outlander 400 (all packages including EFI, XT, MAX, base) 2003–2015
• Outlander 450 (all packages including L, 6×6, XT, MAX, base) 2015–2022
• Outlander 330 2003–2005
• Quest 500 & 650 including Quest XT & Quest MAX 2002–2005
• Traxter 500, 650 & 650 XT (CVT models only) 2005
