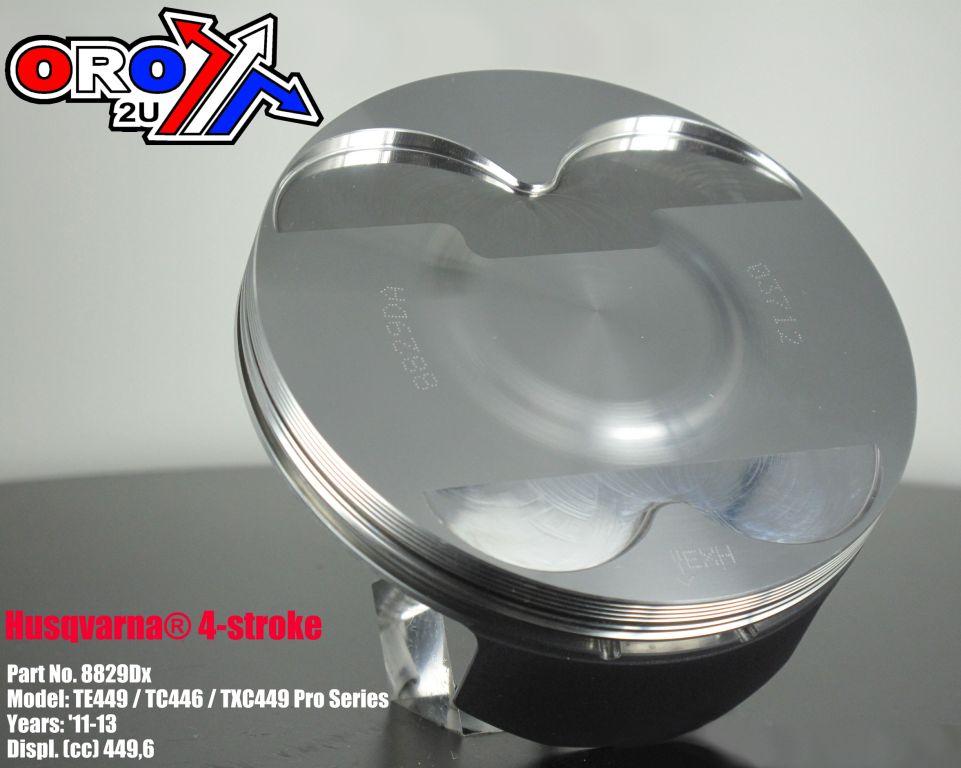

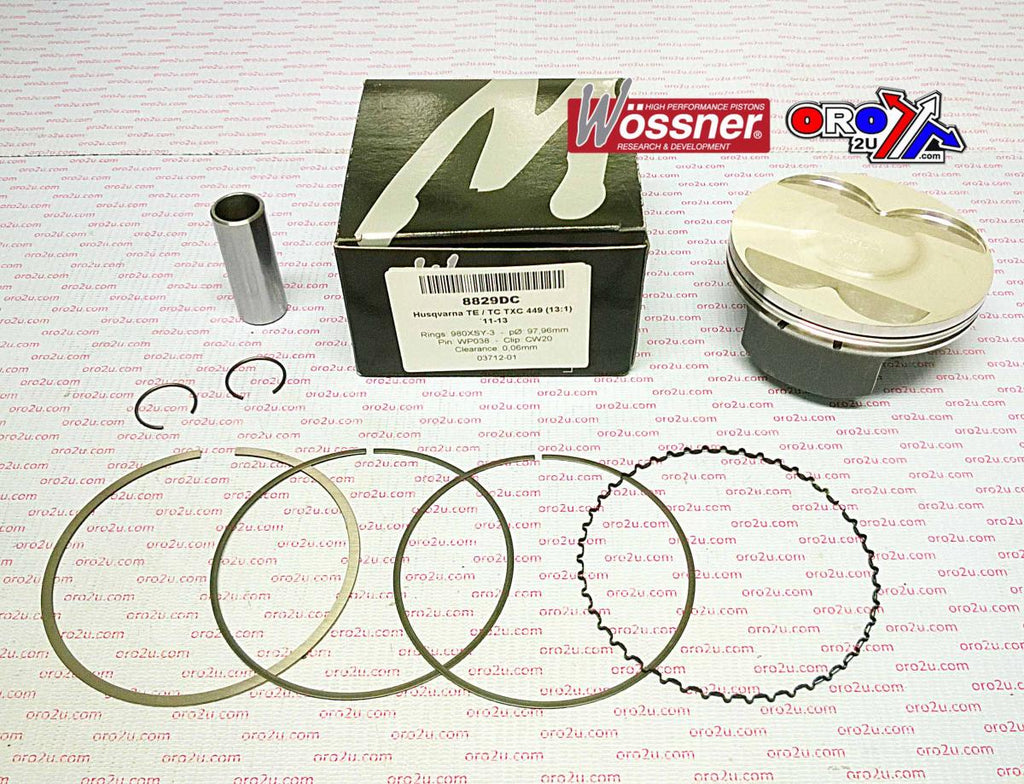

PISTON KIT11-13 TE TC449 98.00, HUSQVARNA WOSSNER 8829DB

Wossner forged piston kit 8829DB is a +0.01mm oversized Pro Series piston with a 98.01mm bore (measured at 97.95mm), specifically designed for Husqvarna TE449, TC446, and TXC449 models from 2011 to 2013. Made in Germany, this high-performance piston provides enhanced durability, heat management, and compression for demanding four-stroke engines.

Features

• Forged construction ensures exceptional strength and performance

• Elliptical design allows for uniform pressure distribution during heat expansion

• Efficient heat transfer from the combustion chamber to the cylinder walls

• Reduces localised stress and minimises risk of piston collapse

• Made in Germany

Specifications

• Bore: 98.01mm (Measured: 97.95mm)

• Display Volume: 449 cm³

• Stroke: 59.60mm

• Clearance: 0.06mm

• Compression Height: 25.00mm

• Wossner Compression Ratio: 13.00:1

• OEM Compression Ratio: 12.00:1

• Dome Volume: -0.50 cm³

• Part No.: 56-W920.B.WO (Wossner 8829DB)

• Ring Set: 980XSY

• Lock P/N: CW20

• Pin P/N: WP038

Vehicle Fitments

• 2011 Husqvarna TE449

• 2012 Husqvarna TE449

• 2013 Husqvarna TE449

• 2011 Husqvarna TC446

• 2012 Husqvarna TC446

• 2013 Husqvarna TC446

• 2011 Husqvarna TXC449

• 2012 Husqvarna TXC449

• 2013 Husqvarna TXC449
