PISTON KIT VERTEX 54 C YAMAHA YZ/WR 125 94-96, VERTEX 22224C

VERTEX UK PISTON KIT           22224C         (Distributed by oro2u.com)

All Vertex Pistons Feature:
- Standard pistons and components are OEM replacements.

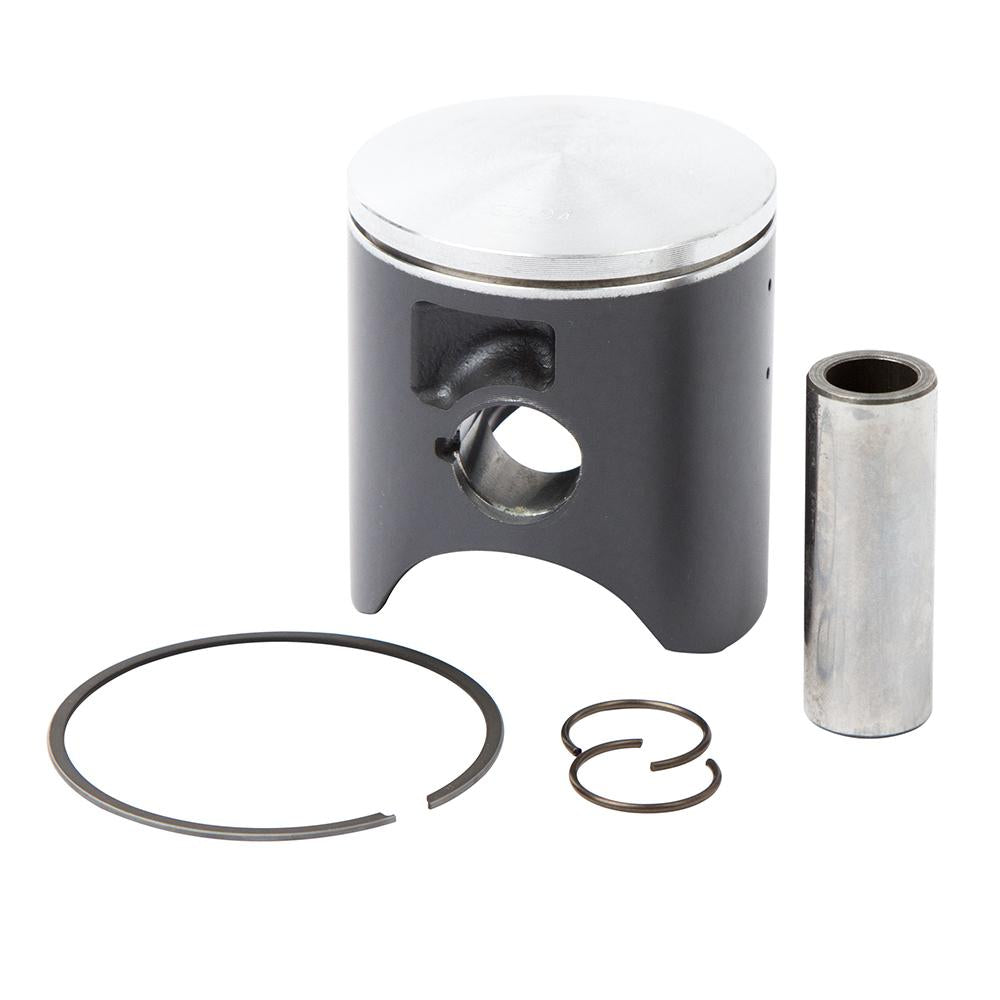

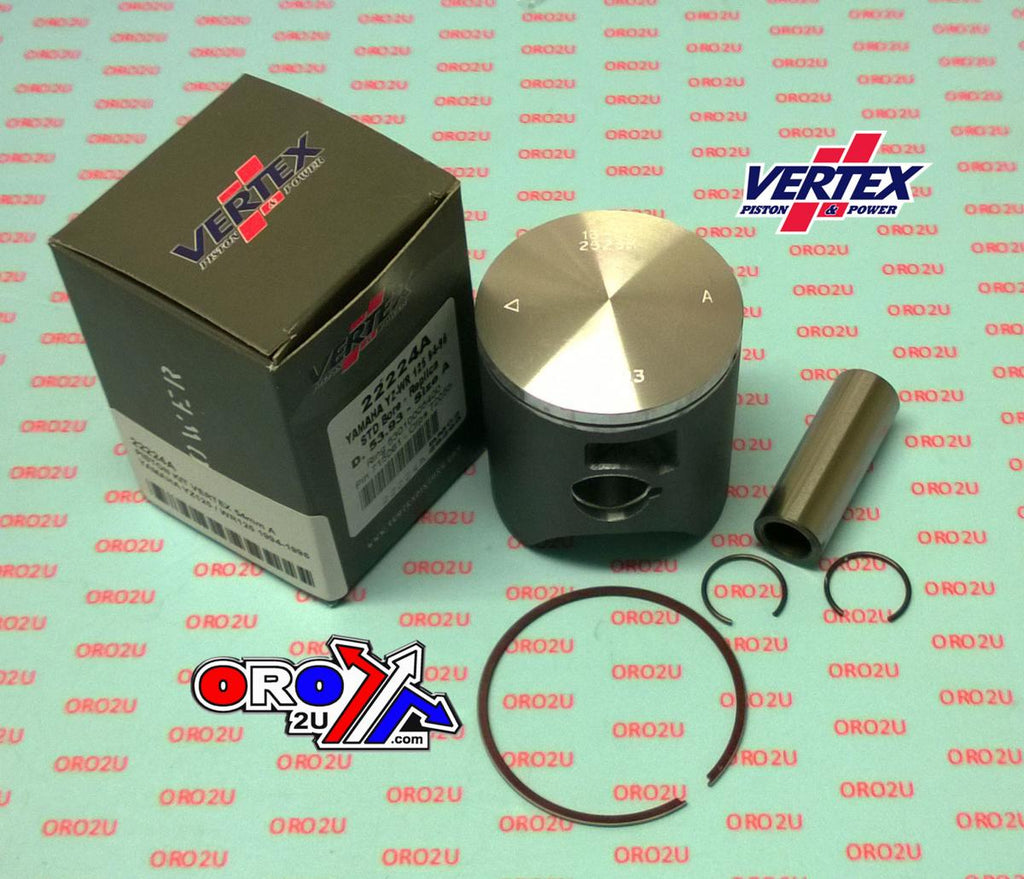

- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE. 54.00   [A 53.95mm]

Replacement Parts.

• Rings.   53010005400
• Pin.   715061
• Clips. 72055

Cross reference numbers ONLY.

• Piston (Std) UR 4JY-11631-02-A0
• Piston (Std) UR 4JY-11631-02-B0
• Piston (Std) UR 4JY-11631-02-D0
• Piston (Std) UR 4JY-11631-02-C0
• Ring, Piston 4JY-11611-00-00
• Pin, Piston 4PE-11633-00-00
• Circlip 93450-17129-00,

MODEL FITMENT:

• YAMAHA   YZ125 1994-1996
• YAMAHA   WR125 1994-1996
