PISTON KIT VERTEX 54.0 C SUZUKI RM 125 00-03, VERTEX 22652C

VERTEX UK PISTON KIT       22652C             (Distributed by oro2u.com)

All Vertex Pistons Feature:
- Standard pistons and components are OEM replacements.

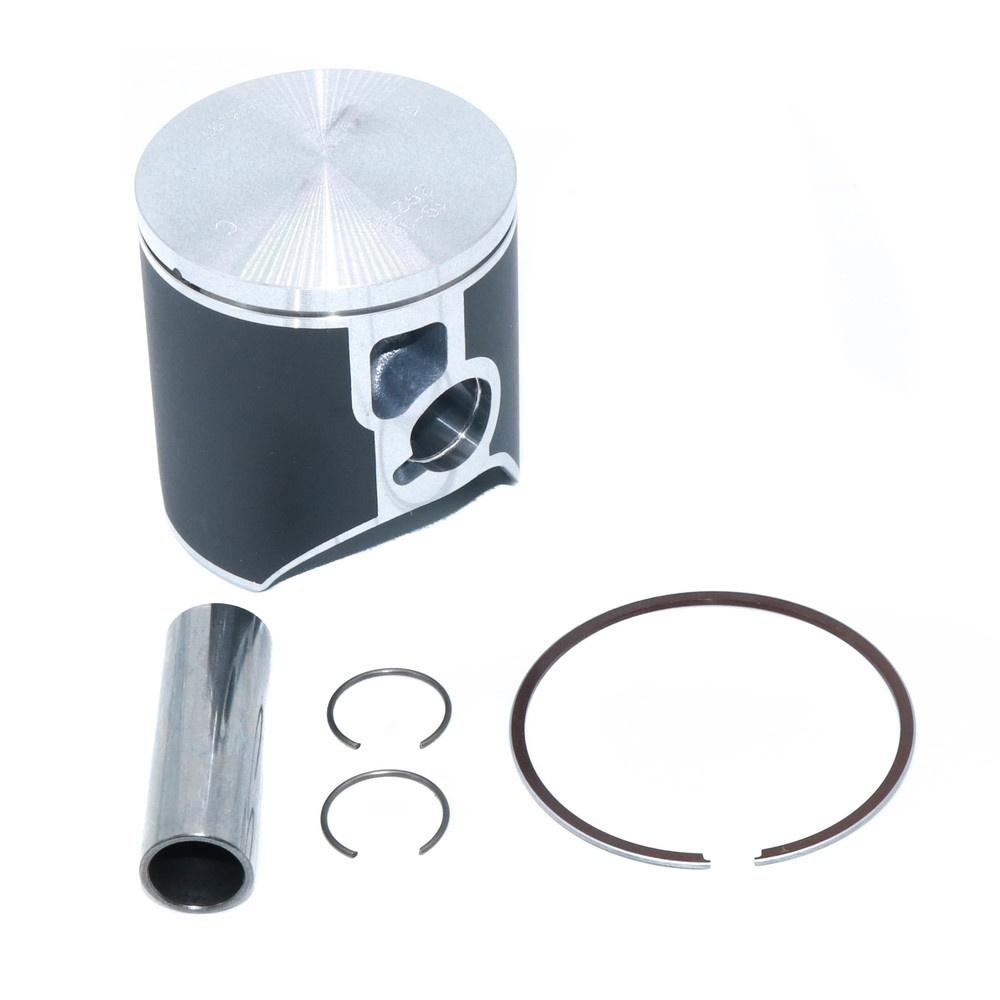

- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE.   54.00mm [C   53.97mm]

Replacement Parts.

• Rings.   53010005400
• Pin.   711127
• Clips. 72071

Cross reference numbers ONLY.

• PISTON MODEL K1 12110-36E30-0F0 12110-36E31-0F0
• 12110-36E31-0F0 , 12110-36F00-0F0 , 12110-36F10-0F0 12110-36F00-0F0 ,
• RING, PISTON MODEL K3/K4/K5/K6 12141-36F00
• PIN, PISTON 12151-01B41
• CIRCLIP 09381-15001

MODEL FITMENT:

• SUZUKI RM 125 2000-2003
