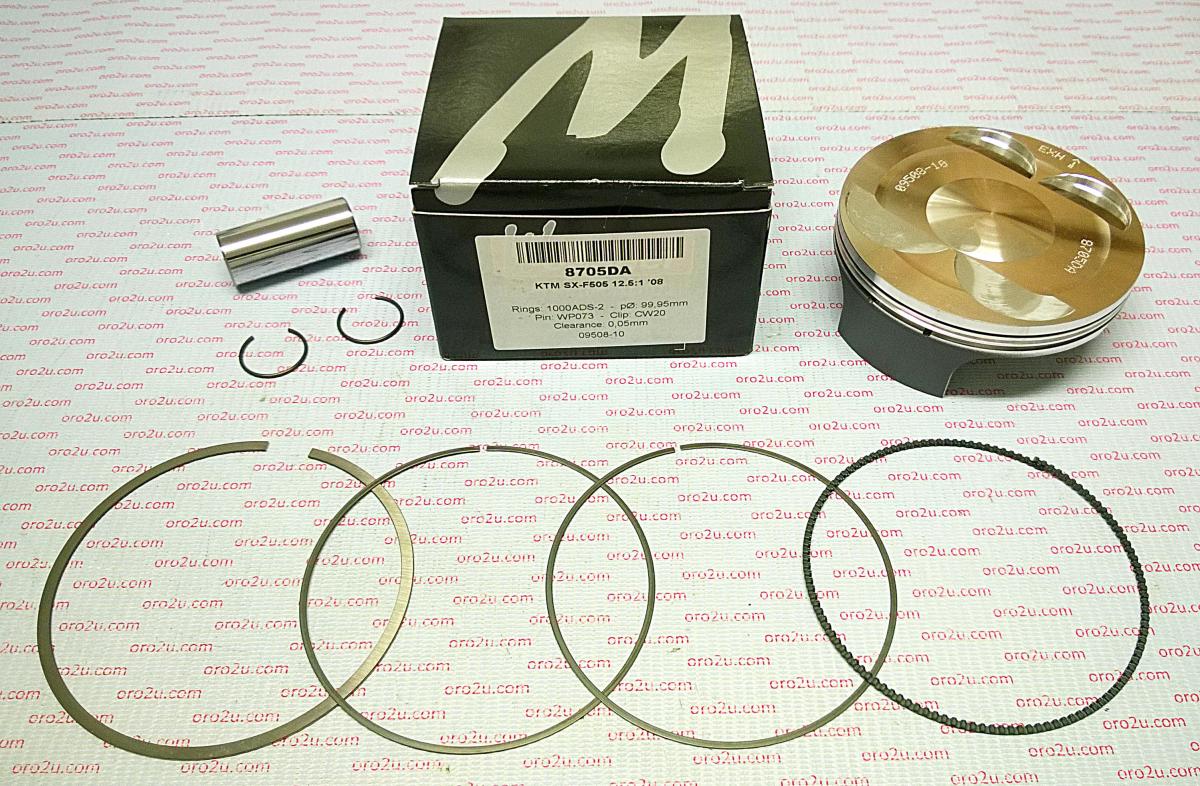

PISTON KIT SX-F505 KTM 100mm, FORGED WOSSNER 8705DA 776300073000
£186.49 GBP
Taxes included.
Wossner forged piston kit with a 100.00mm bore and 99.95mm diameter, designed for KTM SX-F505 models. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.
Features
- Forged construction for superior strength
- Optimized heat transfer for efficient combustion
- Elliptical design for uniform load distribution
- Manufactured in Germany
Specifications
- Bore: 100.00mm
- Diameter: 99.95mm
- Display (cm³): 477
- Stroke (mm): 68.80
- Clearance (mm): 0.05
- Wossner Compression Ratio: OEM
- OEM Compression Ratio: 12.50:1
- Dome Volume (cm³): -3.00
- Compression Height (mm): 21.40
Cross-Reference OEM Part Numbers
- Wossner Piston KTM SX-F505 (PN# 8705DA)
- Lock P/N: CW20
- Pin P/N: WP038
- Ring Set P/N: 1000ADS-2
- OEM References: 776300073000, 4947M01000
Vehicle Fitments
- KTM SX-F505 (2007-2008)
