PISTON KIT SACHS 125/7 55.75, WOSSNER 8287D200 PIN 16mm
£106.99 GBP
Taxes included.

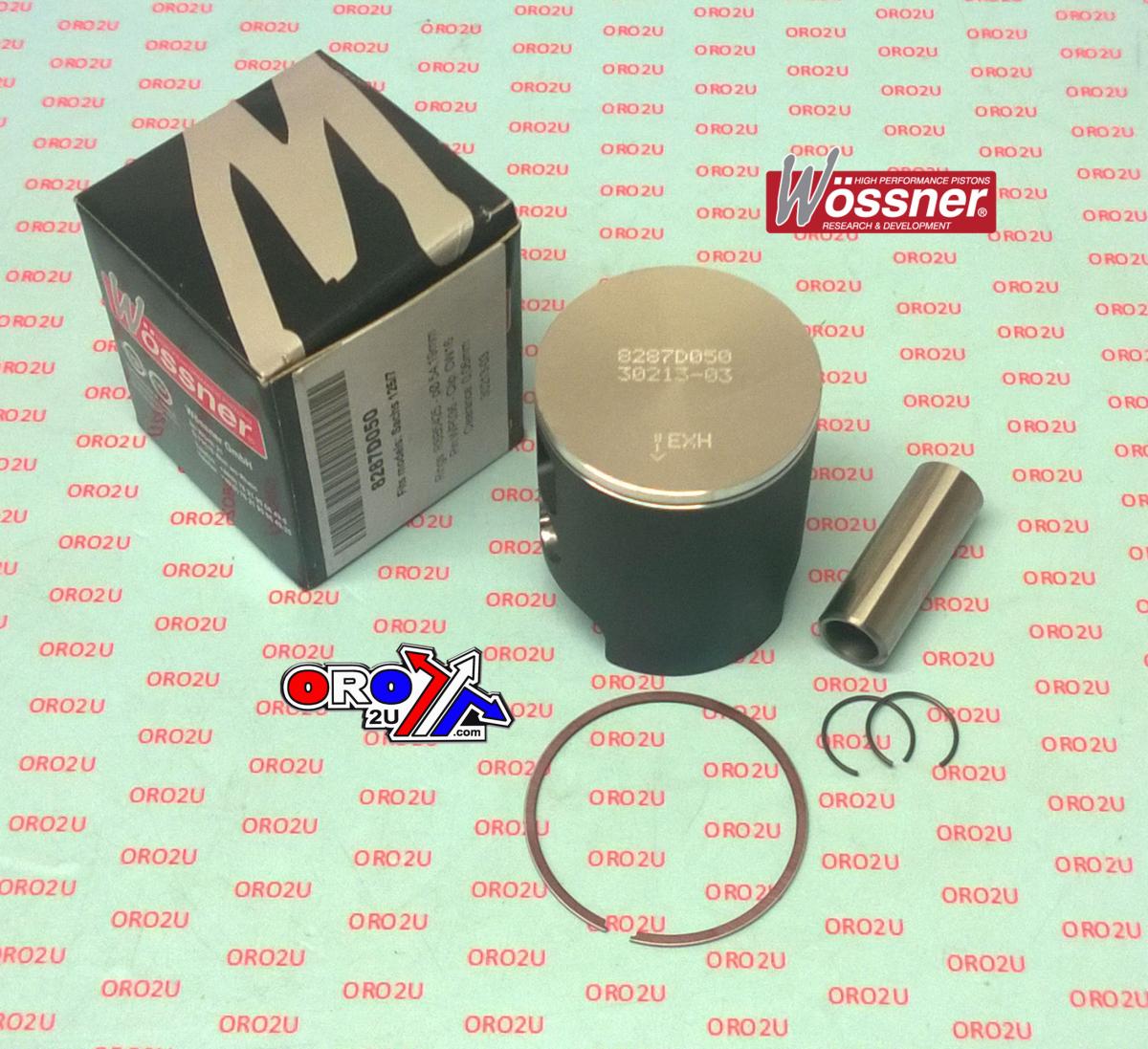

This Wossner forged piston kit with a 55.75mm bore is an oversized (+2.00mm) replacement for the Sachs 125/7 engine. Precision-forged in Germany, it is engineered for strength, thermal efficiency, and longevity. The elliptical piston profile promotes even expansion and load distribution, reducing localised stress and preventing failure under two-stroke operating conditions.
Features
-
Forged construction for high durability and performance
-
Optimised for efficient heat transfer from combustion to cylinder walls
-
Elliptical design provides uniform bearing surface under thermal expansion
-
Even thrust load distribution minimises localised pressure points
-
Manufactured in Germany
Specifications
-
Bore: 55.75mm (+2.00mm Oversize)
-
Actual bore: 55.69mm
-
Display volume: 122 cm³
-
Stroke: 54.00mm
-
Clearance: 0.06mm
-
Wossner compression ratio: 2-stroke
-
OEM compression ratio: 2-stroke
-
Compression height: 38.00mm
Cross-Reference OEM Part Numbers
-
56-W9844.200
-
8287D200
-
Clip Part Number: CW16
-
Pin Part Number: WP136
-
Ring Set Part Number: RSB5575 (x2)
Vehicle Fitments
-
Sachs 125/7
