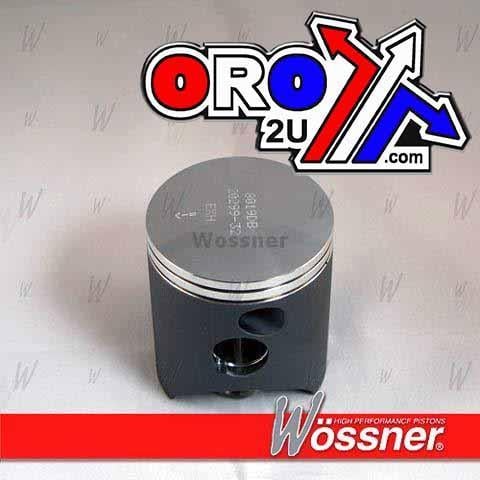

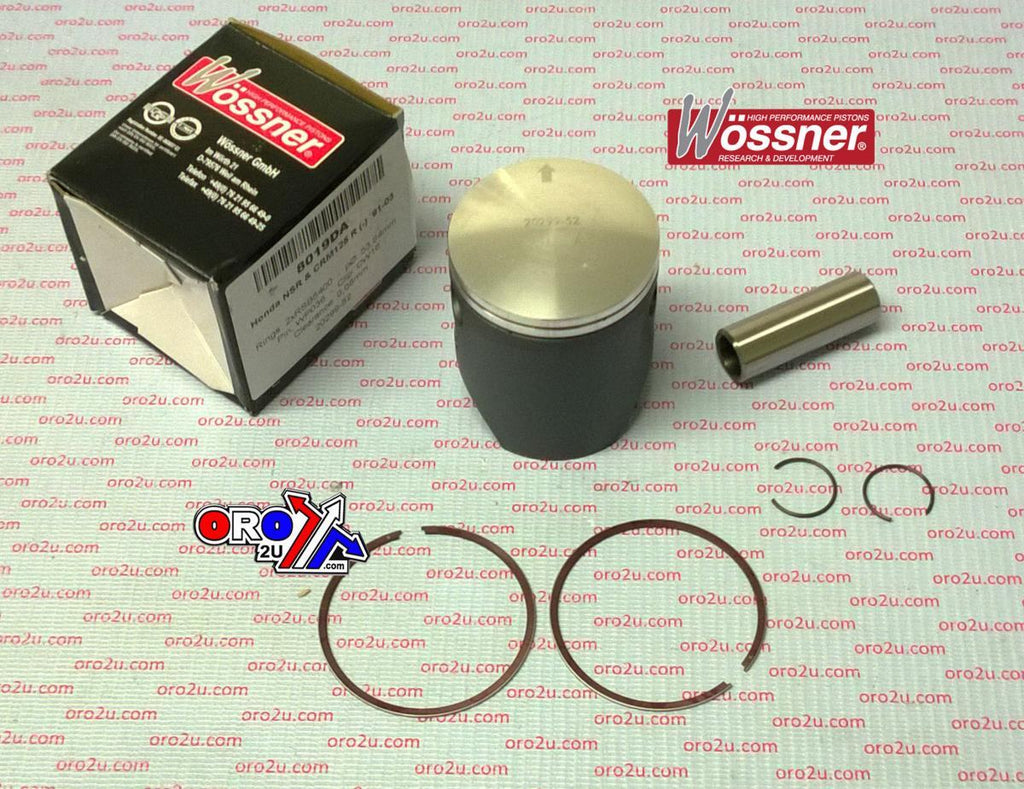

PISTON KIT NSR125 C 54.00mm, WOSSNER 8019DC HONDA ROAD

Wossner forged piston kit 8019DC is a +0.02mm oversized piston with a 54.00mm nominal bore, specifically engineered for Honda CRM R 125 (1986–2006) and NSR R 125 (1988–2003) models. Precision-machined and made in Germany, this piston provides superior structural integrity, efficient heat transfer, and consistent reliability for high-performance two-stroke engines.

Features

• Forged construction delivers exceptional strength and longevity

• Elliptical design ensures uniform contact under thermal expansion

• Efficiently transfers heat from combustion chamber to cylinder walls

• Minimises localised pressure to prevent piston deformation or collapse

• Made in Germany

Specifications

• Bore: 54.00mm (Measured: 53.95mm)

• Display Volume: 124 cm³

• Stroke: 54.50mm

• Clearance: 0.06mm

• Compression Height: 30.00mm

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

• Part No.: 56-W906+00C.WO (Wossner 8019DC)

• Ring Set: RSB5400 x 2

• Lock P/N: CW16

• Pin P/N: WP036

Vehicle Fitments

• 1986–2006 Honda CRM R 125

• 1988–2003 Honda NSR R 125
