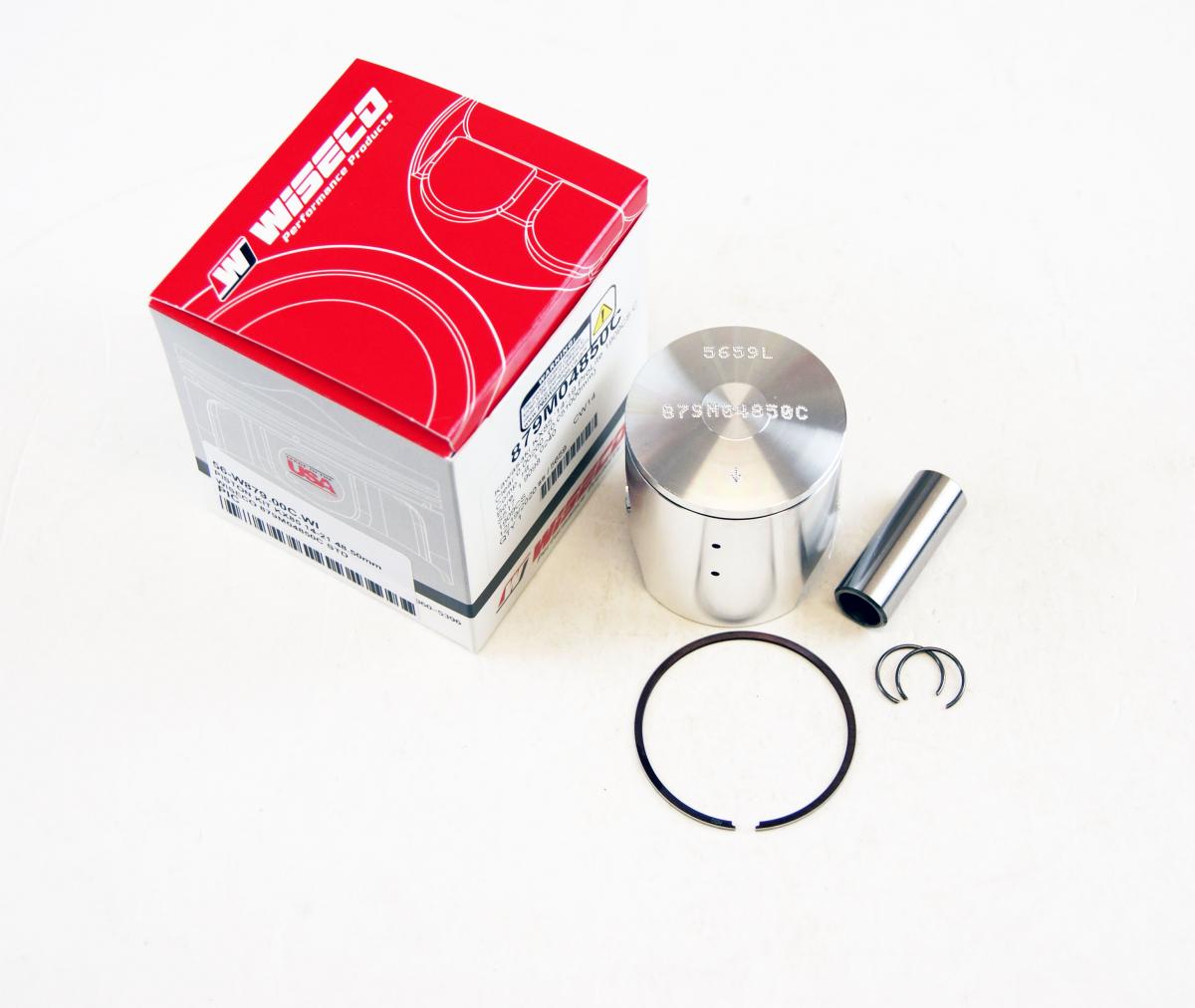

PISTON KIT KX85 14-25 48.50mm, WISECO 879M04850A STD

This Wiseco single piston kit is designed for Kawasaki KX85 models from 2014 to 2025, featuring a standard 48.50mm bore and 48.44mm specification. Manufactured using high-silicon aluminium alloy, it offers maximum strength, torque, and durability under high-performance conditions.

Features

• Forged from high-silicon aluminium alloy for strength and reliability

• Innovative design enhances horsepower and torque

• Aerospace alloy forgings provide an optimal strength-to-weight ratio

• Includes piston rings and circlips as standard with all Wiseco high-performance pistons

Specifications

• Bore: 48.50 mm

• Actual Piston Size: 48.44 mm

• Part No.: 56-W879.00A.WI

• Ring Set: 1909CS – 48.50 mm

• Pin: S517 – 14 mm x 1.5098", unchromed, for 2-cycle

• Locks: CW14 – 14 mm round wire pin locks (pair)

Cross-Reference OEM Part Numbers

• 13001-0744

• 13002-0040

• 13003-1441

• 92033-0005

Vehicle Fitments

• 2014 Kawasaki KX85

• 2015 Kawasaki KX85

• 2016 Kawasaki KX85

• 2017 Kawasaki KX85

• 2018 Kawasaki KX85

• 2019 Kawasaki KX85

• 2020 Kawasaki KX85

• 2021 Kawasaki KX85

• 2022 Kawasaki KX85

• 2023 Kawasaki KX85

• 2024 Kawasaki KX85

• 2025 Kawasaki KX85
