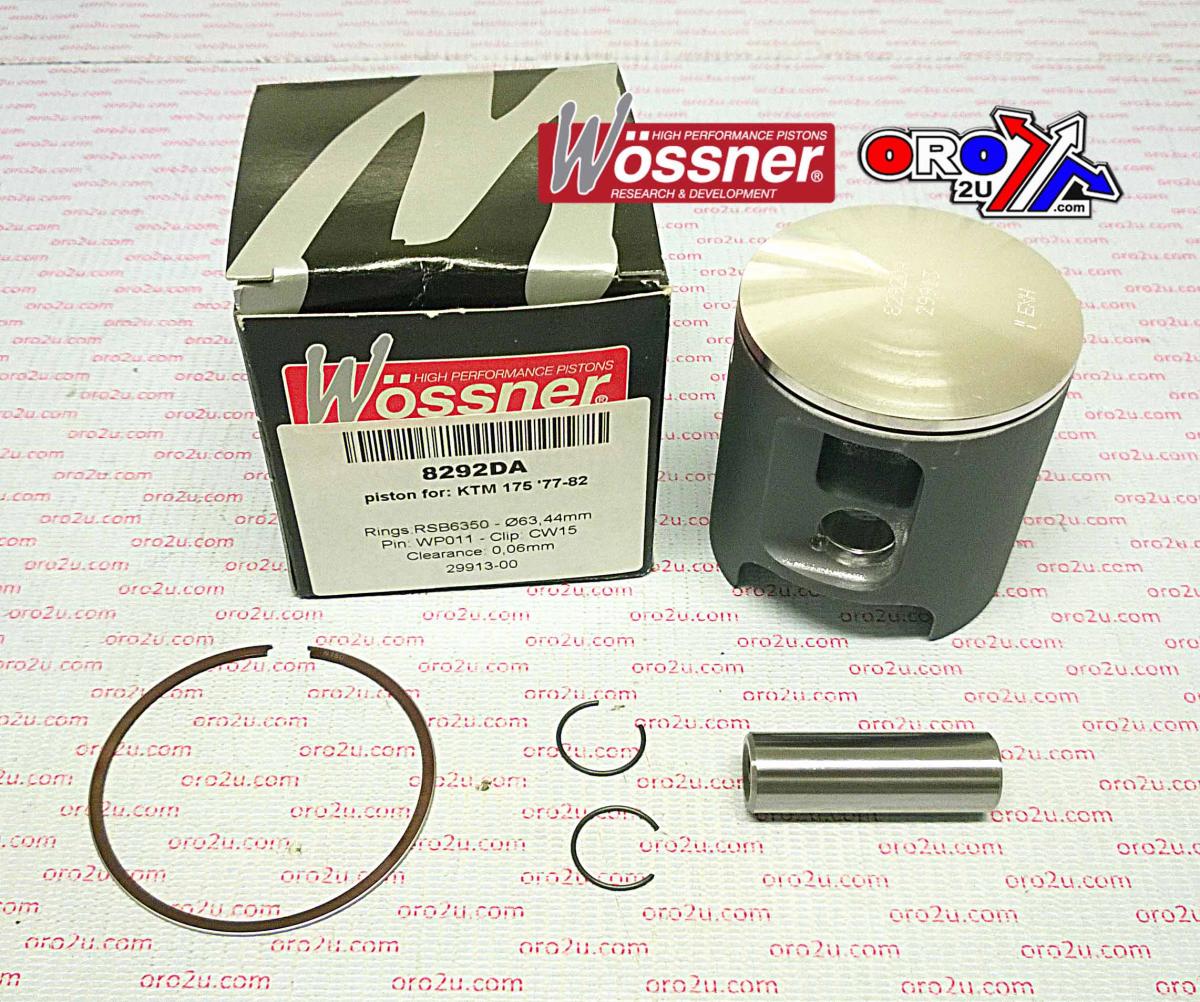

PISTON KIT KTM 175GS 65.00, WOSSNER 8292D150 KTM GS 77-82
  • PISTON KIT KTM 175GS 65.00, WOSSNER 8292D150 KTM GS 77-82
  • PISTON KIT KTM 175GS 65.00, WOSSNER 8292D150 KTM GS 77-82
PISTON KIT KTM 175GS 65.00, WOSSNER 8292D150 KTM GS 77-82

PISTON KIT KTM 175GS 65.00, WOSSNER 8292D150 KTM GS 77-82

£154.18 GBP
Taxes included. Shipping calculated at checkout.

This Wossner forged piston kit has a 65.00mm bore (actual 64.94mm) and serves as a +1.50mm oversize replacement for KTM 175 GS and MC models from 1977 to 1982. Engineered specifically for two-stroke engines, it features a high-strength design that promotes effective heat transfer and structural durability. The elliptical profile ensures uniform pressure distribution, minimising the risk of piston collapse during operation.

Features

  • Forged construction ensures superior durability and thermal conductivity

  • Elliptical shape for even thrust load distribution under expansion

  • Designed for high-performance two-stroke applications

Specifications

  • Bore Size: 65.00mm (actual 64.94mm)

  • Stroke: 54.00 mm

  • Clearance: 0.06 mm

  • Compression Ratio (Wossner): 2-stroke

  • Compression Ratio (OEM): 12-stroke

  • Compression Height: 37.00 mm

  • Lock Part Number: CW15

  • Pin Part Number: WP011

  • Ring Set Part Number: RSB6500

Cross-Reference OEM Part Numbers

  • 56-W967.150.WO

Vehicle Fitments

  • KTM 175 GS (1977–1982)

  • KTM 175 MC (1977–1982)
