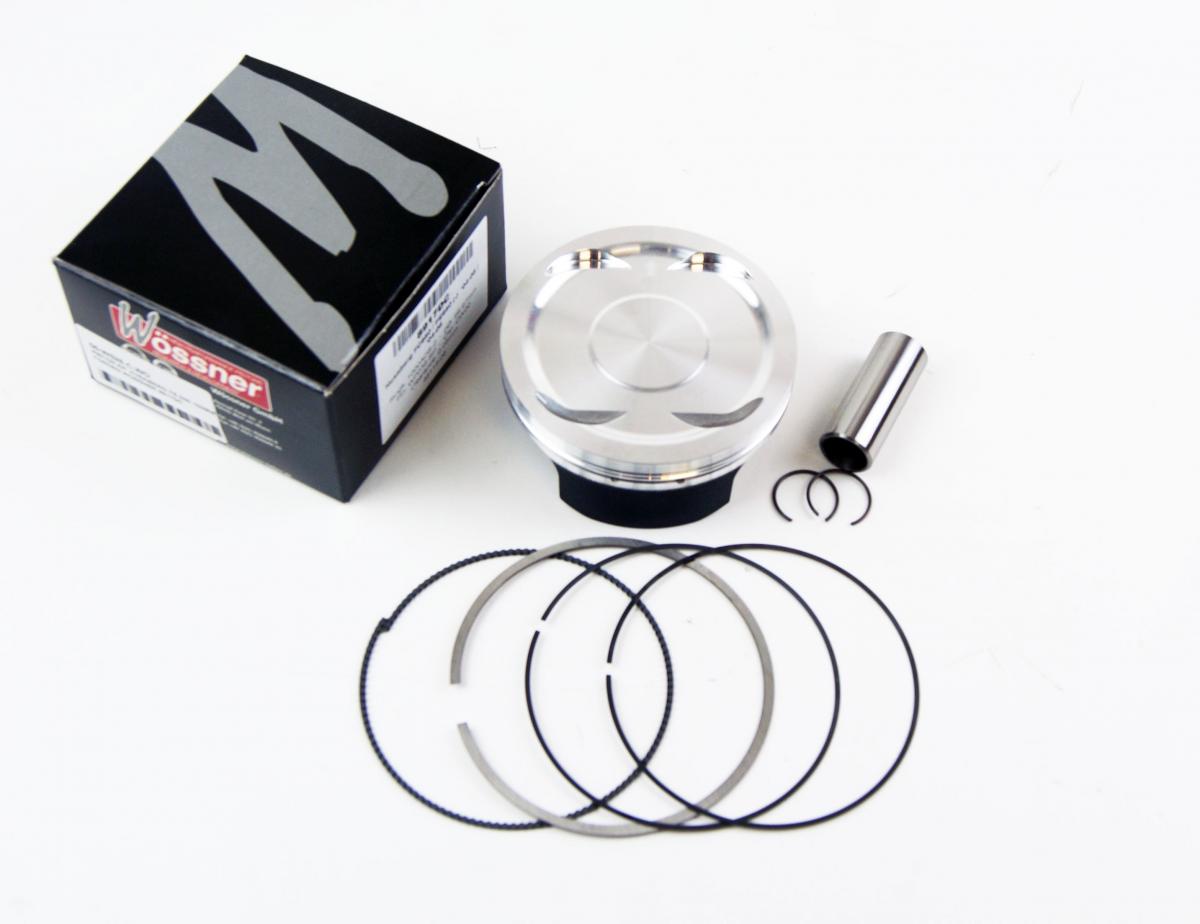

PISTON KIT HUSABERG FE 650 100MM, FORGED WOSSNER 8917DB

This Wossner piston kit is designed for Husaberg FE 650 models from 2004 to 2008 and features a 100.00 mm bore with an actual piston diameter of 99.96 mm. Forged in Germany, the piston is built for durability and thermal efficiency, supporting optimal heat transfer from the combustion chamber to the cylinder walls. The elliptical design promotes a consistent bearing surface during thermal expansion, reducing localised stress and preventing piston collapse.

Features

• Forged piston for improved durability and strength

• Engineered for effective heat transfer

• Elliptical design promotes even thrust load distribution

• Manufactured in Germany

Specifications

• Bore size: 100.00 mm

• Actual piston diameter: 99.96 mm

• Wossner compression ratio: OEM

• OEM compression ratio: 11.8:1

Cross-Reference OEM Part Numbers

• Wossner Piston Part Number: 8917DB

• Lock Part Number: CW20

• Pin Part Number: WP038

• Ring Set Part Number: 1000ADS-2

• Alternate Part Number: 56-W528.B.WO

Vehicle Fitments

• Husaberg FE 650 2004

• Husaberg FE 650 2005

• Husaberg FE 650 2006

• Husaberg FE 650 2007

• Husaberg FE 650 2008
