PISTON KIT GM SPEEDWAY 90.00, WOSSNER K8811DE E
  • PISTON KIT GM SPEEDWAY 90.00, WOSSNER K8811DE E
  • PISTON KIT GM SPEEDWAY 90.00, WOSSNER K8811DE E
  • PISTON KIT GM SPEEDWAY 90.00, WOSSNER K8811DE E
  • PISTON KIT GM SPEEDWAY 90.00, WOSSNER K8811DE E
  • PISTON KIT GM SPEEDWAY 90.00, WOSSNER K8811DE E
  • PISTON KIT GM SPEEDWAY 90.00, WOSSNER K8811DE E
  • PISTON KIT GM SPEEDWAY 90.00, WOSSNER K8811DE E
  • PISTON KIT GM SPEEDWAY 90.00, WOSSNER K8811DE E
PISTON KIT GM SPEEDWAY 90.00, WOSSNER K8811DE E

PISTON KIT GM SPEEDWAY 90.00, WOSSNER K8811DE E

£254.39 GBP
Taxes included. Shipping calculated at checkout.

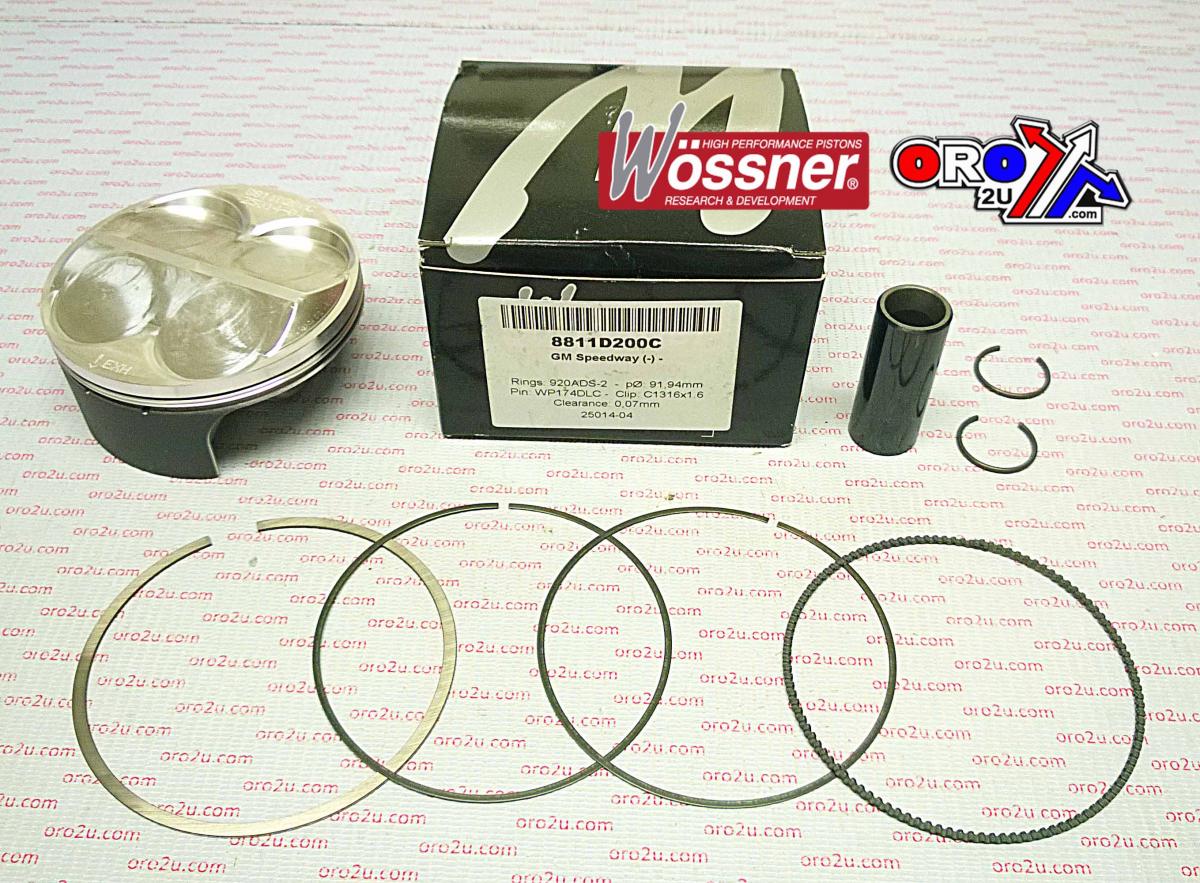

This Wossner forged piston kit with a 90.04mm bore (+0.04mm oversize) is designed for all Speedway applications, including GM Speedway 499cc engines. Precision-forged in Germany, the piston features superior strength and optimal heat transfer capabilities. Its elliptical profile promotes uniform pressure distribution and expansion under thermal load, minimising stress and reducing the risk of piston failure.

Features

  • Forged construction for maximum strength and performance

  • Engineered for efficient heat dissipation from combustion to cylinder walls

  • Elliptical profile ensures consistent bearing surface under expansion

  • Reduces localised pressure and evenly distributes thrust loads

  • Manufactured in Germany

Specifications

  • Bore: 90.04mm (+0.04mm Oversize)

  • Actual bore: 89.96mm

  • Display volume: 499 cm³

  • Stroke: 78.50mm

  • Clearance: 0.08mm

  • Dome volume: +5.60 cm³

  • Compression height: 22.00mm

Cross-Reference OEM Part Numbers

  • 56-W9841.E

  • 8811DE

  • Lock Part Number: CW21

  • Pin Part Number: WP074

  • Ring Set Part Number: 900ADS

Vehicle Fitments

  • Speedway (All Models)

  • GM Speedway 499cc
