PISTON KIT DR600 DR650 96.00, FORGED WOSSNER 8503D100
£175.93 GBP
Taxes included.

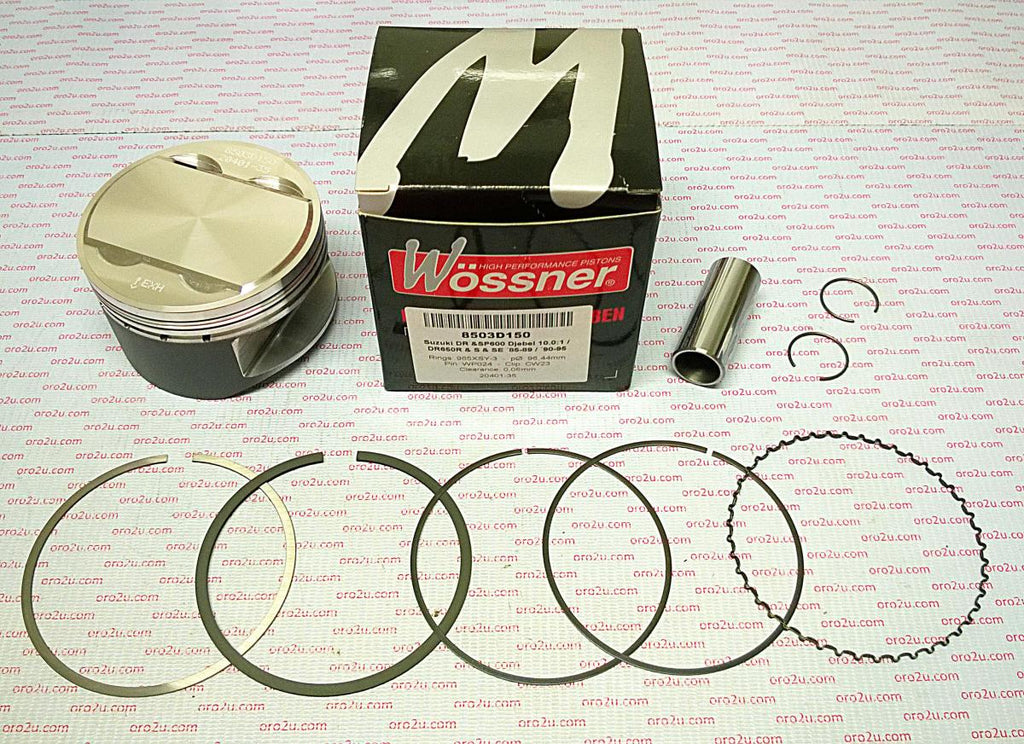

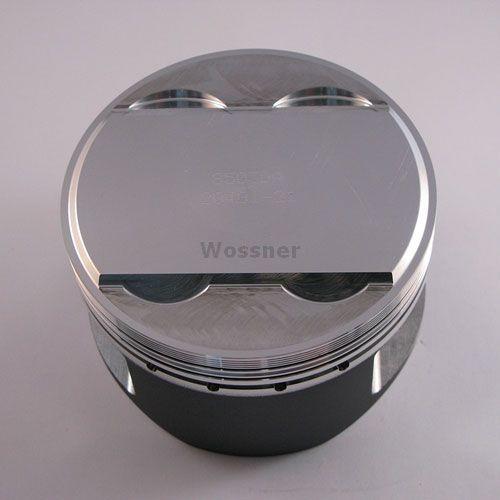

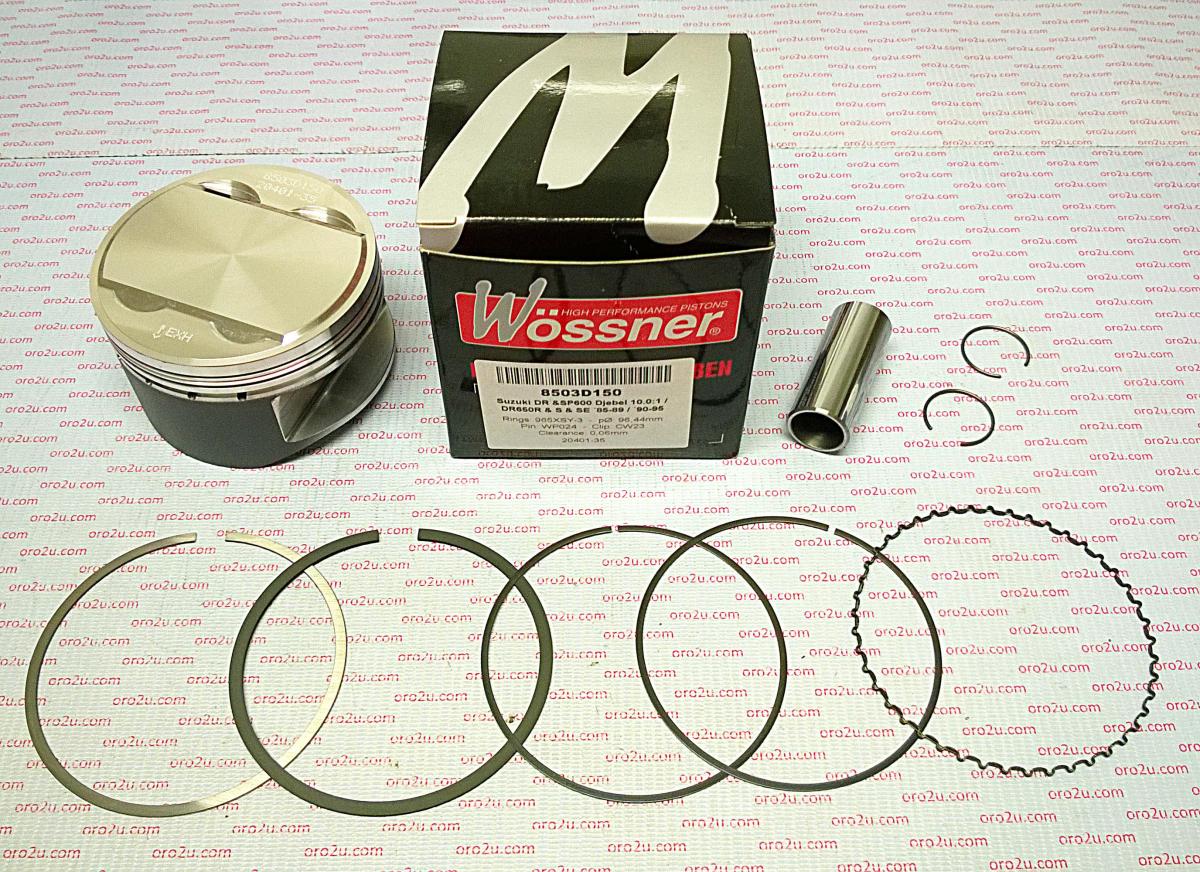

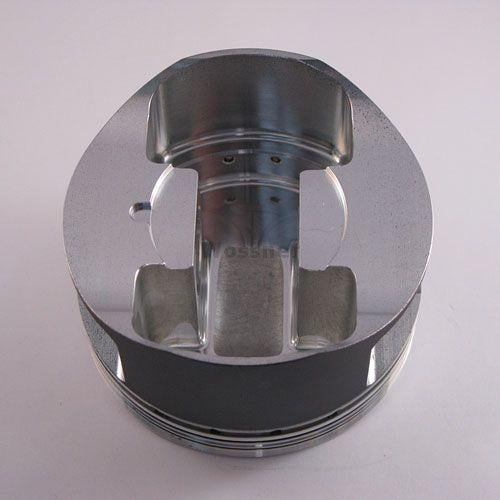

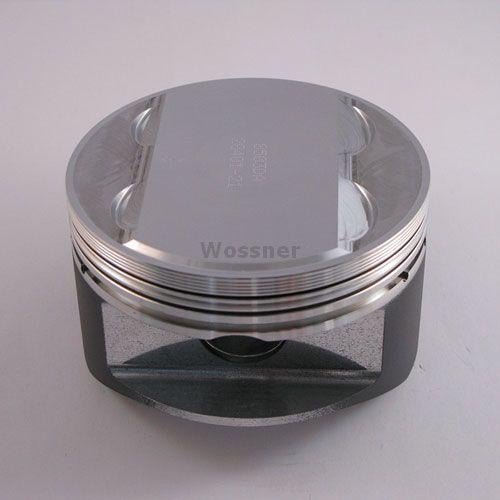

Wössner forged piston kit with a 96mm bore, designed for Suzuki DR600, SP600 Djebel, and DR650 models. Manufactured in Germany, this high-performance piston enhances strength, heat transfer, and durability. The elliptical design ensures uniform bearing surface distribution, reducing localized pressure and preventing piston collapse.
Features
- Forged construction for superior strength and durability
- Optimized heat transfer to cylinder walls
- Elliptical design for uniform bearing surface under heat expansion
- Increased compression ratio for improved engine performance
- Made in Germany
Specifications
- Bore: 96mm (95.94mm actual)
- Display: 589 cm³
- Stroke: 85.00mm
- Clearance: 0.06mm
- Wössner Compression Ratio: 10.00:1
- OEM Compression Ratio: 8.50:1
- Dome Volume: +6.10 cm³
- Compression Height: 29.90mm
- Theoretical Weight: [Not provided]
Cross-Reference OEM Part Numbers
- Wössner Piston: 8503D100
- Lock: CW23
- Pin: WP024
- Ring Set: 960XSY
Vehicle Fitments
- Suzuki DR600 (1985-1989)
- Suzuki SP600 Djebel (1985-1989)
- Suzuki DR650R (1990-1995)
- Suzuki DR650S (1990-1995)
- Suzuki DR650SE (1990-1995)
