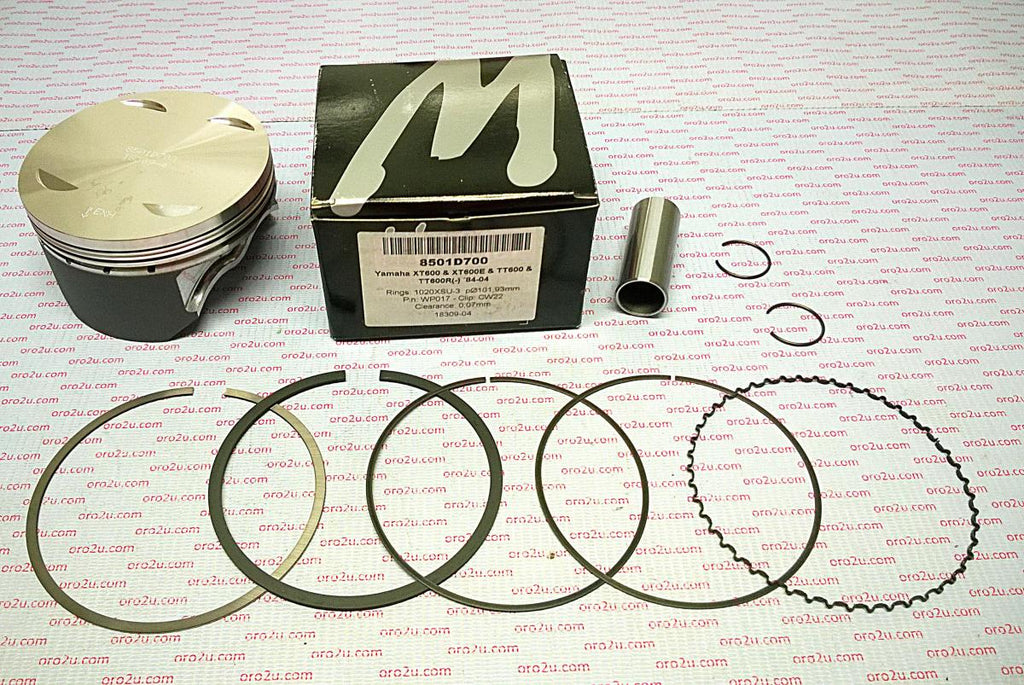

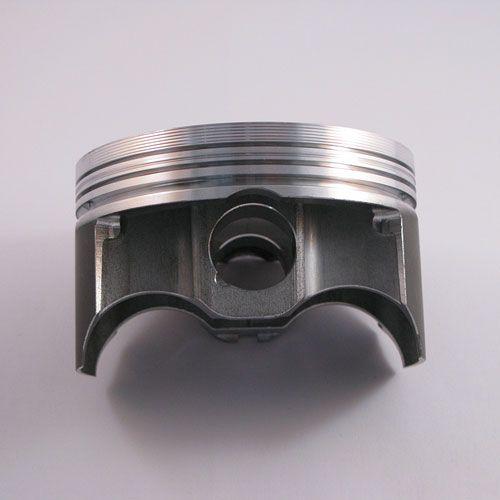

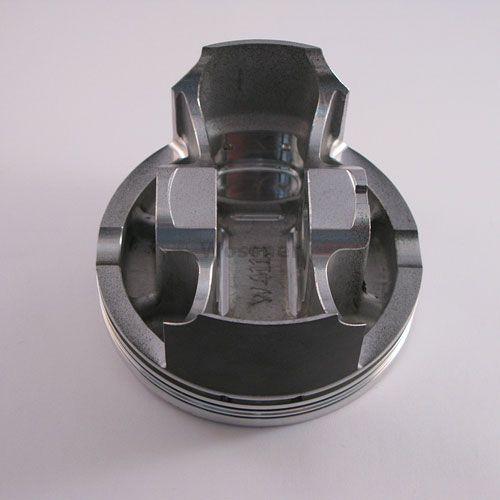

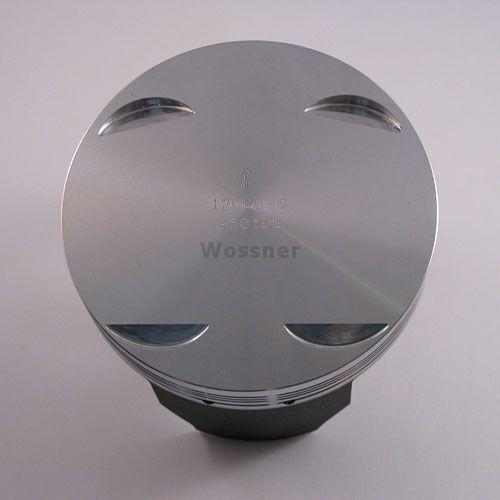

PISTON KIT 98-01 YFM600 102.00, FORGED WOSSNER 8501D700

Piston kit 102mm Bore 101.93 Wossner 8501D700 (+7.00)

YAMAHA
XT600 1984 - 2004,
XT600E 1984 - 2004,
TT600 1984 - 2004,
TT600R 1984 - 2004,
ATV
YFM600 Grizzly 1998 - 2001,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

56-W4797+700.WO (oro2u.com)
Wossner 102.00mm piston kit Application Yamaha
Lock P/N CW22
Pin P/N WP017
Ring Set P/N 1020XSY
(Wossner part no 8501D700)

Display (cm3) 595
Hub stroke (mm) 84.00
Clearance (mm) 0.07
Wossner compression Ratio: 10.70:1
OEM Compression ratio: 8.50:1
Dome volume (cm3) -0.50
Compression height (mm) 28.00
Theorectical weight (G)
