PISTON KIT 97-01 CR250 67.50, WOSSNER 8001D110 HONDA MX
  • PISTON KIT 97-01 CR250 67.50, WOSSNER 8001D110 HONDA MX
  • PISTON KIT 97-01 CR250 67.50, WOSSNER 8001D110 HONDA MX
  • PISTON KIT 97-01 CR250 67.50, WOSSNER 8001D110 HONDA MX
  • PISTON KIT 97-01 CR250 67.50, WOSSNER 8001D110 HONDA MX
  • PISTON KIT 97-01 CR250 67.50, WOSSNER 8001D110 HONDA MX
  • PISTON KIT 97-01 CR250 67.50, WOSSNER 8001D110 HONDA MX
  • PISTON KIT 97-01 CR250 67.50, WOSSNER 8001D110 HONDA MX
  • PISTON KIT 97-01 CR250 67.50, WOSSNER 8001D110 HONDA MX
PISTON KIT 97-01 CR250 67.50, WOSSNER 8001D110 HONDA MX

PISTON KIT 97-01 CR250 67.50, WOSSNER 8001D110 HONDA MX

£154.18 GBP
Taxes included. Shipping calculated at checkout.

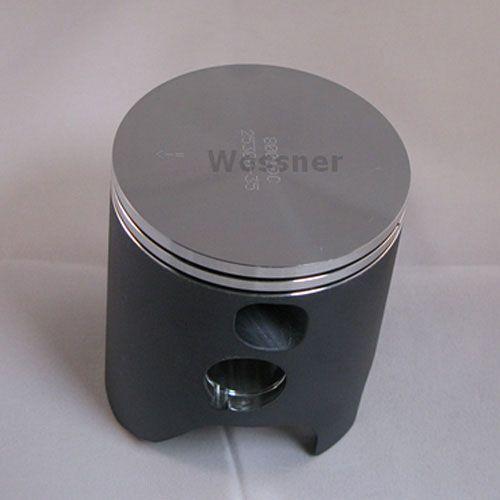

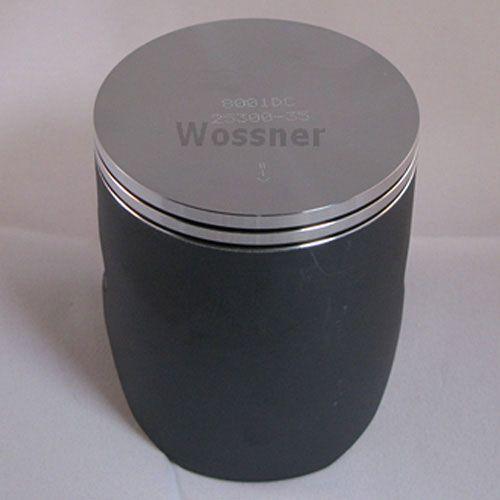

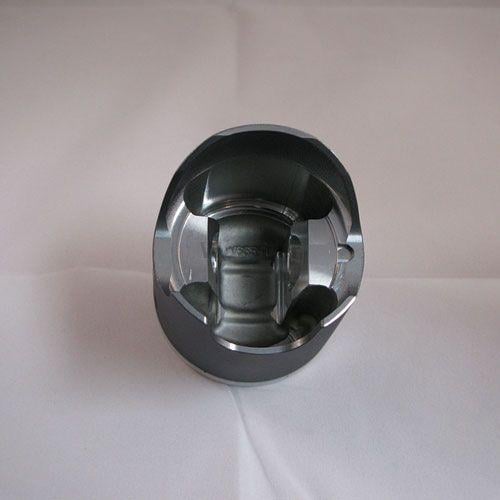

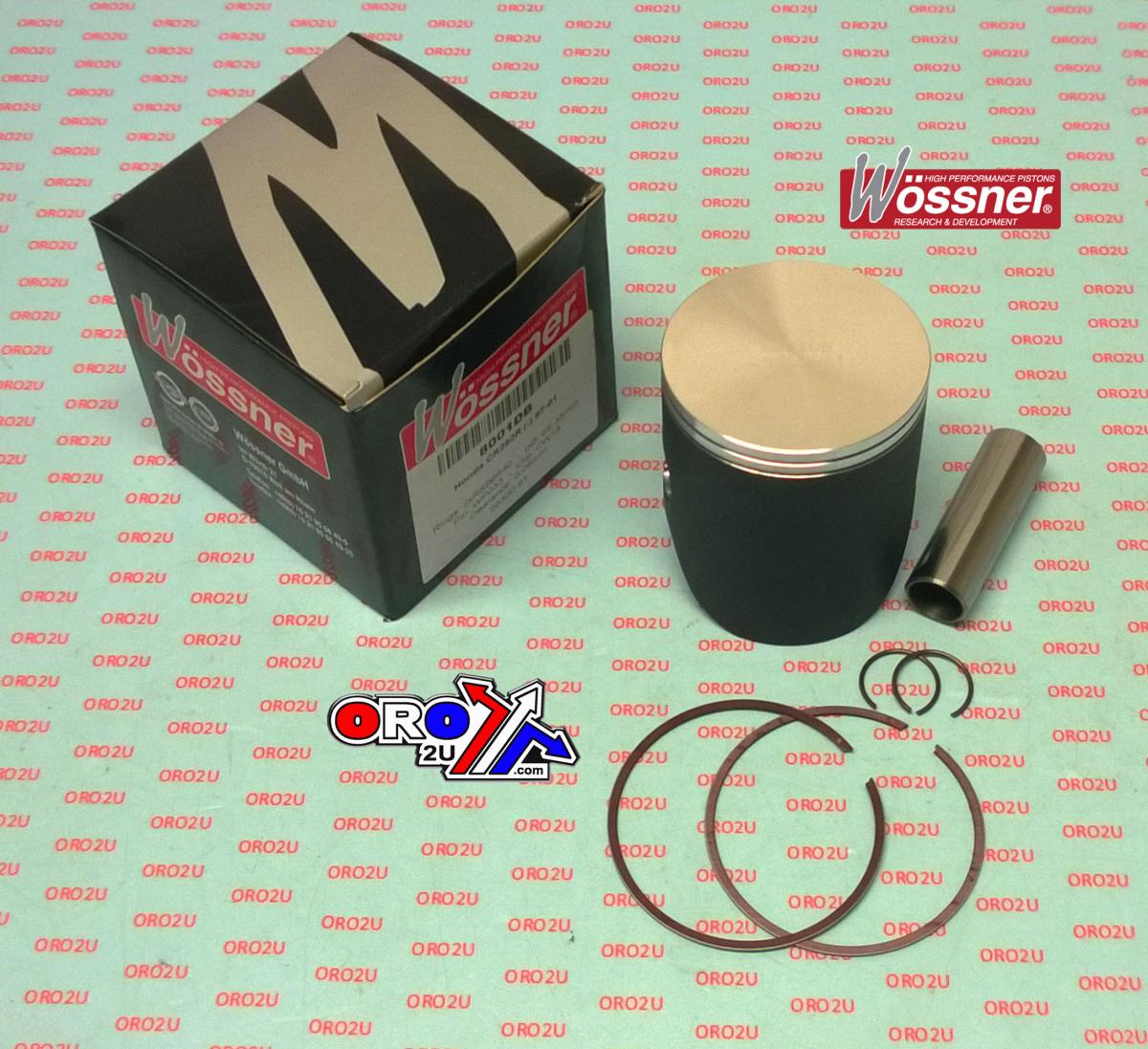

Wossner forged piston kit 8001D110 is a +1.10 oversize option for Honda CR250R models from 1997 to 2001, featuring a 67.50 mm bore and 67.44 mm actual piston diameter. Manufactured in Germany, it incorporates an elliptical piston design that enhances thermal efficiency and distributes mechanical loads evenly, minimising piston collapse risks in 2-stroke engines.

Features

  • Forged piston construction for high strength and performance

  • Elliptical design promotes uniform pressure distribution and thermal expansion handling

  • Enhanced heat transfer from combustion chamber to cylinder walls

  • German engineering ensures precision and quality

Specifications

  • Bore Size: 67.50 mm

  • Actual Piston Diameter: 67.44 mm

  • Display (Displacement): 249 cm³

  • Stroke: 70.80 mm

  • Clearance: 0.06 mm

  • Compression Ratio: 2-stroke (Wossner and OEM)

  • Compression Height: 35.00 mm

Cross-Reference OEM Part Numbers

  • Piston Kit: 8001D110

  • Lock: CW18

  • Pin: WP033

  • Ring Set: RDB6750

  • Rod: P2021

Vehicle Fitments

  • 1997 Honda CR250R

  • 1998 Honda CR250R

  • 1999 Honda CR250R

  • 2000 Honda CR250R

  • 2001 Honda CR250R
