PISTON KIT 97-01 CR250 66.40 C, WOSSNER 8001DC HONDA MX
  • PISTON KIT 97-01 CR250 66.40 C, WOSSNER 8001DC HONDA MX
  • PISTON KIT 97-01 CR250 66.40 C, WOSSNER 8001DC HONDA MX
  • PISTON KIT 97-01 CR250 66.40 C, WOSSNER 8001DC HONDA MX
  • PISTON KIT 97-01 CR250 66.40 C, WOSSNER 8001DC HONDA MX
  • PISTON KIT 97-01 CR250 66.40 C, WOSSNER 8001DC HONDA MX
  • PISTON KIT 97-01 CR250 66.40 C, WOSSNER 8001DC HONDA MX
  • PISTON KIT 97-01 CR250 66.40 C, WOSSNER 8001DC HONDA MX
  • PISTON KIT 97-01 CR250 66.40 C, WOSSNER 8001DC HONDA MX
PISTON KIT 97-01 CR250 66.40 C, WOSSNER 8001DC HONDA MX

PISTON KIT 97-01 CR250 66.40 C, WOSSNER 8001DC HONDA MX

£143.87 GBP
Taxes included. Shipping calculated at checkout.

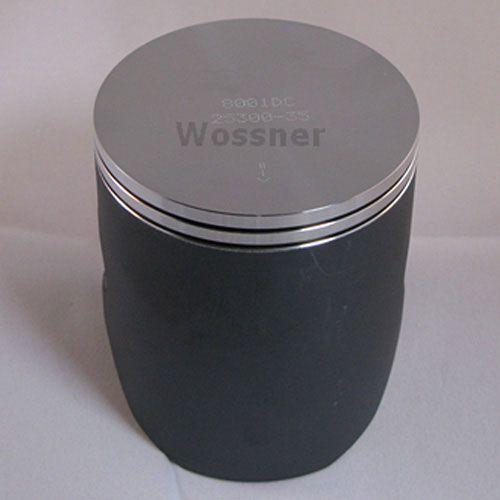

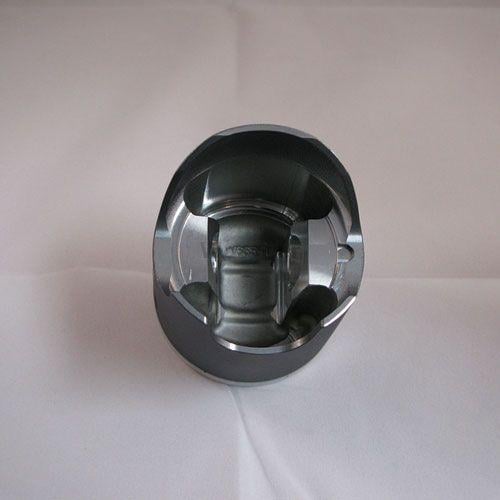

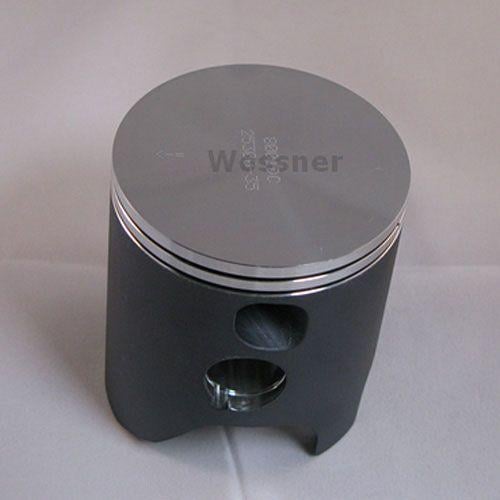

Wossner forged piston kit 8001DC is designed for Honda CR250R models from 1997 to 2001 and features a 67.42 mm bore size with a 66.36 mm actual piston diameter. Manufactured in Germany, it incorporates an elliptical design for optimised load distribution and superior thermal management, ensuring reliable operation in high-performance 2-stroke engines.

Features

  • Forged piston for enhanced strength and durability

  • Elliptical profile for uniform load distribution and reduced piston collapse

  • Efficient heat transfer from combustion chamber to cylinder walls

  • Precision engineered and made in Germany

Specifications

  • Bore Size: 67.42 mm

  • Actual Piston Diameter: 66.36 mm

  • Display (Displacement): 249 cm³

  • Stroke: 70.80 mm

  • Clearance: 0.06 mm

  • Compression Ratio: 2-stroke (Wossner and OEM)

  • Dome Volume: Not specified

  • Compression Height: 35.00 mm

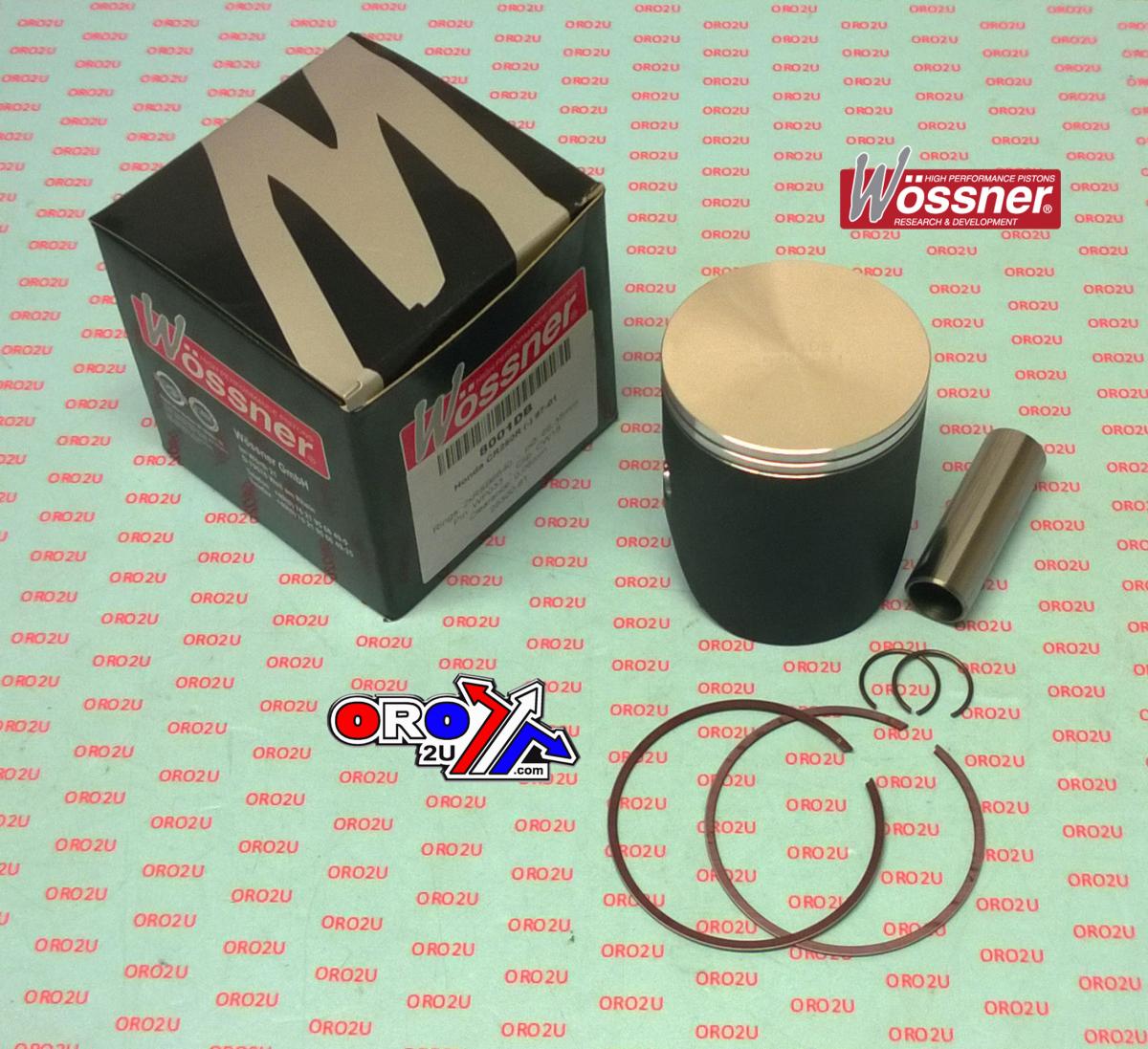

Cross-Reference OEM Part Numbers

  • Piston Kit: 8001DC

  • Lock: CW18

  • Pin: WP033

  • Ring Set: RSB6640 (x2)

Vehicle Fitments

  • 1997 Honda CR250R

  • 1998 Honda CR250R

  • 1999 Honda CR250R

  • 2000 Honda CR250R

  • 2001 Honda CR250R
