PISTON KIT 95-97 RS125 GP 54.0, FORGED WOSSNER 8242DA

PISTON KIT 95-97 RS125 GP 54.0, FORGED WOSSNER 8242DA

£111.24 GBP
Taxes included. Shipping calculated at checkout.

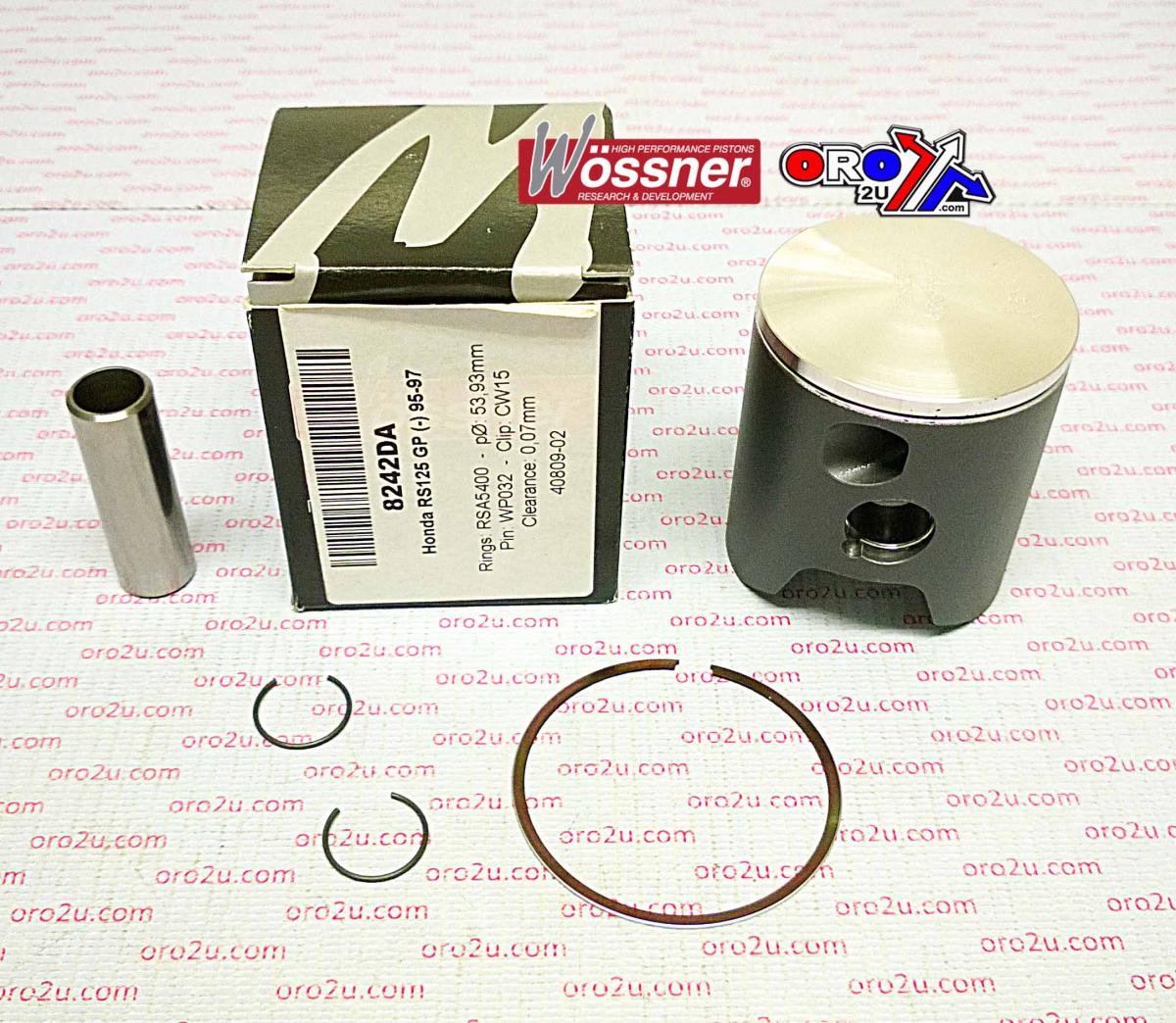

This Wossner forged piston kit with a 54.00mm nominal bore (actual 53.93mm) is specifically designed for the Honda RS125 GP from 1995 to 1997. Precision-engineered for two-stroke race applications, it offers strength, consistent performance, and efficient heat dissipation for competitive use.

Features

  • Forged construction ensures maximum durability under high-performance conditions

  • Elliptical skirt profile enhances heat distribution and reduces localised stress

  • Designed for optimal combustion efficiency and reduced friction

  • Made in Germany using high-precision manufacturing processes

Specifications

  • Bore Size: 54.00mm (actual 53.93mm)

  • Stroke: 54.50 mm

  • Clearance: 0.07 mm

  • Wossner Compression Ratio: 2 stroke

  • OEM Compression Ratio: 2 stroke

  • Compression Height: 29.00 mm

  • Lock Part Number: CW15

  • Pin Part Number: WP032

  • Ring Set Part Number: RSA5400

Vehicle Fitments

  • Honda RS125 GP 1995

  • Honda RS125 GP 1996

  • Honda RS125 GP 1997
