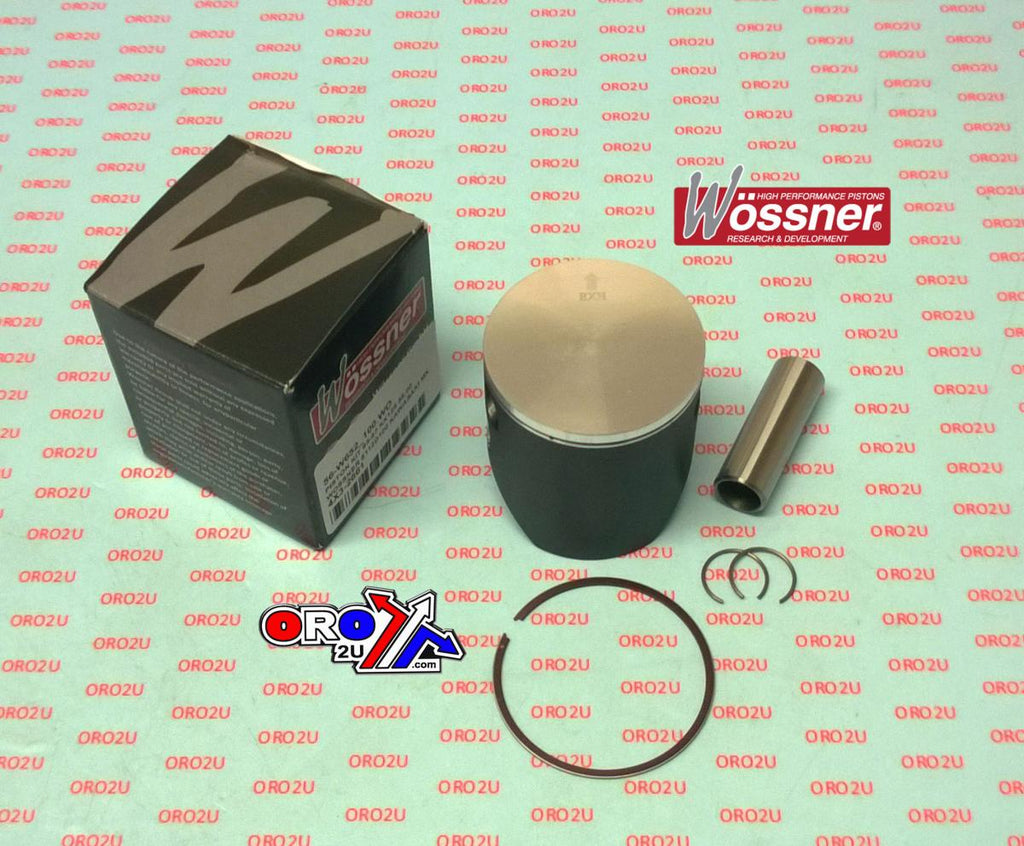

PISTON KIT 95-97 KX125 54.00 A, WOSSNER 8112DA KAWASAKI MX 13001-1429

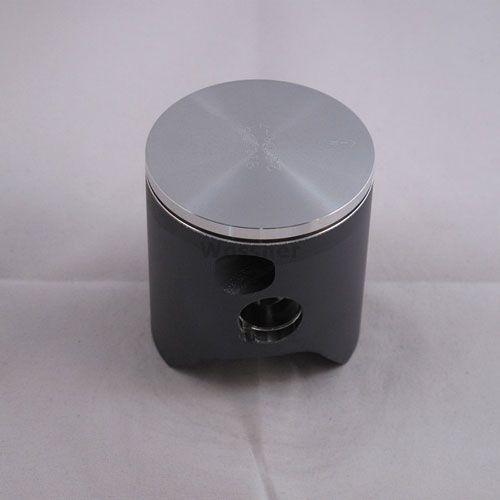

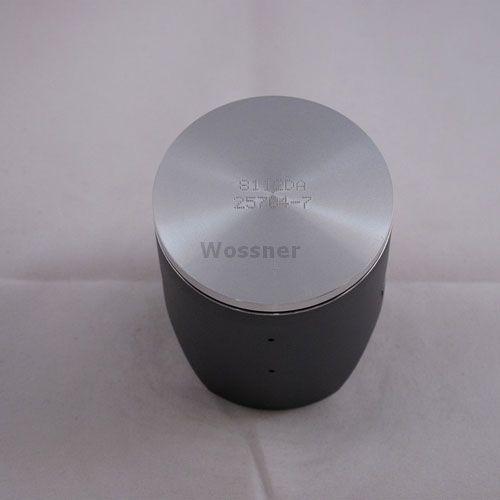

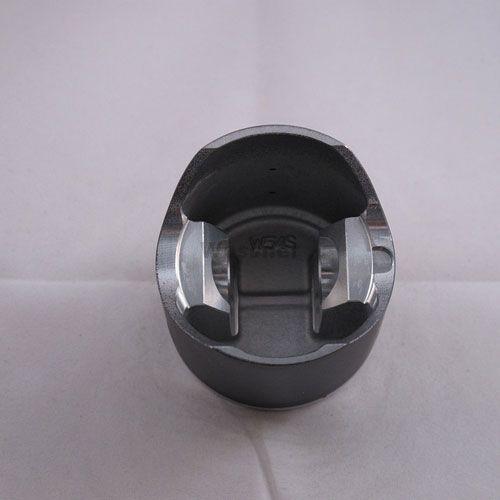

The Wossner 8112DA piston kit, with a 54.00mm standard bore, is engineered for Kawasaki KX125 models from 1995 to 1997. Manufactured in Germany, this forged piston is designed to withstand the demands of high-performance two-stroke engines. The elliptical shape ensures optimal expansion characteristics, reducing the risk of localised stress and piston collapse, while enhancing combustion chamber cooling.

Features

• Forged piston for high strength and durability

• Elliptical profile for even thrust load distribution and heat expansion control

• Designed to optimise heat transfer from combustion to cylinder wall

• Precision manufactured in Germany

Specifications

• Bore Size: 54.00 mm (Standard)

• Display Displacement: 125 cm³

• Stroke: 54.50 mm

• Piston Clearance: 0.06 mm

• Compression Height: 29.50 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

• 13001-1429

• 652M05400

Cross-Reference Wossner Part Numbers

• Piston Kit: 8112DA

• Lock: CW15

• Pin: WP032

• Ring Set: RSB5400

• Rod: 2038

• Internal Reference Part No.: 56-W652.A.WO

Vehicle Fitments

• Kawasaki KX125: 1995–1997
