PISTON KIT 95-03 TRX400 86.00, FORGED WOSSER 8599DA 13101-HM7-000
£129.33 GBP
Taxes included.

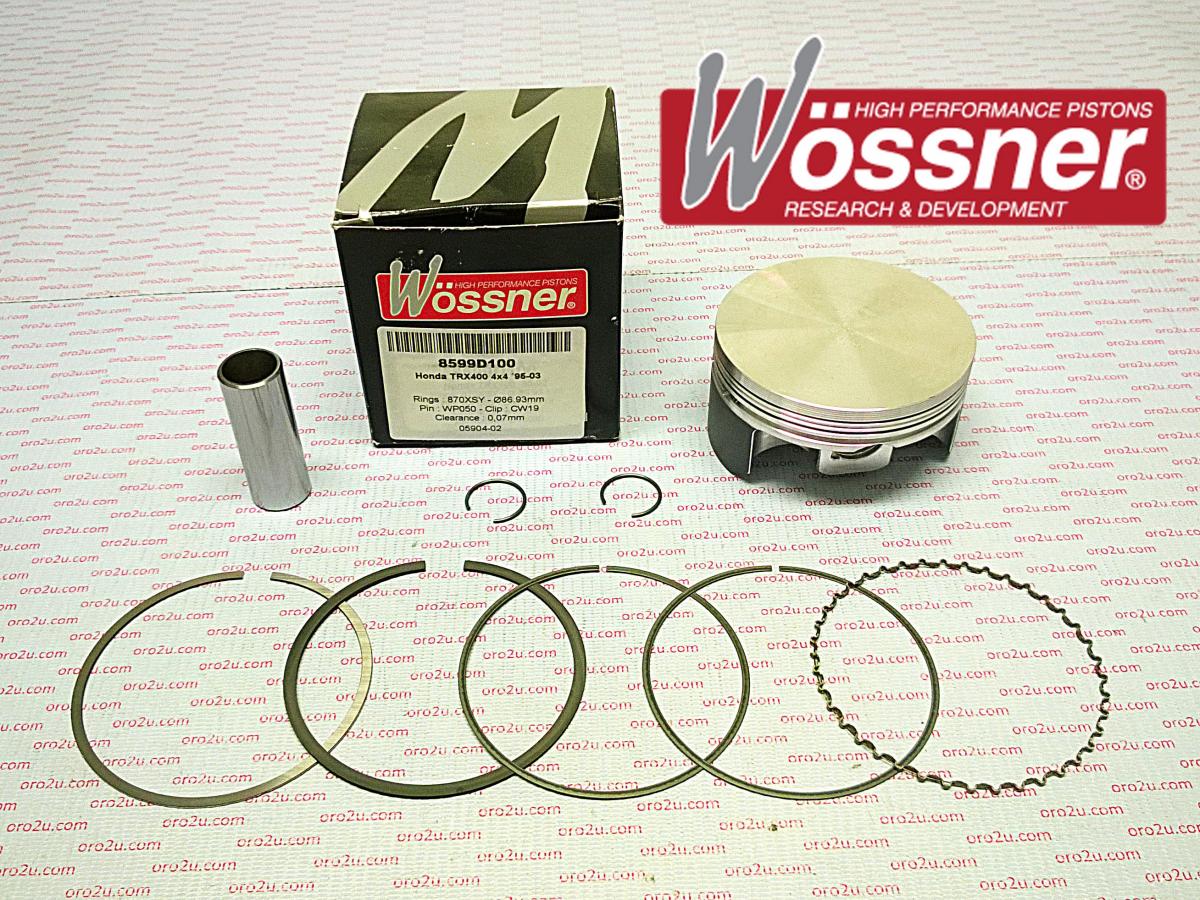

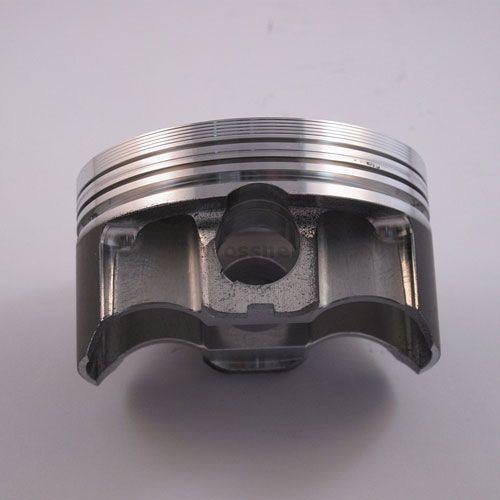

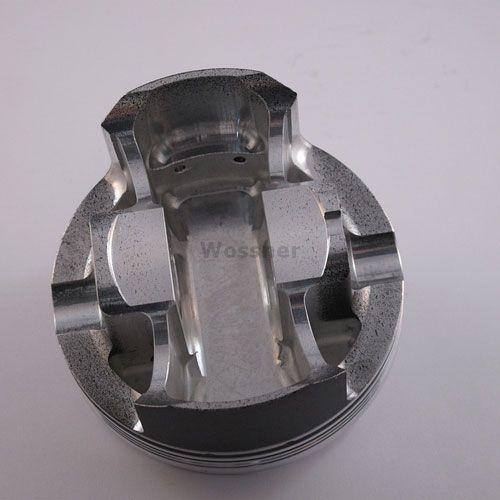

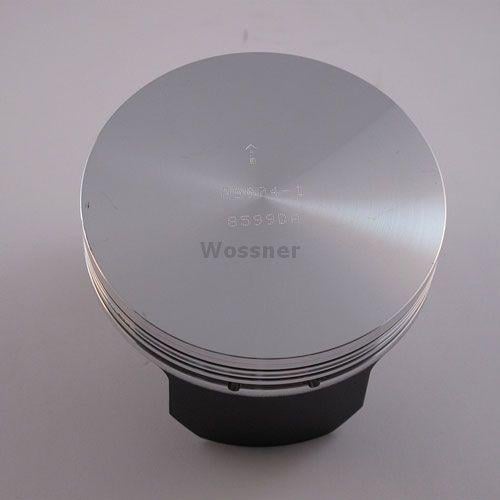

The Wossner 86mm Bore Piston Kit (Part No. 8599DA) is a high-performance forged piston designed for Honda TRX400 4x4 models from 1995 to 2003. Engineered for strength and durability, it optimizes heat transfer within the combustion chamber and features an elliptical design to ensure even load distribution, reducing localized pressure and preventing piston collapse. Manufactured in Germany, this piston maintains the OEM compression ratio for reliable engine performance.
Features
- High-strength forged piston construction
- Optimized heat transfer for improved combustion efficiency
- Elliptical design for even thrust load distribution
- Manufactured in Germany
Specifications
- Bore Size: 86mm
- Actual Bore Diameter: 85.93mm
- Compression Ratio: OEM
- Displacement: 394cc
- Stroke: 68.00mm
- Clearance: 0.07mm
- Dome Volume: +0.00cm³
- Compression Height: 25.00mm
Cross-Reference OEM Part Numbers
- Lock P/N: CW19
- Pin P/N: WP050
- Ring Set P/N: 860XSY
- OEM Part Numbers: 13101-HM7-000, 4669M08600, 01.1485.000
Vehicle Fitments
- Honda TRX400 4x4 (1995-2003)
